108
Tilt Mount Unit: PDK-5011
Opening
Closing
Hexagon wrench
Measuring the opening distance
X provides an approximate angle
value.
X
When it is in this state, do not turn
the adjustment screw any further in
the closing direction.
B Criterion when its angle is 25°
When it is in this state, do not turn the
adjustment screw any further in the
opening direction.
Resin plate
A Criterion for the vertical location
Gap
disappears
Notch
End face of the plate
Matched in both
directions
Wall side hardware
Resin plate
Back of the
Plasma Display
A
B

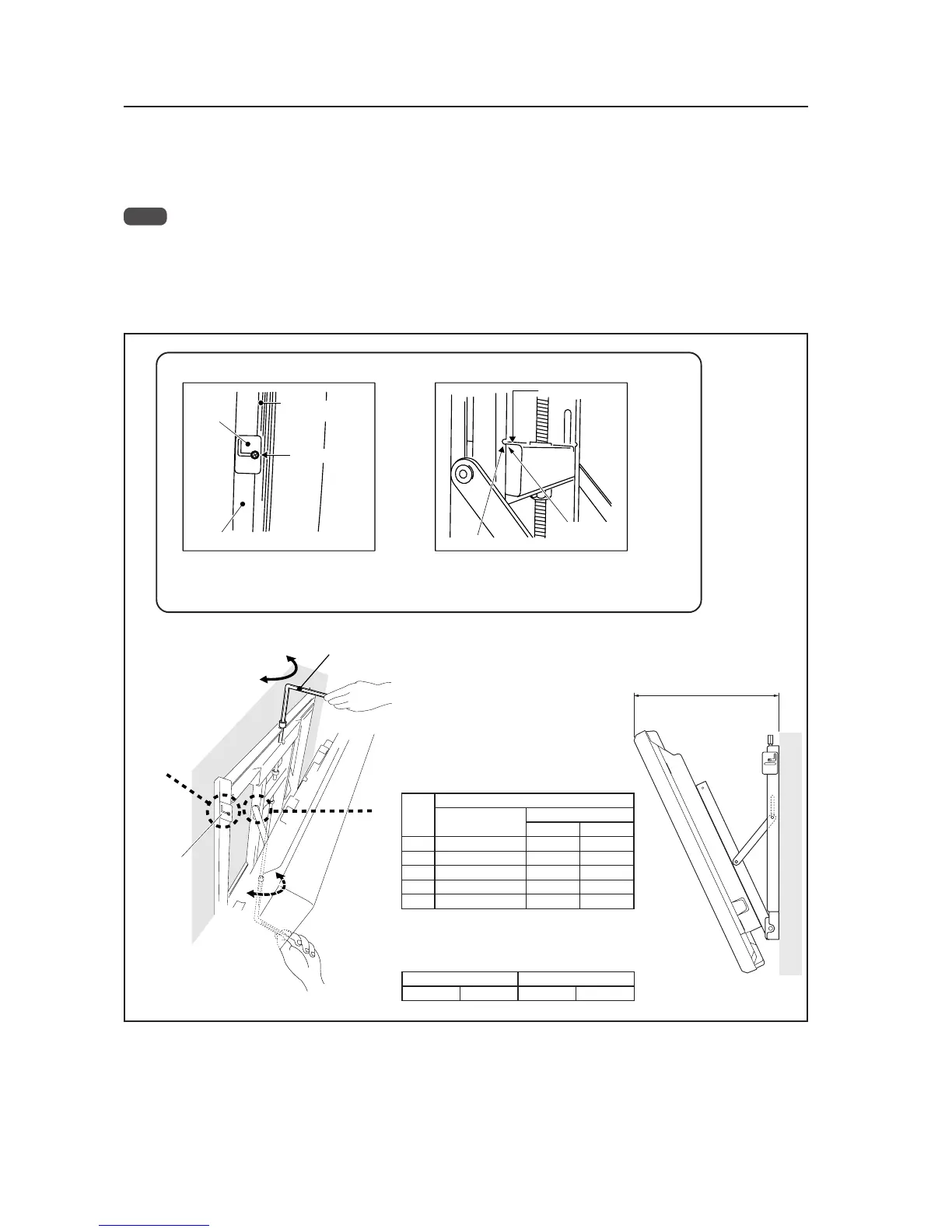

4.6.4 Angle setup
This installation hardware allows the display to be tilted down freely at any angle from the vertical to 25°.
This adjustment must always be done by two people.
Adjust the angle by rotating the screws at the center top and center bottom of the wall side hardware (left or right).
Note
• It is difficult turn the center-bottom screw while increasing the angle. When this happens, adjust the angle by turning
the top-center screw.
• Turn the screws very carefully to avoid damaging the wall.
• When a screw becomes tight at either end of the adjustment range, do not turn the adjustment screw any. Doing so
applies excessive force, deforming the screw.
[507CMX : 427CMX]
* Illustration depicts
PDP-507CMX model.
Angle
X
Normal holes of
PDP-507CMX model
PDP-427CMX model
Normal holes Upper holes
5° 199 mm 191 mm 194 mm
10° 253 mm 240 mm 246 mm
15° 305 mm 287 mm 296 mm
20° 355 mm 333 mm 345 mm
25° 403 mm 376 mm 391 mm
Standard hole Upper holes
16° or more visible 23° or more visible
Tilt Angle Criteria
Angle of incline and appearance of the screw for
angle adjustment from a horizontal position on
the front (PDP-427CMX only)
