109
Tilt Mount Unit: PDK-5011
4.6.5 Measure to prevent shakiness when the unit is installed at a slight tilt
With this installation hardware, for structural reasons, the
top of the panel may be shaky when installed at a 5° angle
from the vertical position.
If this shakiness is a problem, reduce it by following the
instructions provided below.

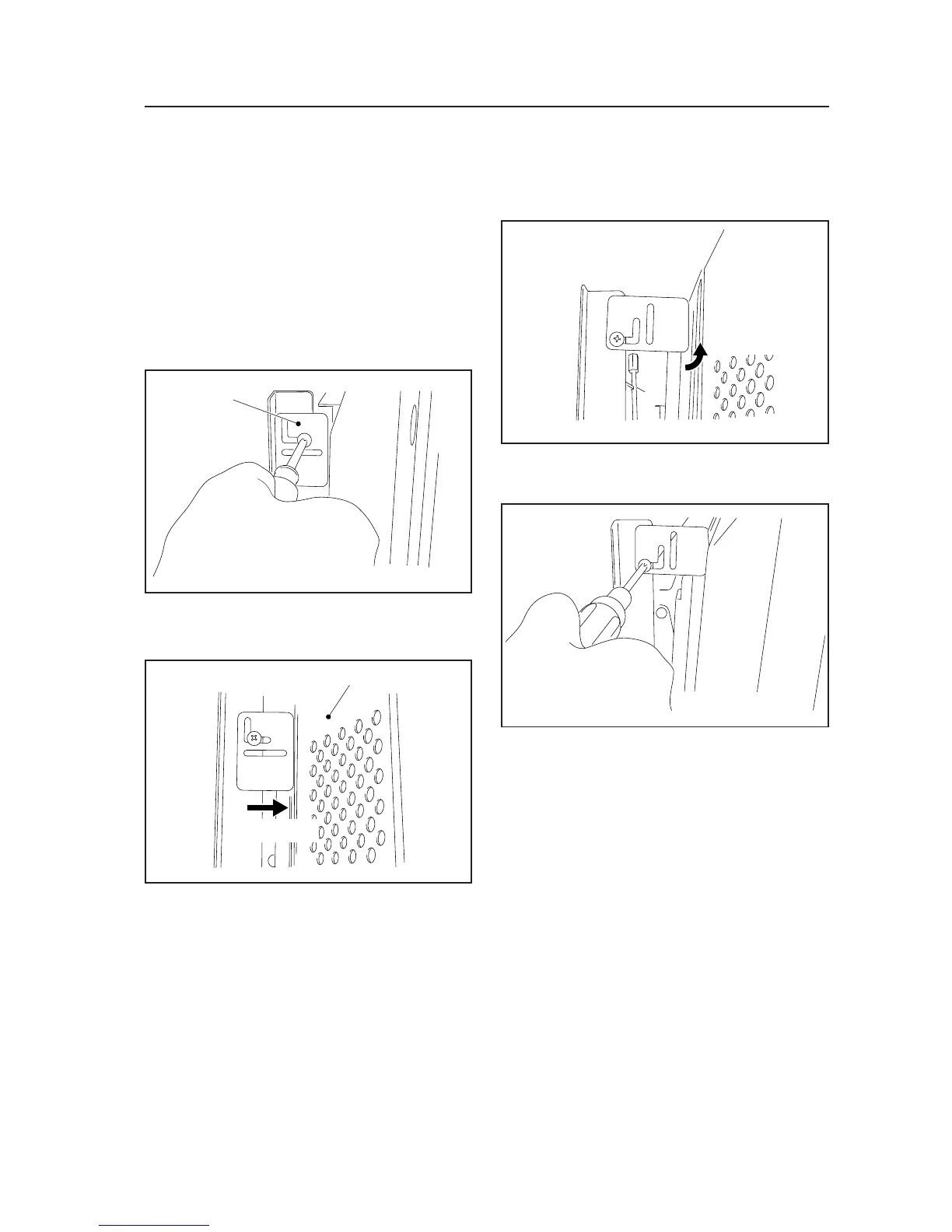

1 Use a Philips driver (+) to loosen (left, right) the
installation screws on the resin plate used as a guideline
when installing it vertically (left, right). Allow the resin
plate to move freely.
2 Slide the resin plate (left, right) forward along the slit
to the rear cover of the Plasma Display.
3 If, when it is moved only forward, the distance is too
short, rotate the resin plate to use the longer side.
4 After setting the resin plate (left, right) in position,
retighten the screws that were loosened at step (1).
Resin plate
Rear cover of the Plasma Display
Slide forward
Rotated
You can use above method to reduce the shakiness that
occurs when the panel is installed at a slight angle.
[507CMX : 427CMX]
