Ceiling Mount Unit: PDK-5012
4.8.4 Attach the Plasma Display

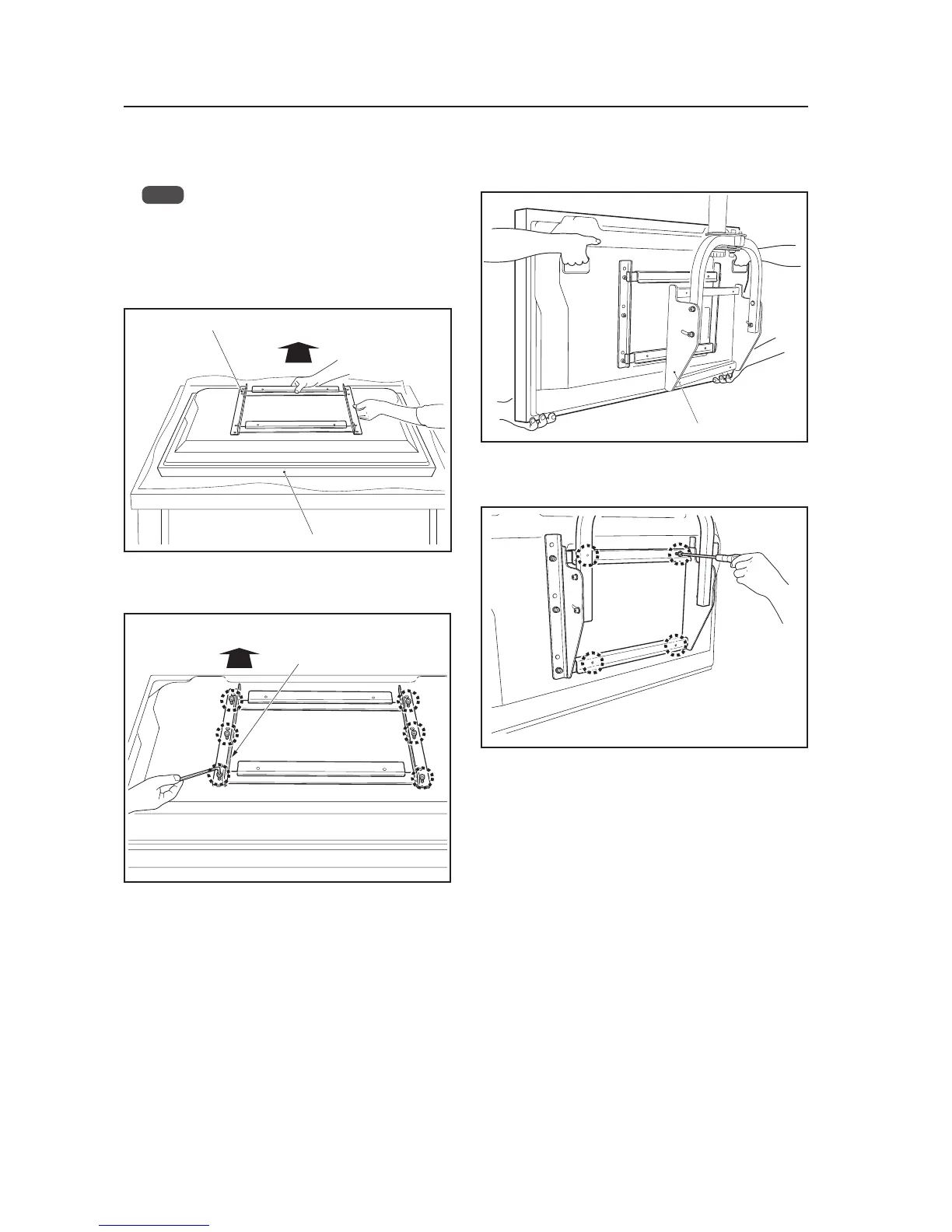

1 Attach the PDP bracket to the Plasma Display.
Note
• Place a sheet or protective cover to protect the dis-
play from scratches or damage.
• Be sure to work on top of a flat table or similar sur-
face.
• Be careful that the PDP bracket is not upside down.
3 Attach the Plasma Display to the hanger.
4 Screw the Plasma Display to the hanger (at four
locations).
PDP bracket
Top side of Plasma Display
Hanger
Plasma Display
Top side of Plasma Display
2 Fix the Plasma Display to the PDP bracket with screws
(six locations).
Hexagonal bolts
([50] display, holes at six
locations)
[507CMX : 427CMX]
To Next Page
