222
Integrator Mode
1 AUDIO INPUT
(INPUT1)
Stereo mini jack
2 AUDIO INPUT
(INPUT2)
Stereo mini jack
3 AUDIO INPUT
(INPUT3/4)
★1
(INPUT3)
★2
Pin jack
4 AUDIO INPUT
(INPUT4)
★2
Pin jack
5 AUDIO INPUT
(INPUT5)
★
Pin jack
INPUT1
SUB VOLUME
INPUT2
SUB VOLUME
INPUT3
SUB VOLUME
INPUT4
SUB VOLUME
INPUT5
SUB VOLUME
INPUT
SELECTOR
POWER
AMPLIFIER
VOLUME
★ : Applicable only when a PDA-5003/PDA-5004 is installed.
★1: Applicable only when a PDA-5003 is installed.
★2: Applicable only when a PDA-5004 is installed.

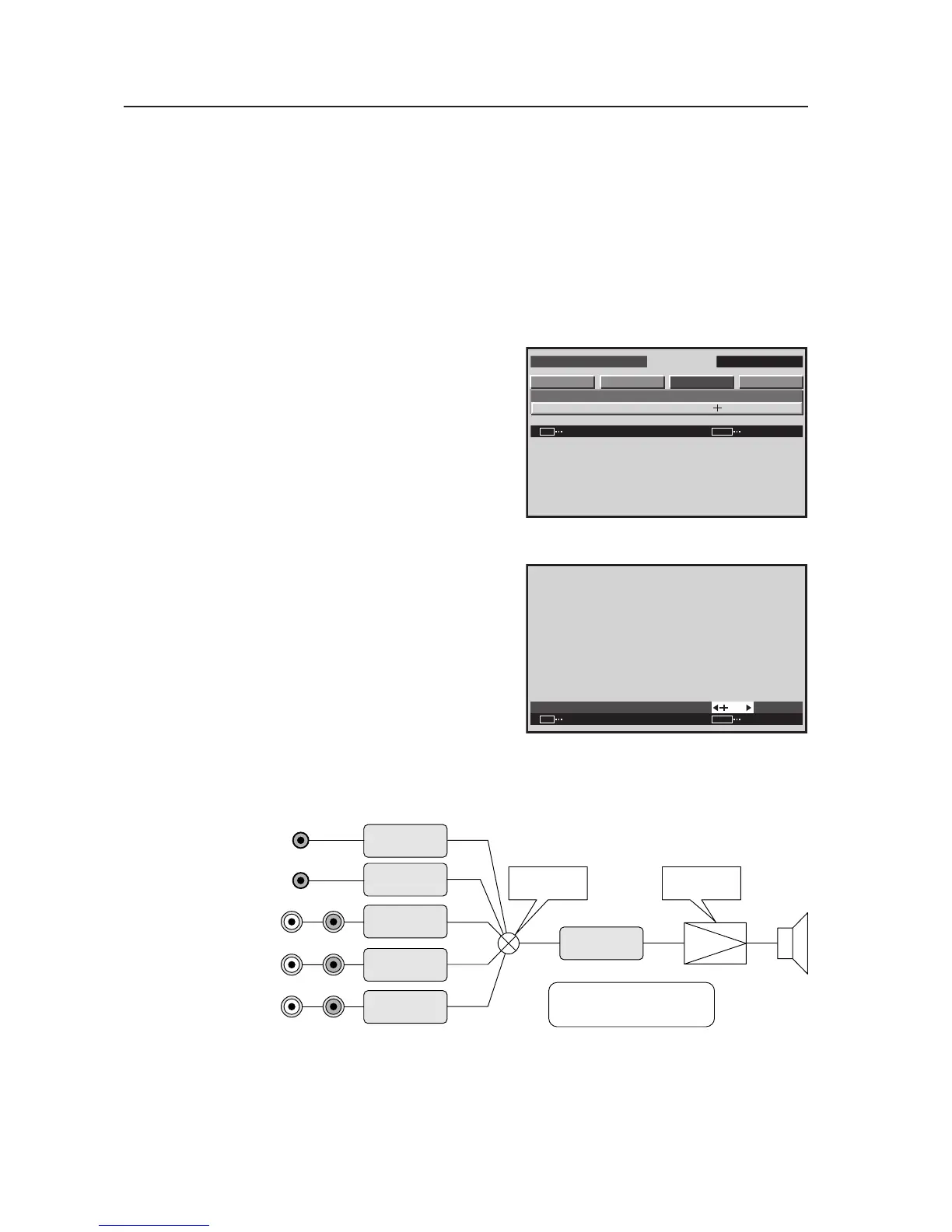

Audio block diagram
(concept diagram)
7) SUB VOLUME Setting
This item is for adjusting the audio input level for each input.
This is useful when adjusting the level between different sources, for example a DVD player and a PC.
After muting the audio before hand, enter the integrator mode and perform the adjustment.
1 Enter the integrator mode.
(Refer to section 5.4.1, “About the Integrator Mode” (pg. 214).)
2 Select ‘SETUP’.
3 Place the cursor on ‘SUB VOLUME’ then press the [SET]
button.
4 Perform the adjustment.
Use the [2/3] buttons on the remote control or the main-
control panel to change settings.
Press the [SET] button to return to screen 3.
<Adjustable Range>
Each item: 0 to 20 (initial value: 20)
<Adjustment Order>
Performing adjustment in the following order is effective.
1. VOLUME (normal-operation mode): Raise the volume to the actual operating condition.
2. SUB VOLUME (integrator mode): Adjust the input with high volume to match the input with low volume.
INTEGRATOR INPUT1
ENTER
SCREEN SETUP OPTION
BRT. ENHANCE
SUB VOLUME
:
SET
EXIT
MENU
:
OFF
20
Screen 3
SUB VOLUME
:
SET
SET EXIT
MENU
20
Screen 4
