Menu Mode[Applicable only when a PDA-5003/PDA-5004 is installed]

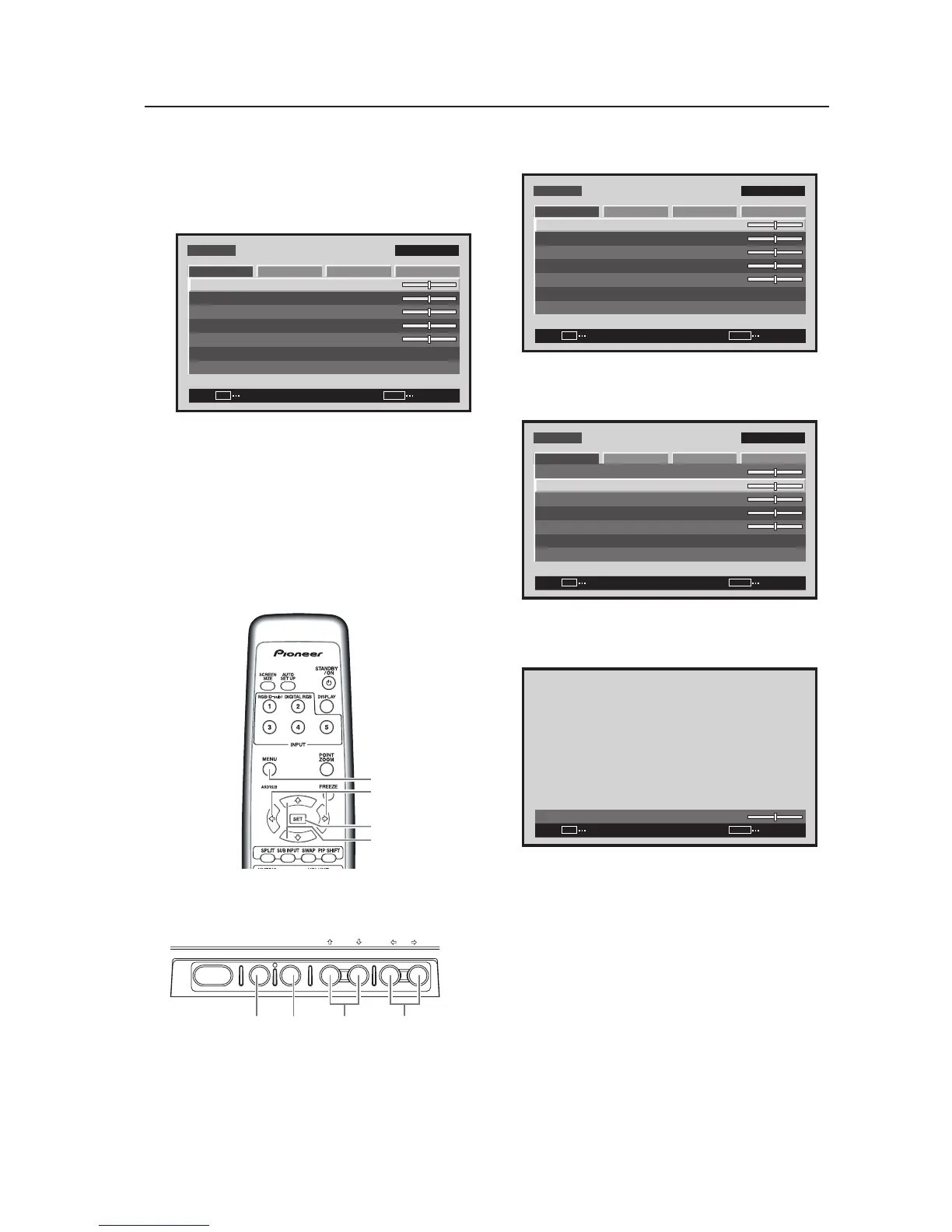

5.3.6 Example of a Menu Mode Operation
(Applicable only when a PDA-5003/PDA-
5004 is installed.)
The basic operation in the menu mode is explained using
brightness adjustment as an example.
MENU
5/∞
SET
2/3
Remote control unit
STANDBY/ON MENU
DISPLAY
/ SET
– VOL +INPUT SCREEN SIZE

2/3MENU SET 5/∞
Main-control panel
5.3.5 Concerning the display of the OSD of each
item (Applicable only when a PDA-5003/
PDA-5004 is installed.)
Example of Menu Display:
MENU INPUT1
ENTER
SET
EXIT
MENU
SCREEN SETUP OPTION
: 0
: 0
:
0
: 0
CONTRAST : 0
BRIGHTNESS
COLOR
TINT
SHARPNESS
PICTURE RESET
Images shown here may differ from the actual
display image.
1 Press the MENU button to display the menu
screen.
MENU INPUT1
ENTER
SET
EXIT
MENU
SCREEN SETUP OPTION
: 0
: 0
:
0
: 0
CONTRAST : 0
BRIGHTNESS
COLOR
TINT
SHARPNESS
PICTURE RESET
2 Use the 5/∞ buttons to select the adjustment
item then press the SET button.
MENU INPUT1
ENTER
SET
EXIT
MENU
SCREEN SETUP OPTION
: 0
:
0
: 0
CONTRAST : 0
COLOR
TINT
SHARPNESS
PICTURE RESET
: 0
BRIGHTNESS
3 Use the 2/3 buttons to adjust the picture
quality as desired.
: 0
BRIGHTNESS
SET
SET
EXIT
MENU
5
∞
It is possible to move to other adjustment items
with the 5/∞ buttons.
4 Press the SET button.
Pressing the SET button writes the value into the
memory and returns the display to the step 2
screen.
5 When the setup is finished, press the MENU
button to exit the menu screen.
