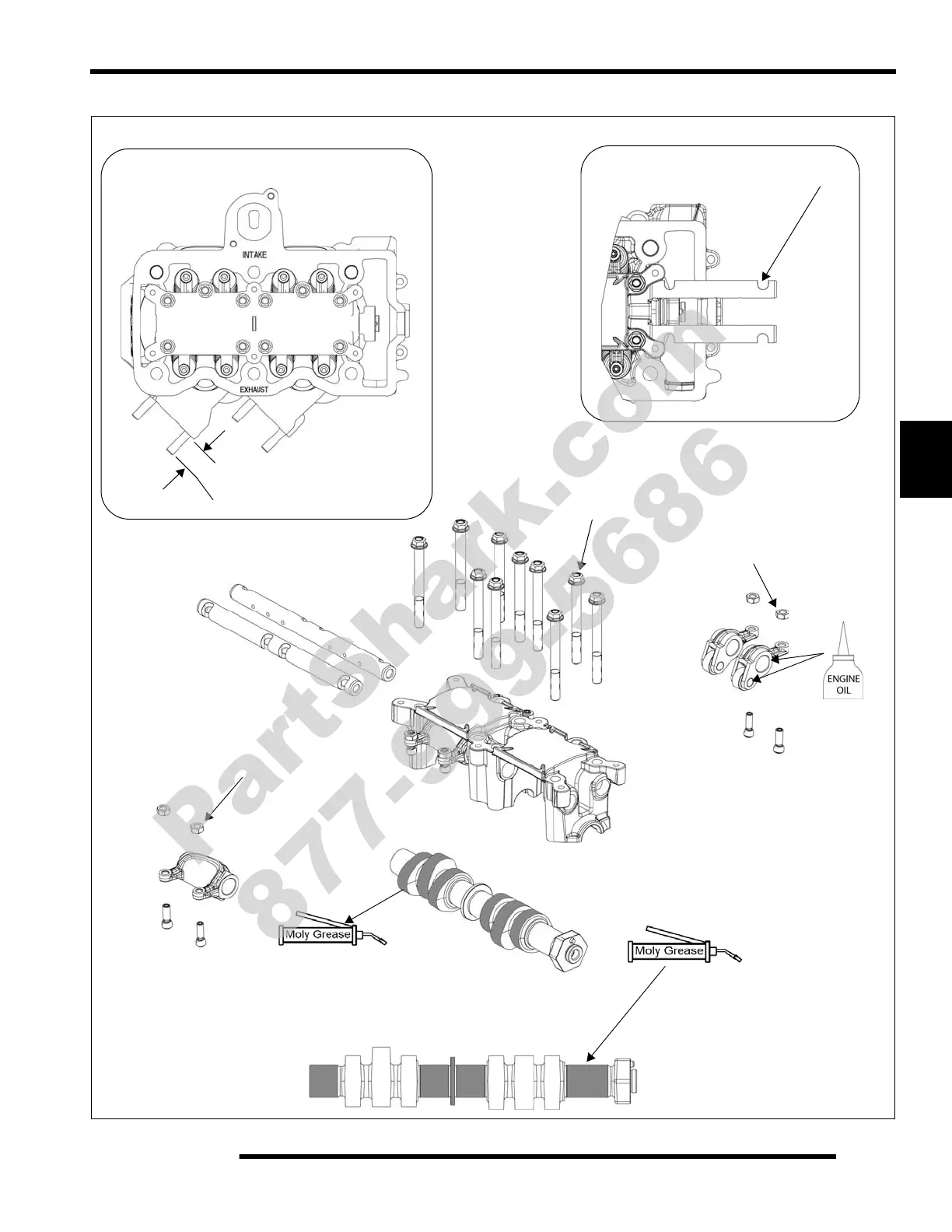

Camshaft Carrier / Camshaft / Rocker Arm
3. Snug all bolts
Torque Pattern
26 mm +/- 1 mm
4. Torque to 13 lb-ft. (18 Nm)
Slots must be vertical and face OUT
89.0 lb-in (10 Nm)
12
34
5
6
7
8
9
10
following torque pattern
1. Crankshaft at TDC MAG cylinder
2. Camshaft pin at 10:00 position
89.0 lb-in (10 Nm)
