12.3
ELECTRICAL
12
GENERAL INFORMATION
Special Tools
Electrical Service Notes
Keep the following notes in mind when diagnosing an electrical
problem.
• Refer to wiring diagram for stator and electrical
component resistance specifications.
• When measuring resistance of a component that has a
low resistance value (under 10 Ohms), remember to
subtract meter lead resistance from the reading.
Connect the leads together and record the resistance.
The resistance of the component is equal to tested value
minus the lead resistance.
• Become familiar with the operation of your meter. Be
sure leads are in the proper jack for the test being
performed (i.e. 10A jack for current readings). Refer to
the Owner’s Manual included with your meter for more
information.
• Voltage, amperage, and resistance values included in
this manual are obtained with a Flukeâ„¢ 77 Digital
Multimeter (PV-43568). This meter is acceptable for
use when diagnosing electrical problems. Readings
obtained with other meters may differ.
• Pay attention to the prefix on the multimeter reading (K,
M, etc.) and the position of the decimal point.
• For resistance readings, isolate the component to be
tested. Disconnect it from the wiring harness or power
supply.

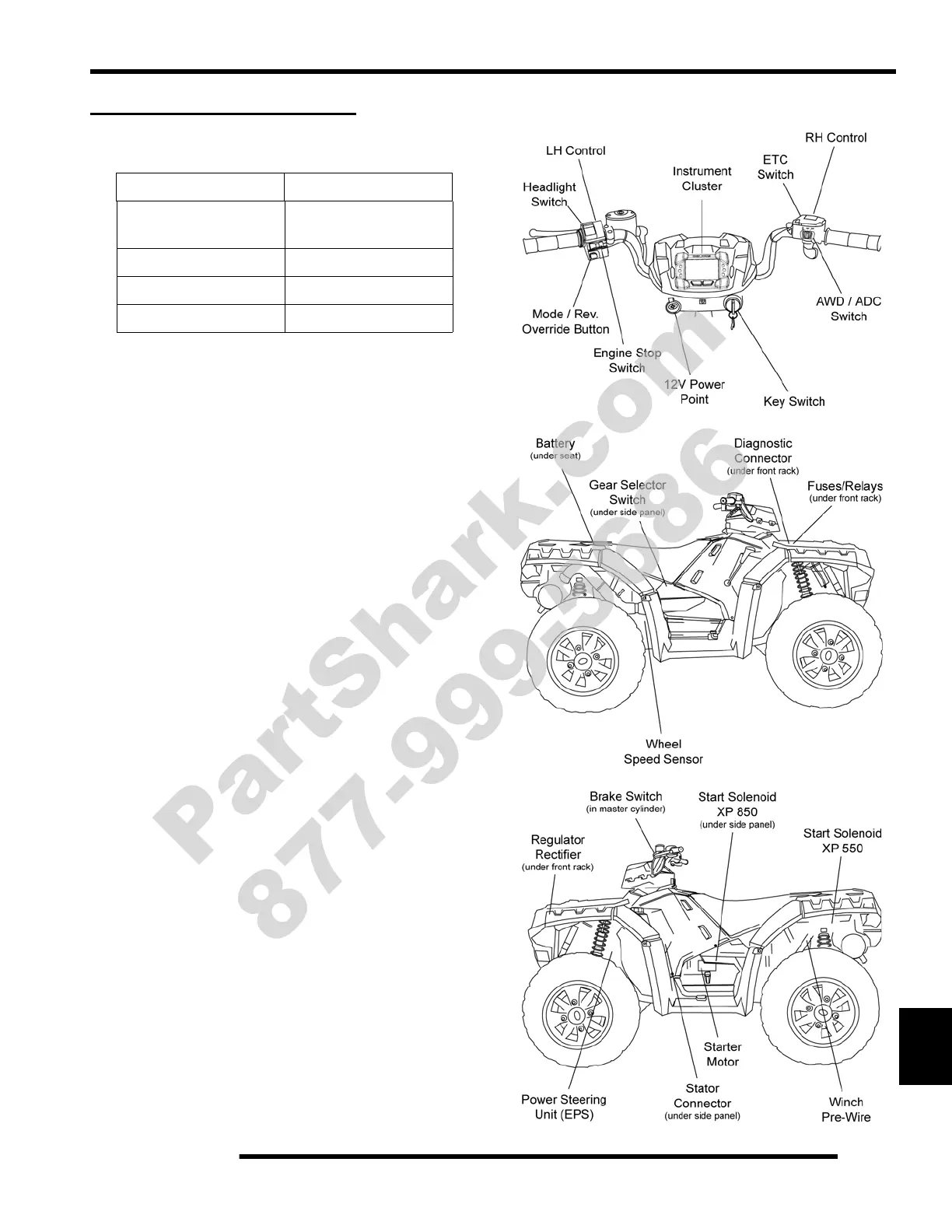

Component Locations
PART NUMBER TOOL DESCRIPTION
PV-43568
Flukeâ„¢77 Digital
Multimeter
2870836 Battery Hydrometer
2870630 Timing Light
PA-49466 Test Relay
