10.12
STEERING / SUSPENSION

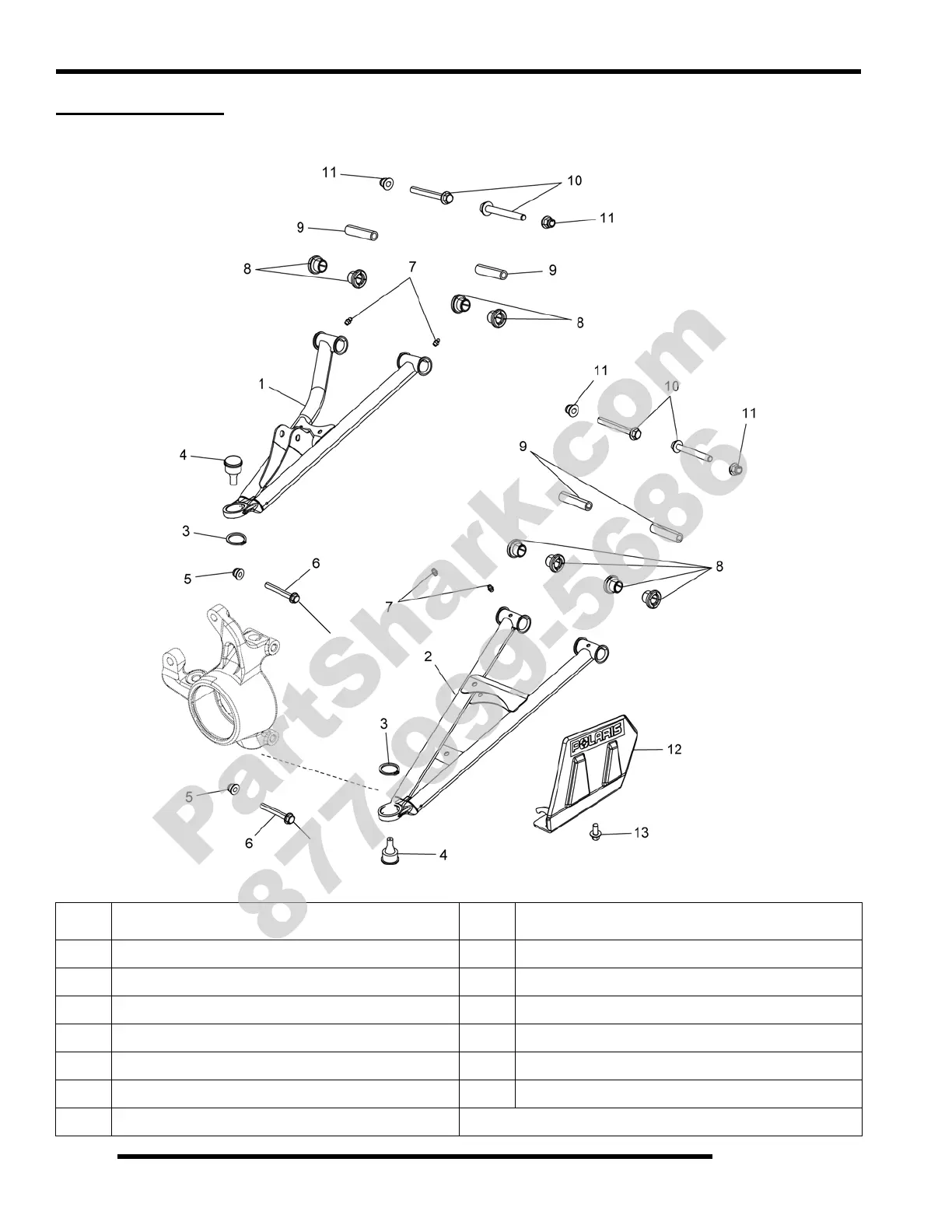

FRONT A-ARMS
Exploded View
REF. DESCRIPTION REF. DESCRIPTION
1 Upper A-arm 8 Bushing
2 Lower A-arm 9 Pivot Shaft
3 Retaining Ring 10 Bolt
4 Ball Joint 11 Nut
5 Nut 12 CV Shield
6 Bolt 13 Screw
7 Grease Fitting
40 ft. lbs.
(54 Nm)
21 ft. lbs.
(28 Nm)
40 ft. lbs.
(54 Nm)
21 ft. lbs.
(28 Nm)
