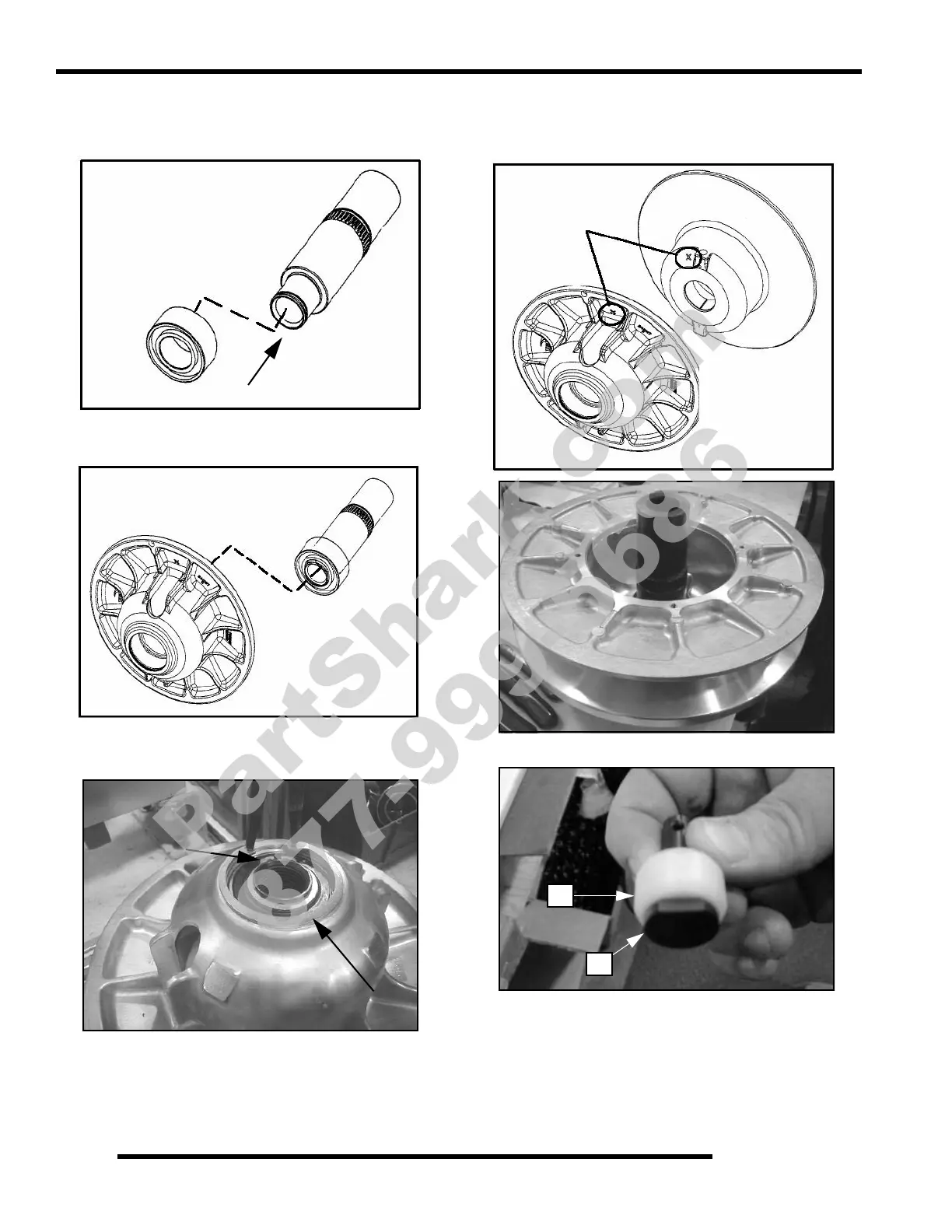

CLUTCHING (PVT)
Clutch Assembly
1. Install a new bearing onto the output shaft using a press.
2. Install the shaft/bearing into the outer sheave.
3. Install the small and large retaining rings into the outer
sheave above the bearing.
4. Line up the “X” on the moveable sheave with the “X” on
the stationary sheave or use the marks previously used. Put
the sheaves together.
5. Install the roller (A) onto the roller pin (B) on both sides.
Align X’s
A
B
