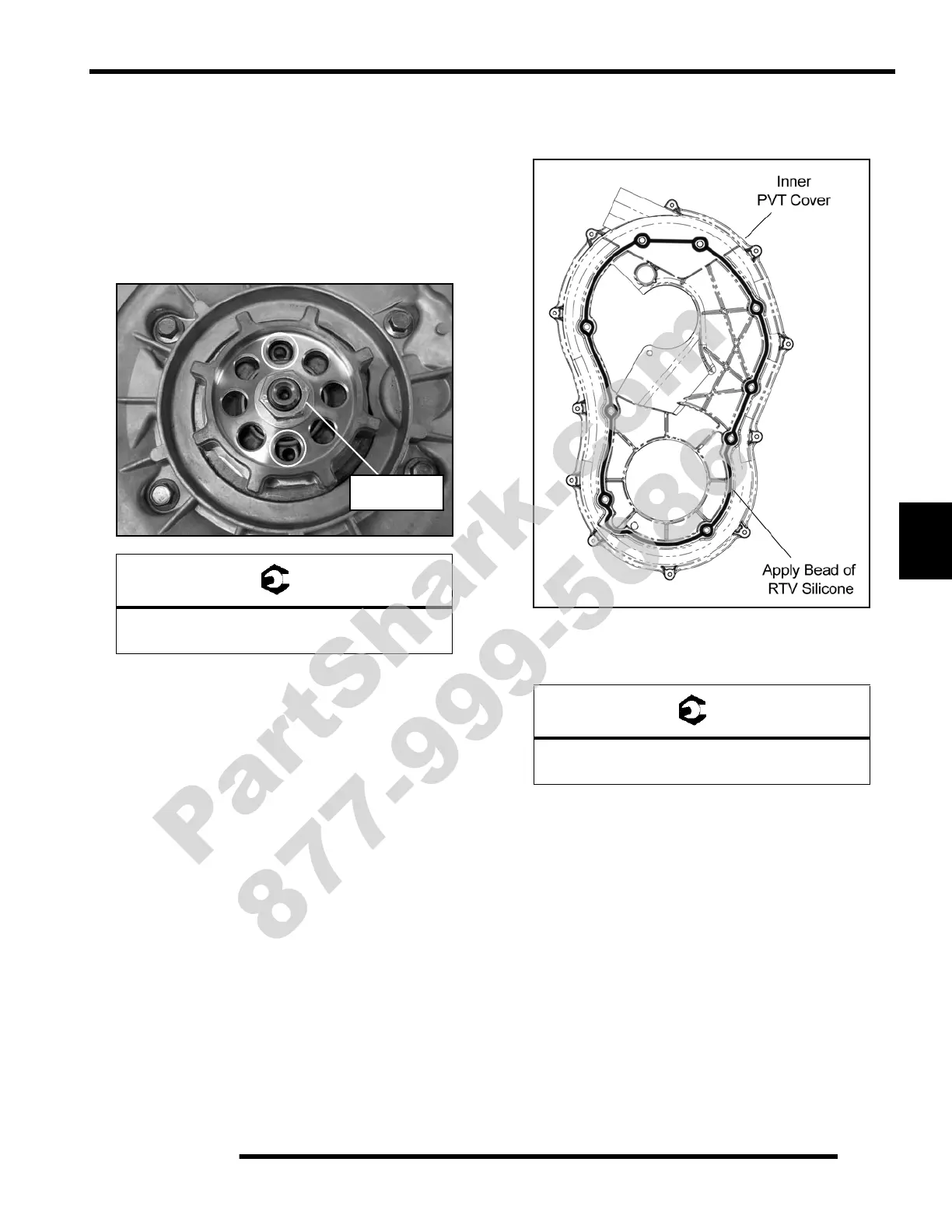

26. Install the transmission coupler and cone washer (dome
facing up).
27. Apply Loctite™ 2760 to the shaft threads and install the
coupler retaining nut.
28. Hold the transmission coupler using the (2) transmission
cover bolts that were left out. Thread the bolts into the
transmission case and torque the coupler nut to
specification.
29. Remove the (2) bolts holding the coupler and install them
in the transmission cover. Torque the bolts to specification
(see Step 24).
30. Remove the old silicone material from the inner PVT cover
and transmission case using a wire brush. Clean both
surfaces thoroughly in preparation for assembly
31. Inspect the inner PVT cover. Replace if cracked or
damaged. The mating surface must be clean to ensure
adhesion of new silicone sealant.
32. Be sure to “flame treat” the inner PVT cover prior to
applying silicone to ensure good adhesion. Pass the flame
of a propane torch back and forth quickly over the area
where the silicone is to be applied (2-3 inches from the
flame tip is recommended). Do not hold the torch too close
to the surface. Keep the torch moving to prevent damage.
33. Apply RTV silicone sealant to the outside edge of the inner
PVT cover to ensure a water tight fit between the cover and
the transmission.
34. Install the cover and torque the inner PVT cover screws to
specification.
35. Wipe away any excess silicone sealant.
36. Install the drive clutch, driven clutch and drive belt (see
Chapter 7 “PVT SYSTEM SERVICE - Disassembly”).
= T
Transmission Coupler Retaining Nut:
115-125 ft. lbs. (156-170 Nm)
115-125 ft. lbs.
(156-170 Nm)
= T
Inner PVT Cover Screws:
6-8 ft. lbs. (8-11 Nm)
