TRANSMISSION
8.6
TRANSMISSION
INSTALLA
TION

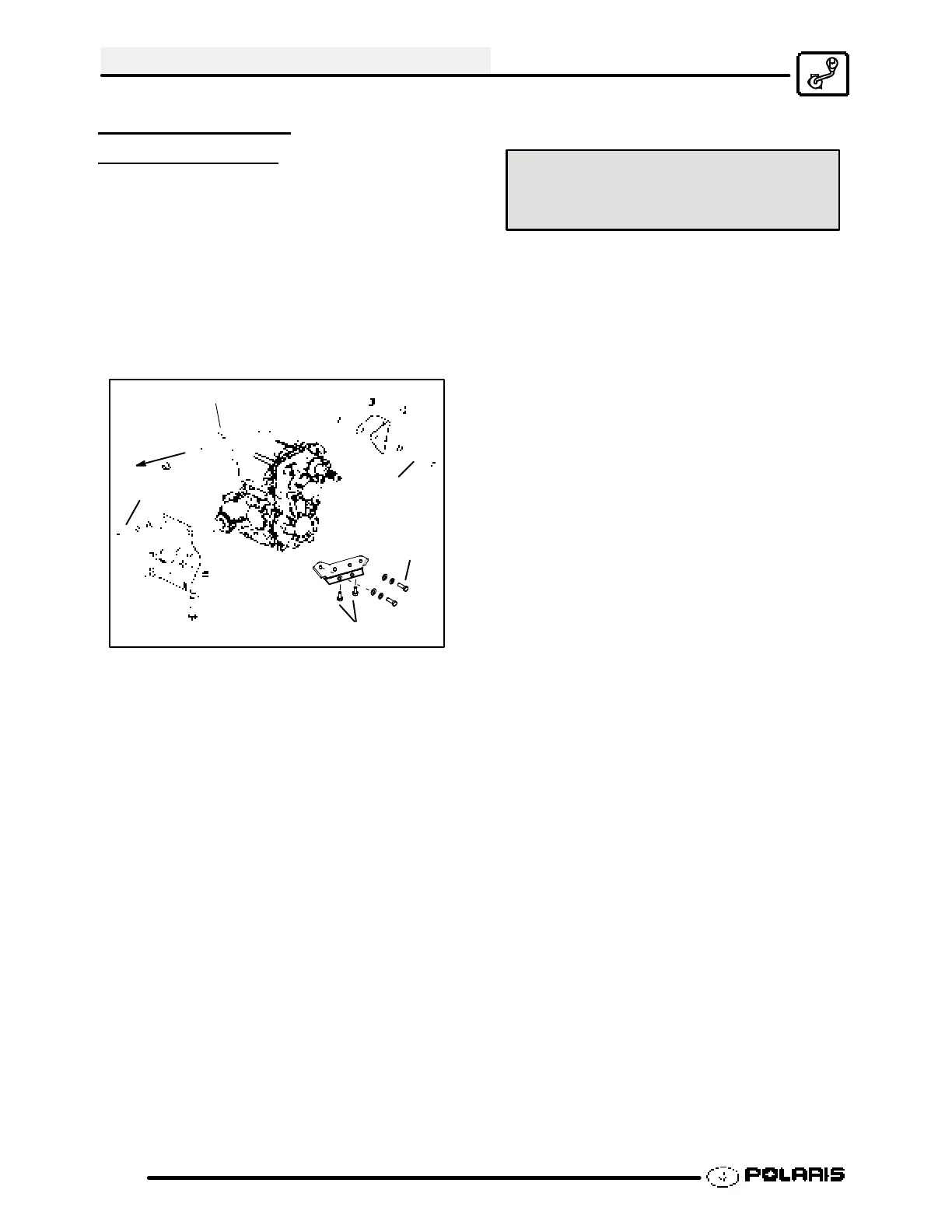

1. Install transmission from right side of vehicle.
2. Position transmission in frame.
3. Loosely install the front transmission to frame
bolts.
4. Loosely install the rear transmission to frame bolt.
5. Loosely install the three bottom transmission to
frame bolts.
6. T ighten mounting fasteners in order A-D as
shown.
Front
C
D
B
A
D
Transmission Mounting
Bolts Torque
25 ft. lbs. (34.5 Nm)
NOTE: Be sure to tighten the lower transmission
bolts first, this ensures that the transmission is tight
against the lower frame and helps to properly align the
transmission.
NOTE: Align clutches as outlined in Clutch Chapter
6.
7. Align the front input shaft to the front propshaft
yoke on the vehicle.
8. Align rear output shaft to rear propshaft yoke and
roll pin hole.
9. Slide rear output shaft and into propshaft yoke.
Drive the roll pin into the driveshaft yolk.
10. Reinstall the shift linkage rod, the air intake hose,
and the vent hose on top of the transmission.
