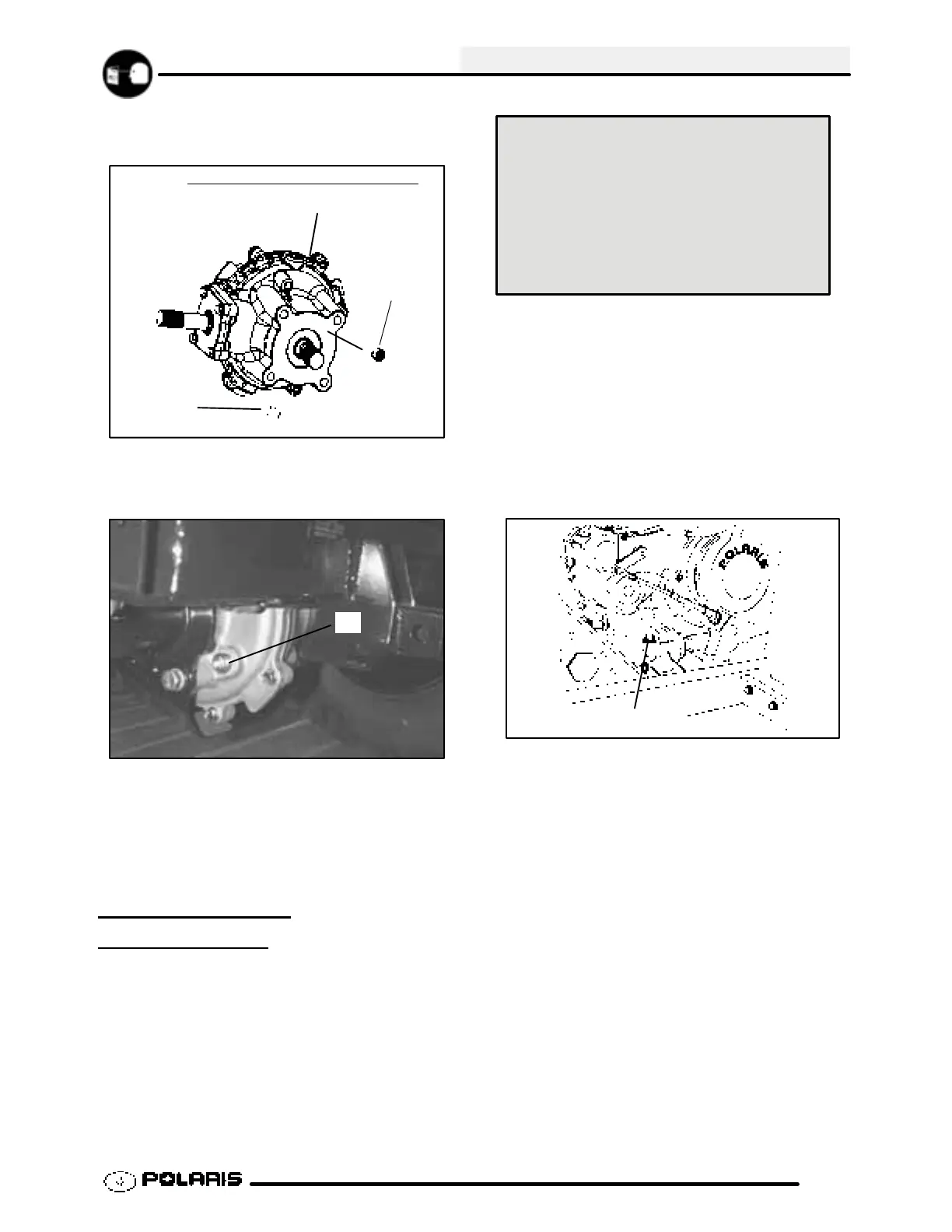

GENERAL INFORMATION
2.11
4. Clean and reinstall drain plug using a new sealing
washer .
Fill plug
Make sure vent is unobstructed
Drain plug
REAR GEARCASE (All
Models)
5. Remove fill plug (A).
A
6. Fill with the recommended fluid amount or fill to
the bottom of the threads of the fill plug hole.
7. Install fill plug. Check for leaks.
TRANSMISSION
LUBRICA
TION
NOTE: It is very important to follow a regular
transmission fluid check/change schedule. The
service manual of the RANGER recommends the
level be checked every twenty- five (25) hours of
operation, and changed once (1) a year .
Specified Lubricant:
Polaris Premium Synthetic Gearcase Lubricant
(PN 2 871477) (Gallon) (PN 2871478) (12 oz.)
Approximate Capacity at Change:
4x4 & 6x6: 13.50 oz. (400 ml.)
2x4: 27 oz. (800 ml.)
Drain Plug Torque: 14 ft. lbs. (19.4 Nm)
TRANSMISSION SPECIFICATIONS
The transmission lubricant level should be checked
and changed in accordance with the maintenance
schedule.
S Be sure vehicle is level before
proceeding.
S Check vent hose to be sure it is
routed properly and unobstructed.
To check the level:
1. Remove transmission plug and wipe clean.
T ransmission Fill Plug
ILL. 1
2. To check the level, use a light colored and non
absorbent measuring instrument (Exp: white zip
tie). The fluid level of the 2x4 models is 3/4” (19
mm) below the top thread of the fill plug. The 4x4
and 6x6 models should measure 1 1/2” (38 mm)
below the top thread of the fill plug. See ILL. 2 on
next page.
Simply modify the measuring instrument to the
specified distance. Dip the measuring instrument
into the gearcase, the fluid level should just touch
the bottom portion of the measuring instrument.
Fill or drain the transmission until the specified
quantities are reached. Sell ILL. 3 and ILL. 4.
