ENGINE
3.10
AA
HIGH .002 (.05mm)
HIGH .005 (.13mm)

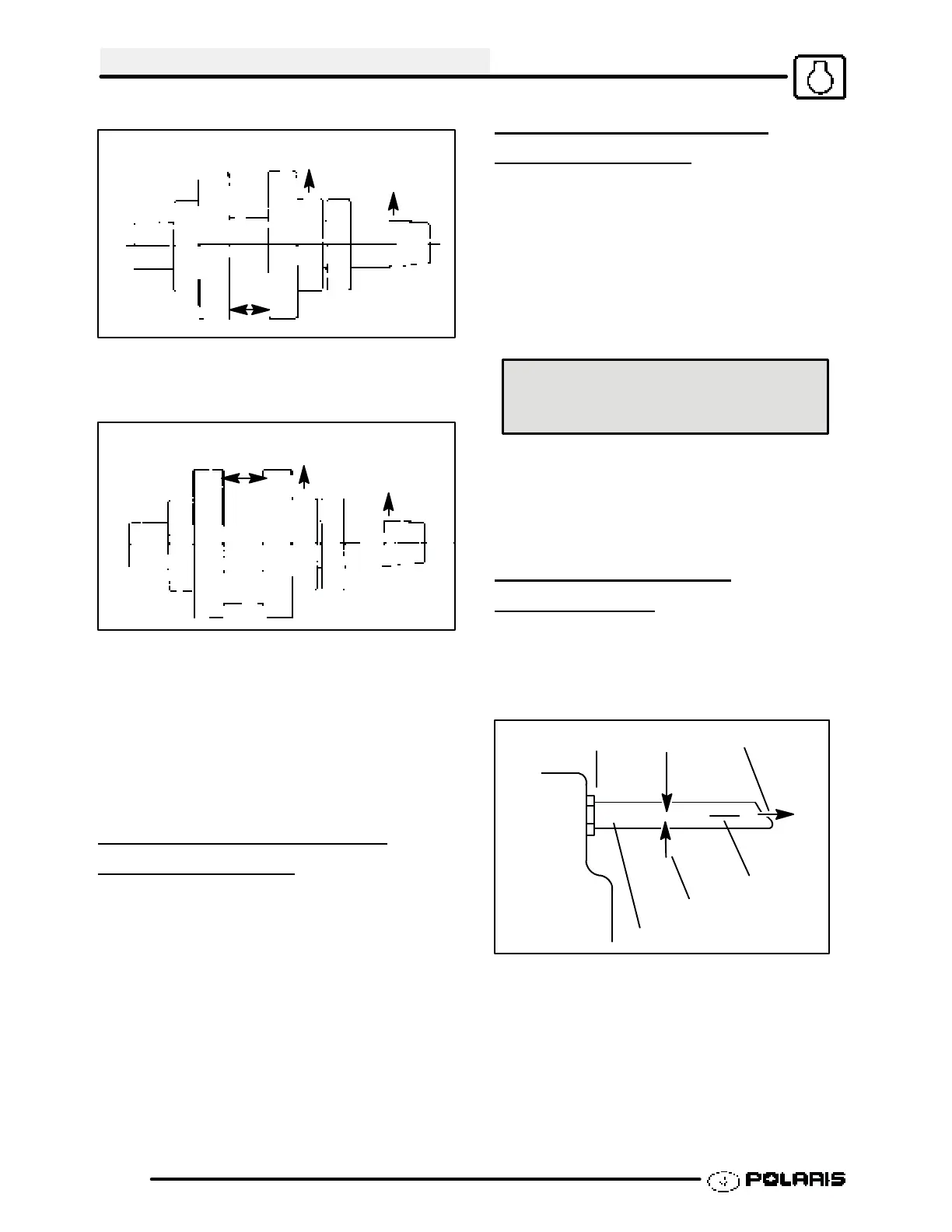

2. To correct a situation like the one shown in the
illustration at right, squeeze the crankshaft at
point A. (Use tool from alignment kit).
A
HIGH .002 (.05mm)
HIGH .005 (.13mm)
A
3. If the crank rod pin location is 180_ from the dial
indicator (opposite that shown above), it will be
necessary to spread the crankshaft at position A
as shown in the illustration at right. When
rebuilding and straightening a crankshaft, runout
must be as close to zero as possible.
NOTE: Maximum allowable runout is .0024I.
ENGINE LUBRICATION -
EH42PL/EH50PL
Oil Type Polaris Premium 4 Synthetic.............
(PN 2871281)
Capacity Approximately 2 U.S.............
Quarts (1.9 l)
Filter PN 3084963................
Filter Wrench (PV--43527)........
*Drain Plug / Screen Fitting 14 ft. lbs. (19 Nm) (If..
fitting is removed, follow oil pump priming procedure).
*Oil Pressure Specification 20 PSI @ 5500...
RPM, Polaris 0W--40 Synthetic (Engine Hot)
OIL PRESSURE TEST -
EH42PL/EH50PL
1. Remove blind plug on front left cylinder head.
2. Insert a 1/8 NPT oil pressure gauge adaptor into
the cylinder head and attach the gauge.
3. Start engine and allow it to reach operating
temperature, monitoring gauge indicator.
NOTE: Use Polaris Premium 4 Synthetic Engine
Lubricant (PN 2871281).
Oil Pressure at 5500 RPM (Engine Hot):
Standard: 20 PSI
Minimum: 12 PSI
OIL PUMP PRIMING
PROCEDURE
NOTE: This priming procedure must be
performed whenever the oil hose connection
between the oil tank and pump inlet has been
disconnected.
Slit
Oil Tank
Vent Hose
To Air Box
Pinch Off
2I
Approx.
1. Clamp or pinch off vent line approximately 2I
from oil tank to avoid the end of oil tank vent fitting,
and the vent line’s pressure relief slit
2. Run engine for 45-60 seconds.
3. Remove the vent line clamp. Note: If the line is
bled properly you should hear air release, if you
do not hear air the line has not bled. The oil pump
will now be properly primed and ready for field
operation.
