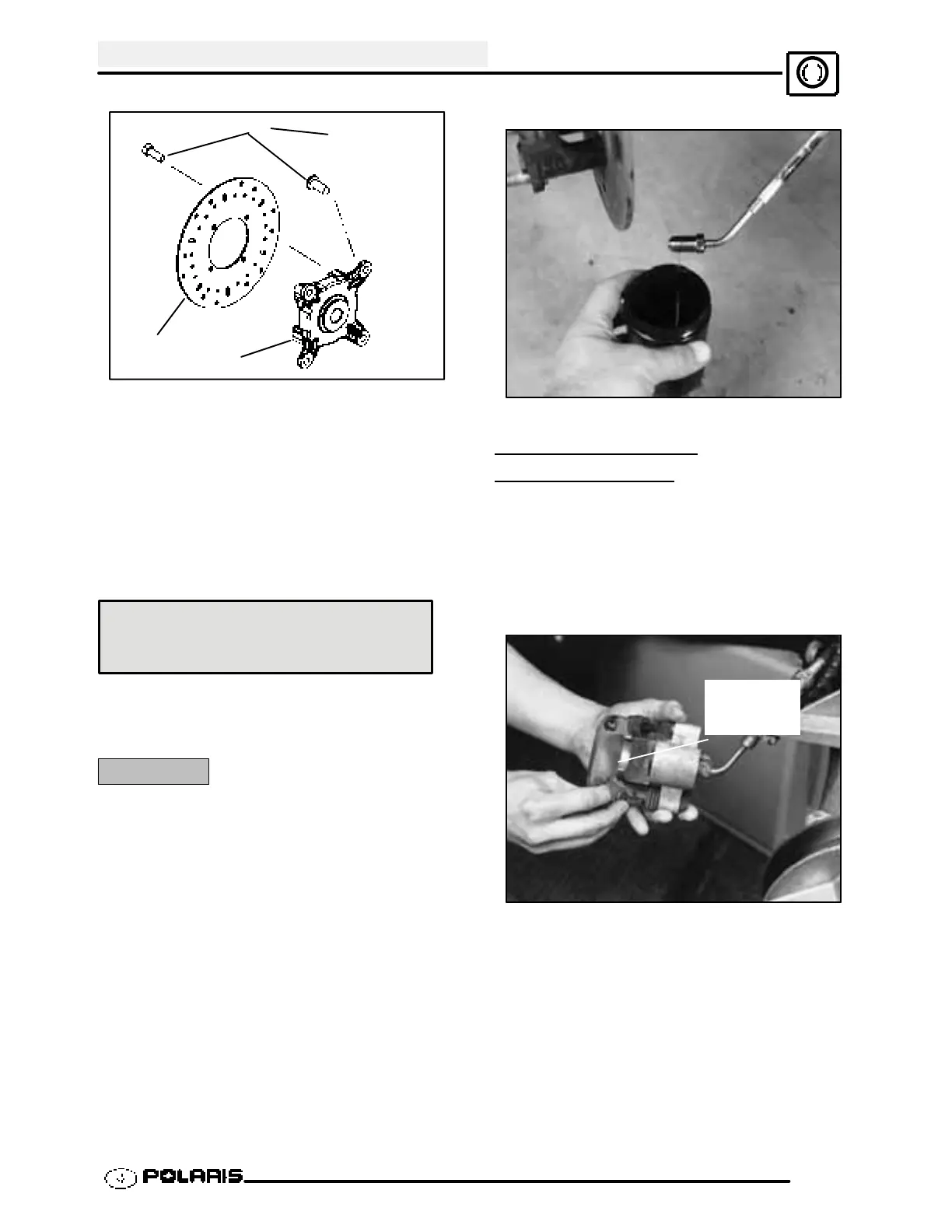

BRAKES
9.13
Disc
Hub
Bolts
18 ft. lbs.
(25 Nm)
2. Clean mating surface of disc and hub.
3. Install disc on hub.
4. Install new bolts and tighten to specified torque.
CAUTION: Always use new brake disc mounting
bolts. The bolts have a pre-applied locking agent
which is des t roy ed upon rem oval.
Front Brake Disc Mounting Bolt Torque:
18 ft. lbs. (25 Nm)
Front Caliper Removal
CAUTION:
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur if machine tips or
falls.
1. Remove brake pads. See Page 9.10--9.11.
2. Using a line wrench, loosen and remove brake
line to caliper. Place a container under caliper to
catch fluid draining from brake line.
3. Remove brake caliper and drain fluid into
container.
FRONT CALIPER
DISASSEMBL
Y
1. Remove brake pad adjuster screw.
2. Push upper pad retainer pin inward and slip brake
pads past edge.
3. Remove mounting bracket, pin assembly and
dust boot.
Remove
Mounting
Bracket
4. Remove piston, dust seal, and piston seal from
the caliper body.
To Next Page
