BRAKES
9.10

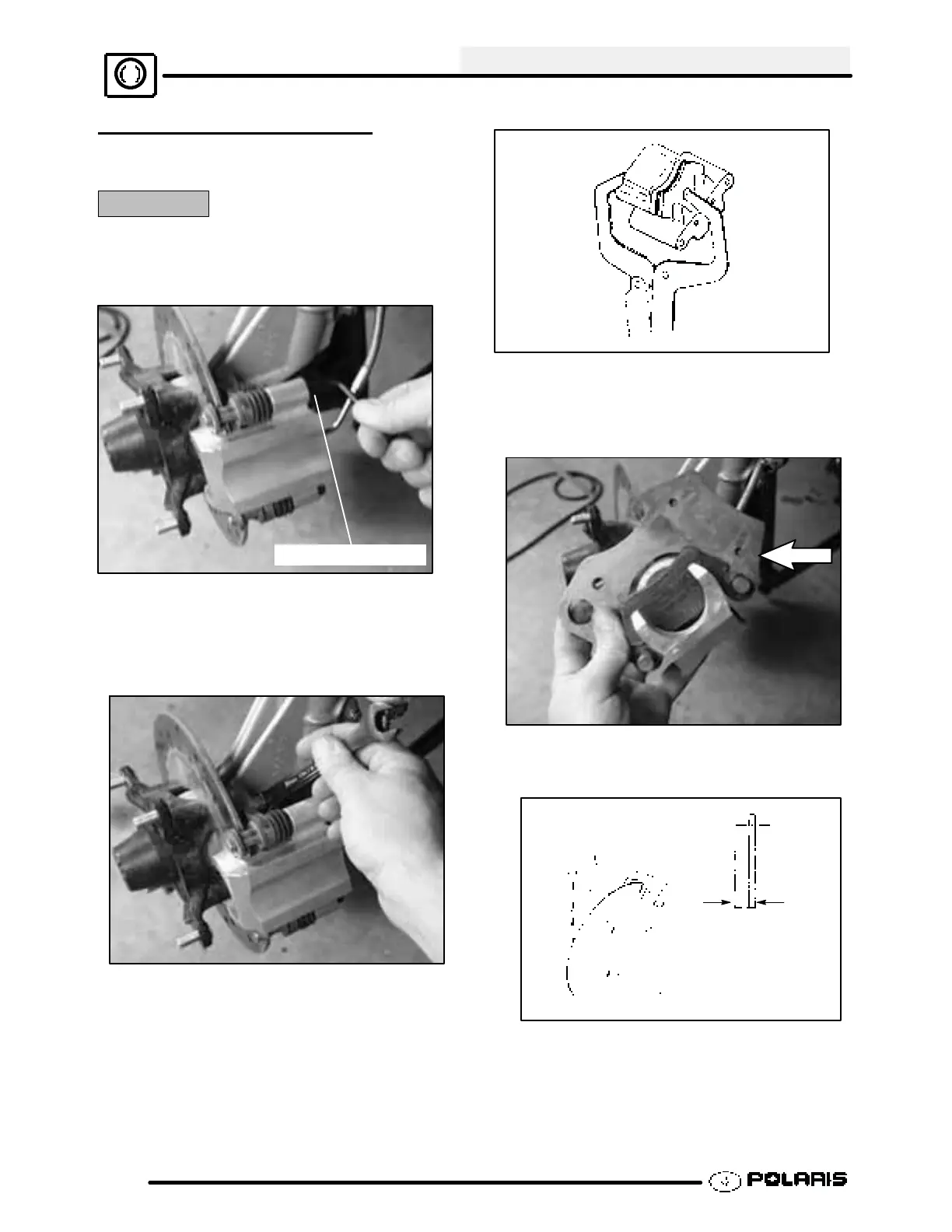

FRONT PAD REMOVAL
1. Elevate and support front of machine.
CAUTION:
Use care when supporting vehicle so that it does not
tip or fall. Severe injury may occur if machine tips or
falls.
Pad Adjuster Screw
2. Remove the front wheel. Loosen pad adjuster
screw 2--3 turns.
3. Remove caliper from mounting bracket.
4. Push caliper piston into caliper bore slowly using
a C-clamp or locking pliers with pads installed.
NOTE: Brake fluid will be forced through
compensating port into master cylinder fluid reservoir
when piston is pushed back into caliper. Remove
excess fluid from reservoir as required.
5. Push upper pad retainer pin inward and slip outer
brake pad past edge. Remove inner pad.
6. Measure the thickness of the pad material.
Replace pads if worn beyond the service limit.
Measure
Thickness
