BRAKES
9.5

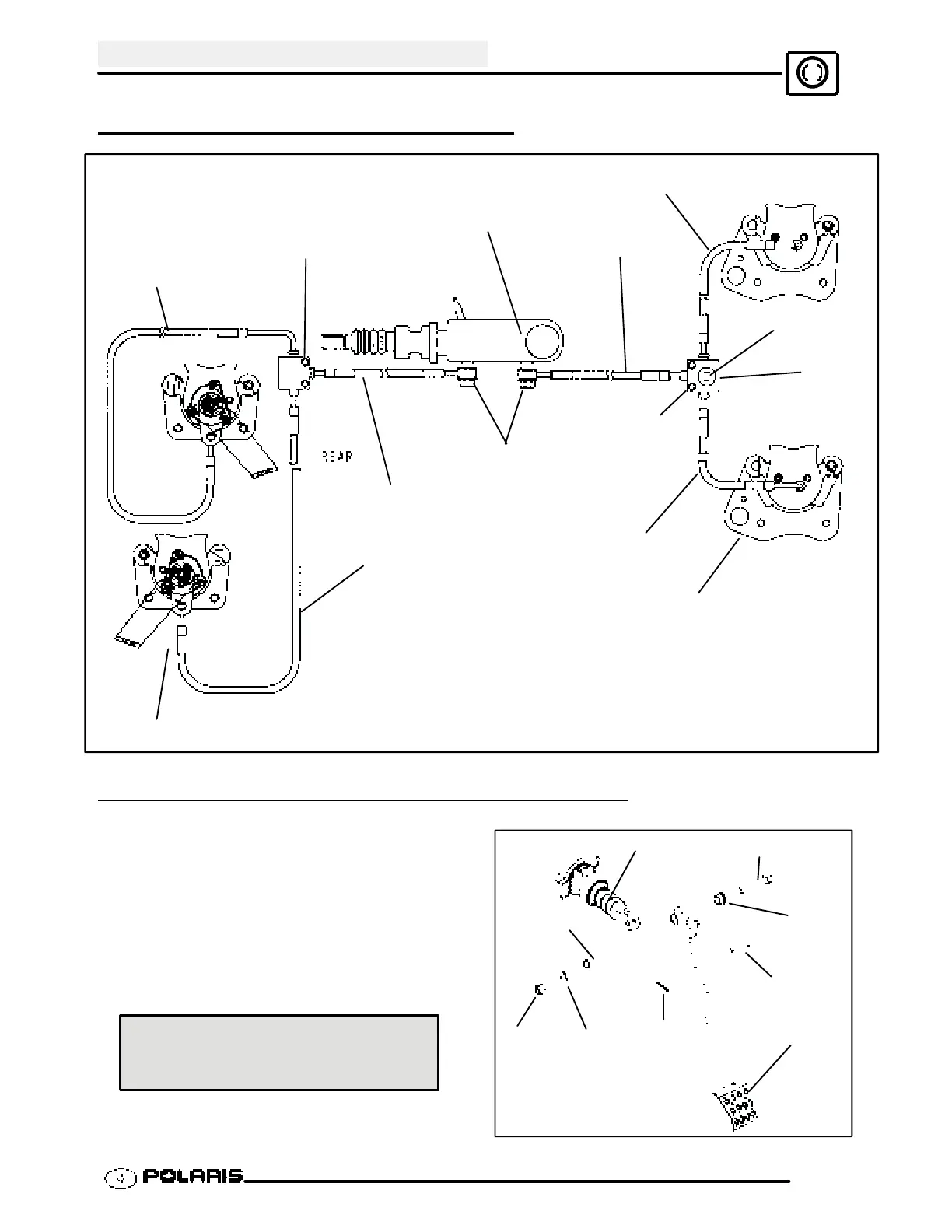

BRAKE SYSTEM EXPLODED VIEW
FRONT BRAKE PEDAL REMOVAL / INST
ALL
1. Open the hood. Locate the master cylinder.
2. Remove the nut, bushing, tube, and bolt from the
brake pedal.
3. Remove the clevis pin and cotter key from the
master cylinder to remove the brake pedal.
4. Reverse Steps 1--3 for foot brake installation.
After installing the foot brake check pedal
freeplay. Pedal freeplay should not exceed .090”
(2.286 mm).
Brake Pedal Freeplay:
.090’ (2.286 mm)
Master Cylinder
Bushing
T ube
Brake Pedal
Clevis Pin
Cotter
Key
Bolt
Bushing
Nut
RH Rear Line
Fitting Tee
Tee L in e
Front Caliper
Master Cylinder
Rear Caliper
Banjo Bolt & Seals
Screws
Brake Switch
MC Rear Brake Line
MC Front Brake Line
Left Front Brake Line
Right Front Brake Line
LH Rear Line
