GENERAL INFORMATION
2.14

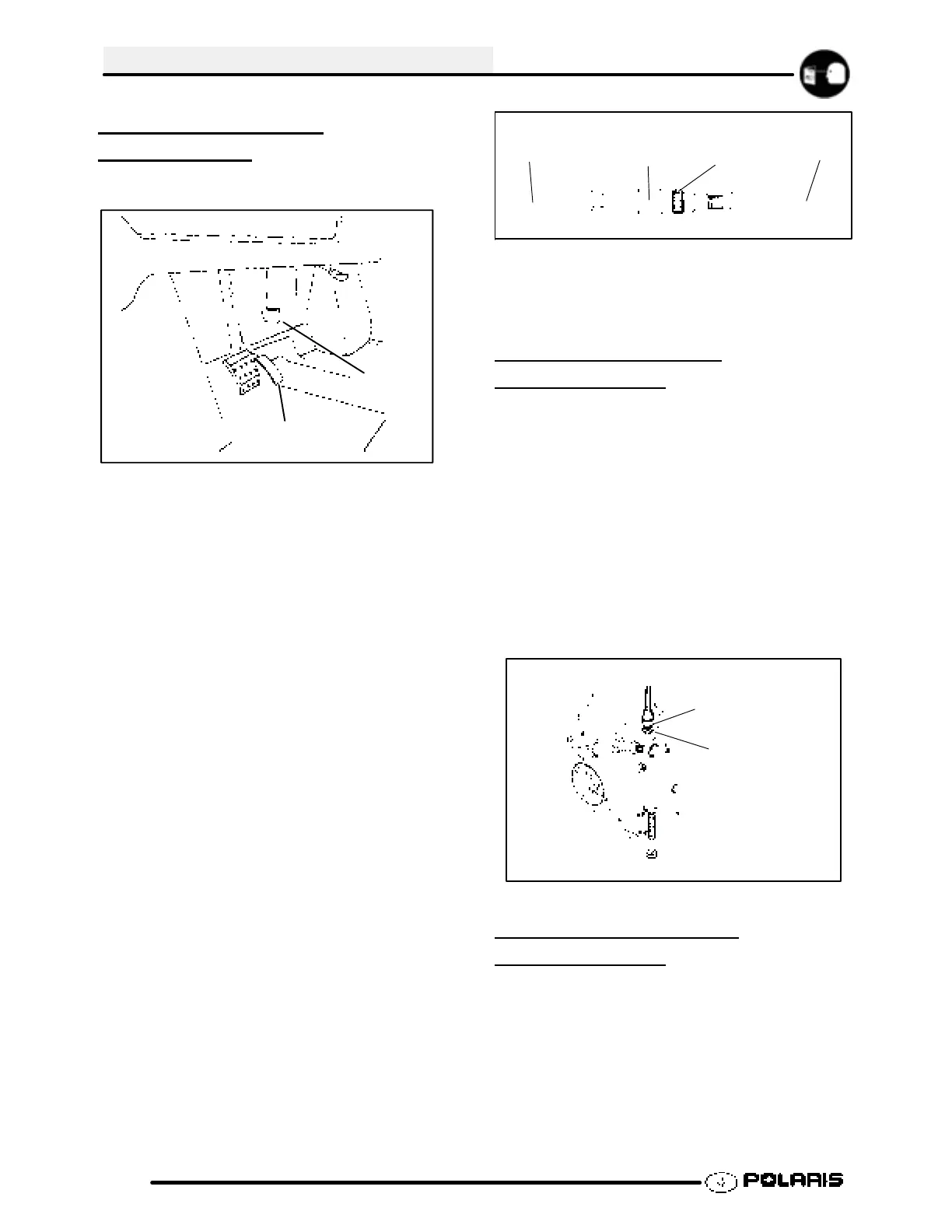

THROTTLE PEDAL
INSPECTION
Throttle Freeplay
Throttle Pedal
Brake
Parking
If the throttle pedal has excessive play due to cable
stretch or cable misadjustment, it will cause a delay in
throttle speed. Also, the throttle may not open fully.
If the throttle pedal has no play, the throttle may be
hard to control, and the idle speed may be erratic.
Check the throttle pedal play periodically in
accordance with the Periodic Maintenance Chart and
adjust the play if necessary.
Throttle Freeplay Inspection
1. Apply the parking brake.
2. Put the gear shift lever in the N (Neutral) position.
3. Start the engine, and warm it up thoroughly.
4. Measure the distance the throttle pedal moves
before the engine begins to pick up speed. Free
play should be 1/16 - 1/8 inches.
Adjust ment
1. Slide the bolts off inline cable adjuster sleeve.
Loosen adjuster locknut.
2. T urn adjuster until 1/16, to 1/8, freeplay is
achieved pedal. NOTE: While adjusting freeplay,
it is important you flip the throttle lever back and
forth.
3. T ighten locknut and slide boots over cable
adjuster until they touch at the mid point of
adjuster.
Boot
Adjuster
Sleeve
Lock-
nut
Boot
THROTTLE CABLE
ADJUSTMENT
NOTE: If the proper freeplay cannot be obtained with
the throttle block adjuster, adjust the cable at the
carburetor using the following procedure.
1. Remove seat.
2. Slide boot off throttle cable adjuster and jam nut.
3. Loosen lock nut and turn adjuster until proper
throttle lever freeplay is obtained.
4. T ighten locknut and slide boot back over adjuster.
5. Reinstall seat.
6. Check for proper throttle operation and correct
freeplay in all handlebar positions.
Throttle Cable
Adjuster
Lock Nut
CHOKE (ENRICHER)
ADJUSTMENT
With the choke control pushed in, the choke plunger
must be seated on the fuel passage way in the
carburetor. If the plunger is not seated on the fuel
passage way inside the carburetor (not enough cable
freeplay), the engine will flood or run too rich, causing
plug fouling and poor performance.
