BRAKES
9.12
Master Cylinder Fluid
Up to MAX line inside reservoir
3. Install wheels and torque wheel nuts.
4. It is recommended that a burnishing procedure be
performed after installation of new brake pads to
extend service life and reduce noise. Start
machine and slowly increase speed to 30 mph.
Gradually apply brakes to stop machine. Repeat
procedure 10 times.
Front Wheel Nut Torque:
20 ft. lbs. (27 Nm)

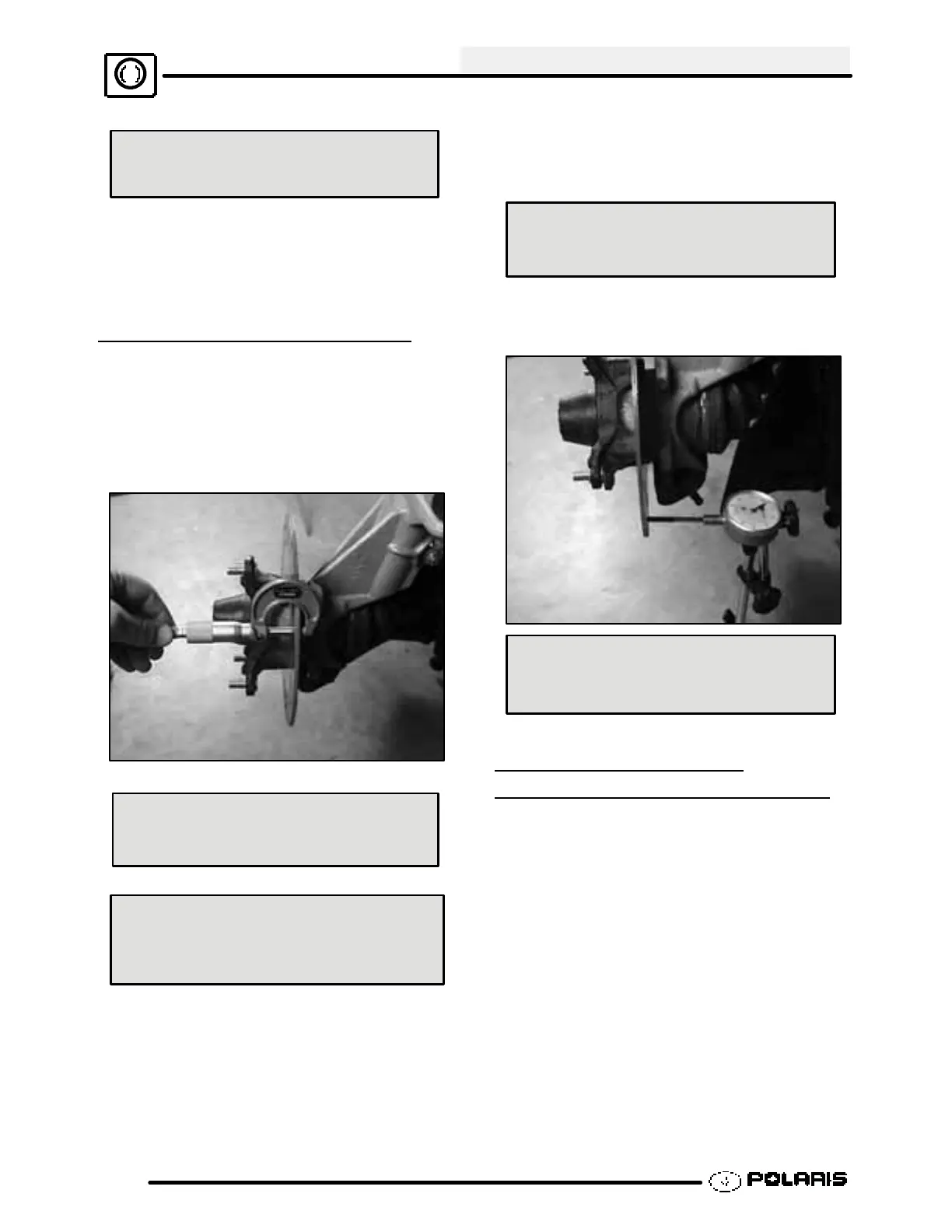

FRONT DISC INSPECTION
1. Visually inspect the brake disc for nicks,
scratches, or damage.
2. Measure the disc thickness at 8 different points
around the pad contact surface using a 0-1²
micrometer. Replace disc if worn beyond service
limit.
Brake Disc Thickness
Service Limit .140² / 3.556 mm
New .150-.165² (3.810-4.19 mm)
Brake Disc Thickness Variance
Service Limit .002² (.051 mm)
difference between measurements.
3. Mount dial indicator as shown to measure disc
runout. Slowly rotate the disc and read total
runout on the dial indicator. Replace the disc if
runout exceeds specifications.
Brake Disc Runout
Service Limit .005² (.127 mm)
FRONT BRAKE DISC
REMOVAL /
REPLACEMENT
1. Remove bolts and disc.
To Next Page
