BRAKES
9.15
3. Lubricate the mounting bracket pins with Polaris
Premium All Season Grease, and install the
rubber dust seal boots.
Polaris Premium All Season Grease
(PN 2871423)
4. Compress the mounting bracket and make sure
the dust seals are fully seated. Install the pads as
shown on Page 9.11--9.12. Clean the disc and
pads with brake parts cleaner or denatured
alcohol to remove any dirt, oil or grease.

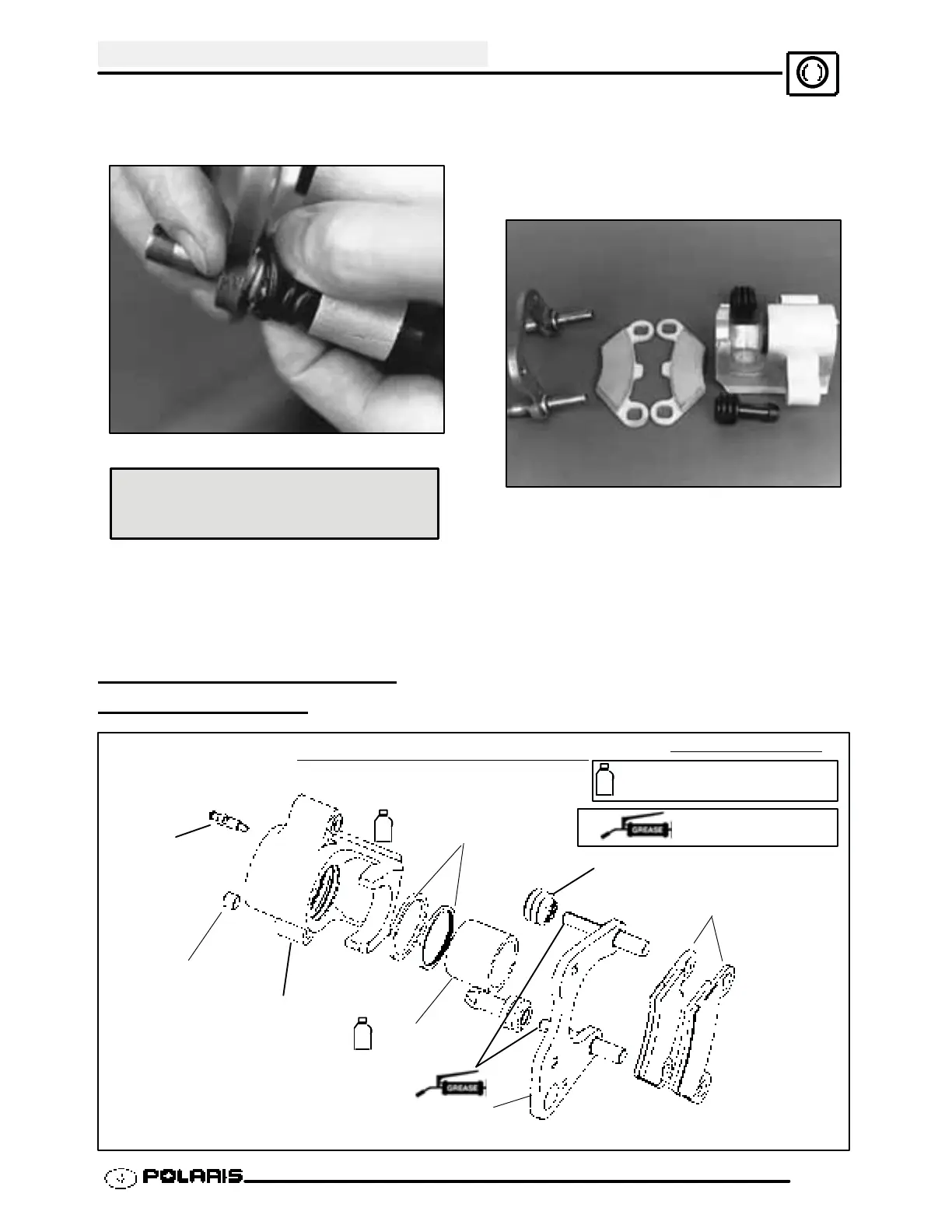

FRONT BRAKE CALIPER
EXPLODED
VIEW
Pads
Caliper Mount
Piston
Adjuster Screw
Square O-- rings
Front Caliper Exploded View
Bleeder Screw
Dust Boots
Caliper Body
35--60 IN. LBS.
(4--6.5 NM)
(Finger Tight)
DURING ASSEMBLY
APPLY POLARIS ALL
PURPOSE GREASE
APPLY POLARIS DOT 3 BRAKE
FLUID TO COMPONENT
3
3
3
