9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
3.109

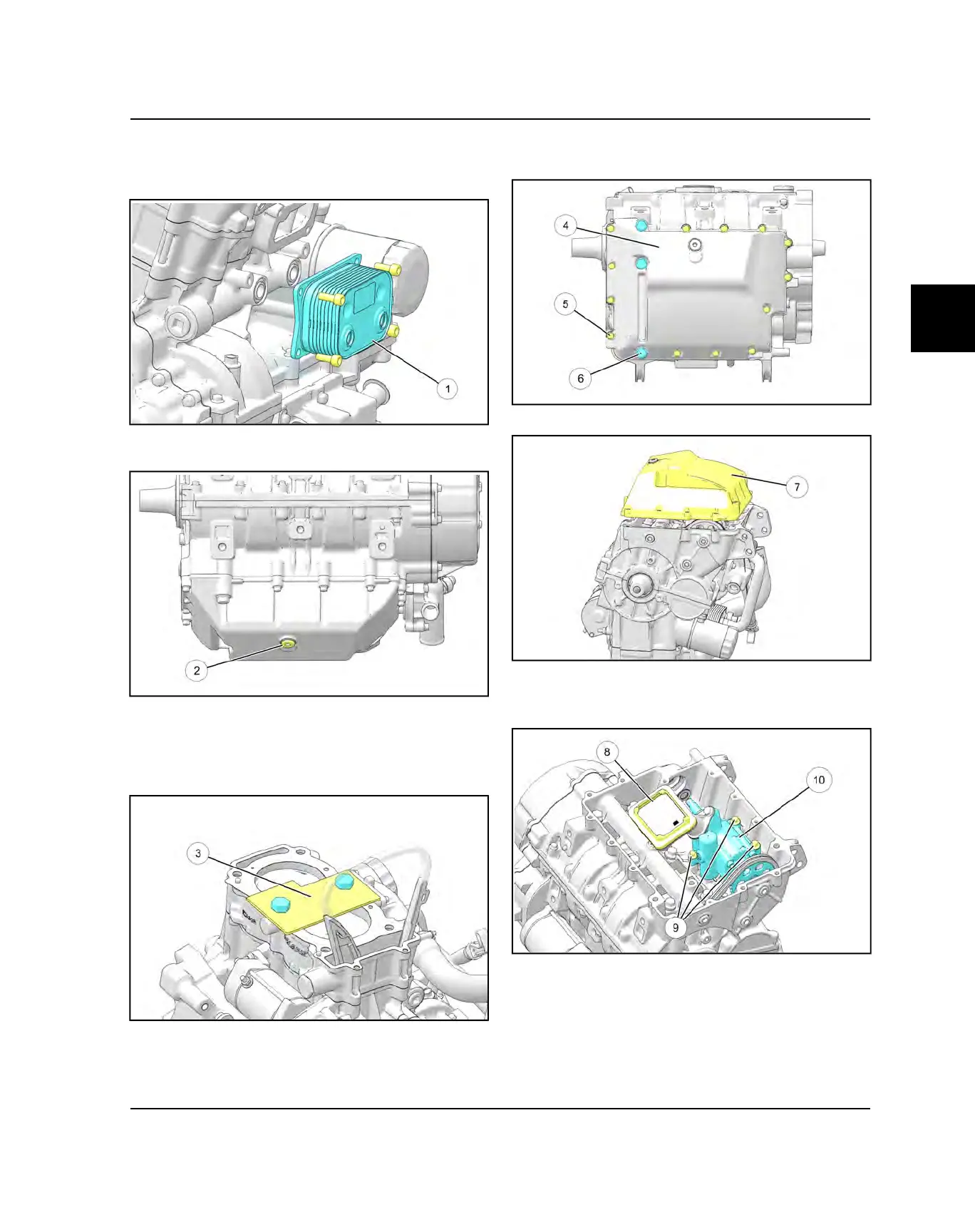

CRANKCASE DISASSEMBLY / INSPECTION
1. Remove the four screws retaining the oil cooler
q
to
the crankcase.
2. Remove the crankcase drain plug
w
. Drain any oil
remaining in the engine. Reinstall the plug.
3. Remove the oil filter.
4. Install the Cylinder Holding & Camshaft Timing Plate
(PU-50563)
e
onto the cylinder. The cylinder holding
tool retains the cylinder and pistons when the engine
is rotated.
5. Rotate engine to access the crankcase sump cover.
6. Remove the thirteen M6
t
and three M8 bolts
y
retaining the sump cover
r
to the crankcase.
7. Remove the sump cover
u
from the crankcase.
8. Remove and clean oil pump pick-up
i
.
9. Remove the three bolts
o
that retain the oil pump
a
to the crankcase.
ENGINE / COOLING SYSTEM
