CHARGING SYSTEM

STATOR

Refer to Engine Chapter – Stator Cover Removal /

Inspection, page 3.49 to service the stator.

NOTE

The stator cover can be removed with the engine

installed in the chassis.

Be sure to thoroughly clean the area around the stator

cover prior to removal.

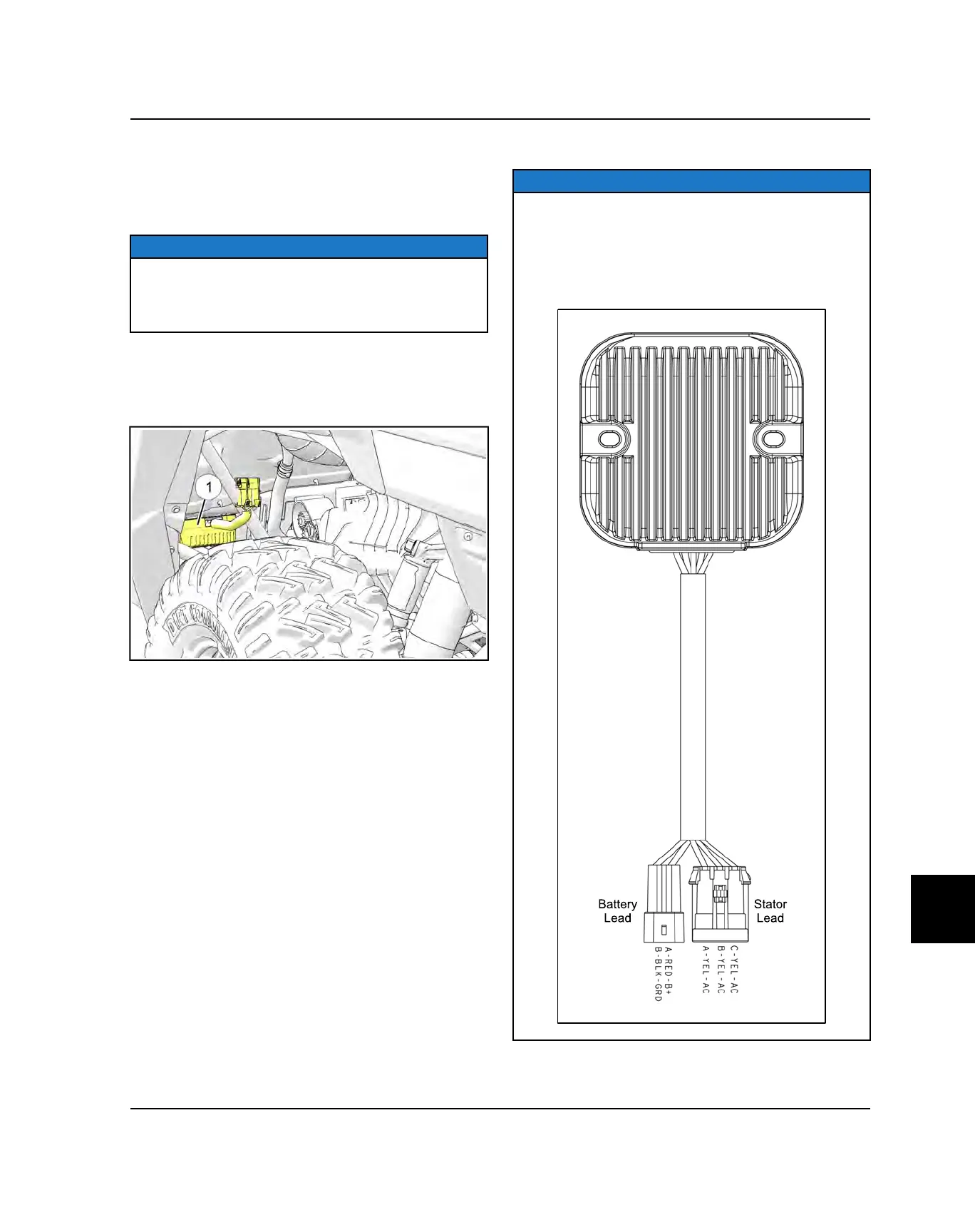

VOLTAGE REGULATOR

The regulator / rectifier

is located in front of the left

rear wheel. It is mounted behind the left panel divider.

NOTE

If the regulator / rectifier case temperature exceeds

230° F or 110° C, the unit will turn itself off to cool down.

The unit will turn on again after it has cooled down to at

least 212° F or 100° C. If it turns off, verify the cooling

fins are clean, free from debris and that adequate

airflow is present.
