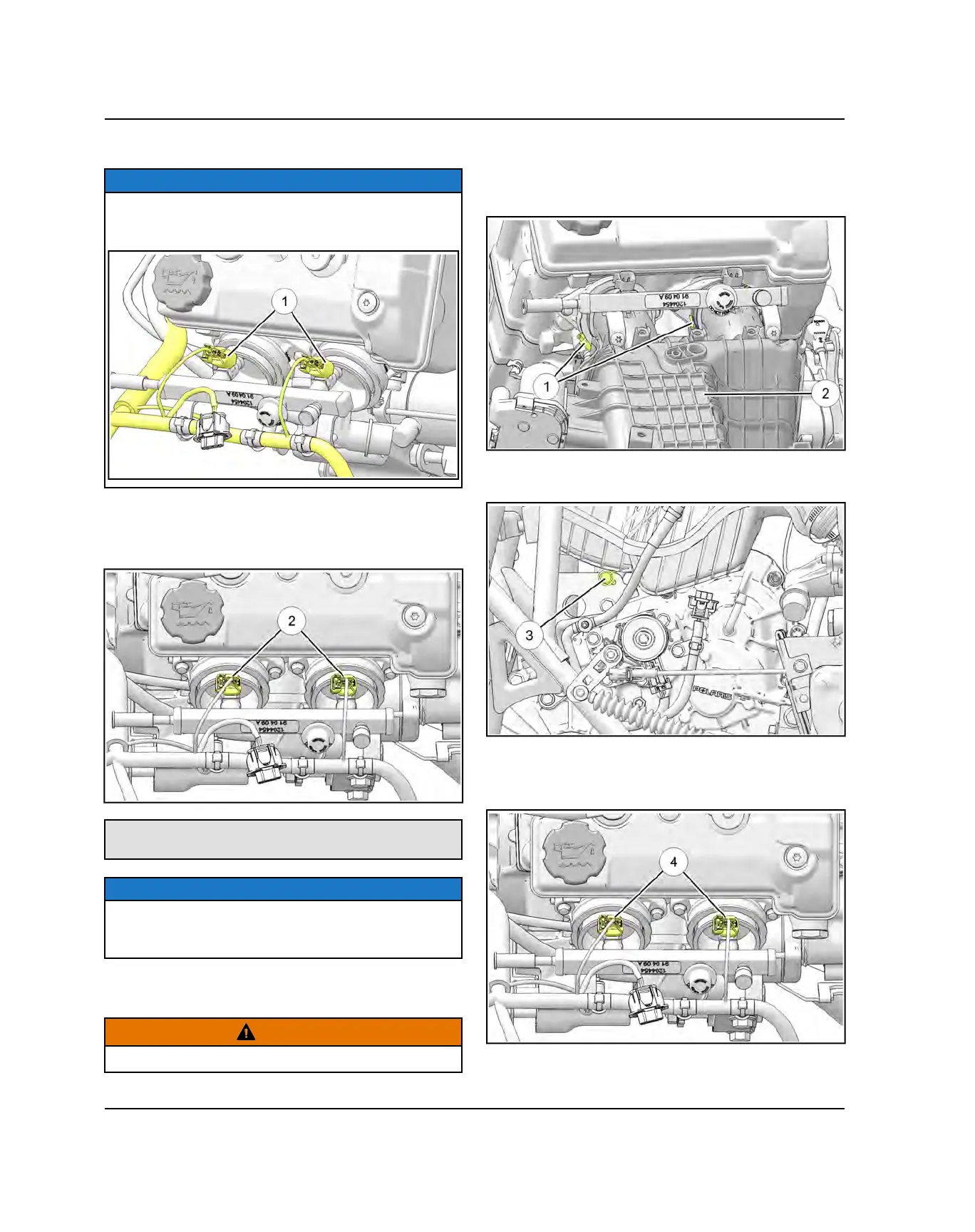

FUEL INJECTOR TEST
NOTE
Take note of PTO and MAG fuel injector harness
connectors before disconnecting them. The harness
leads are marked with PTO and MAG identifiers
q
.
The fuel injectors are non-serviceable. If diagnosis
indicates a problem with either injector, test the
resistance of the fuel injector (s) by measuring between
the two pin terminals
w
:
Fuel Injector Resistance Specification:
11.4 - 12.6 Ω
NOTE
Be sure to connect the PTO harness lead to the PTO
injector and the MAG harness lead to the MAG injector
to ensure proper engine operation.
FUEL INJECTOR REPLACEMENT
CAUTION
Be sure the engine has cooled enough to work on.
1. Remove the cargo box assembly (see Chapter 10 –
Cargo Box Removal, page 10.20.
2. Loosen the hose clamps
q
retaining the intake
plenum
w
to the throttle body.
3. Remove the two screws
e
retaining the intake
plenum.
4. Remove the driver’s seat and disconnect the negative
battery cable.
5. Disconnect the fuel injector harness leads
r
.
