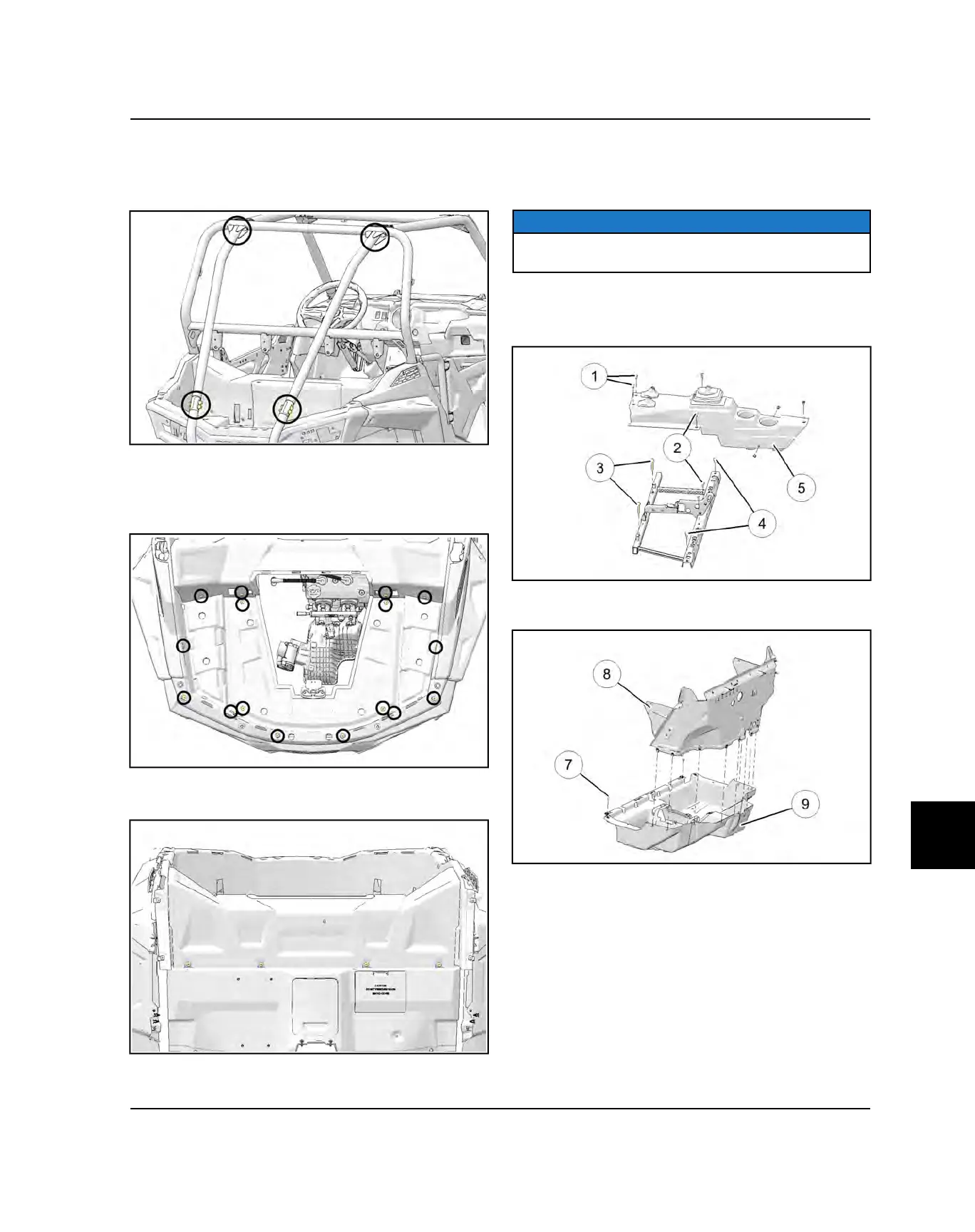

5. If equipped with rear cab frame extenders, remove
the four bolts retaining each rear cab frame and
remove it from the vehicle. Remove the bolts
retaining the hip bolsters to the cab frame hoop.
6. Remove the eight fasteners retaining the rear cab
frame to the frame and to the front cab frame.
Remove the rear cab frame from the vehicle.
7. Remove the Torx screws in the bed of the cargo box.
8. Remove the seven T-40 Torx screws on the cab side
of cargo box.
9. Remove the cargo box half from the vehicle.
ROCKER PANEL / CONSOLE / FLOOR
1. Remove the push rivets and Torx screws retaining the
rocker panel and remove panel from the vehicle.
NOTE
If replacing the floor, remove rocker panels from both
sides.
2. Remove the T27 screws
q
retaining the console
t
to the floor.
3. Remove shift handle knob and remove the console.
4. Remove the Torx screws retaining the upper floor
i
to the lower floor
o
.
5. Remove the Torx screws
u
retaining the rear portion
of the floor and remove the lower floor from the
vehicle.
ROCKER PANELS / REAR CONSOLE /
FLOOR - 4 900
Rocker Panel Removal
1. Remove rear fender flare and rear fender. (Refer to
Rear Fender / Fender Flair Removal, page 10.20).
