7.34
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.

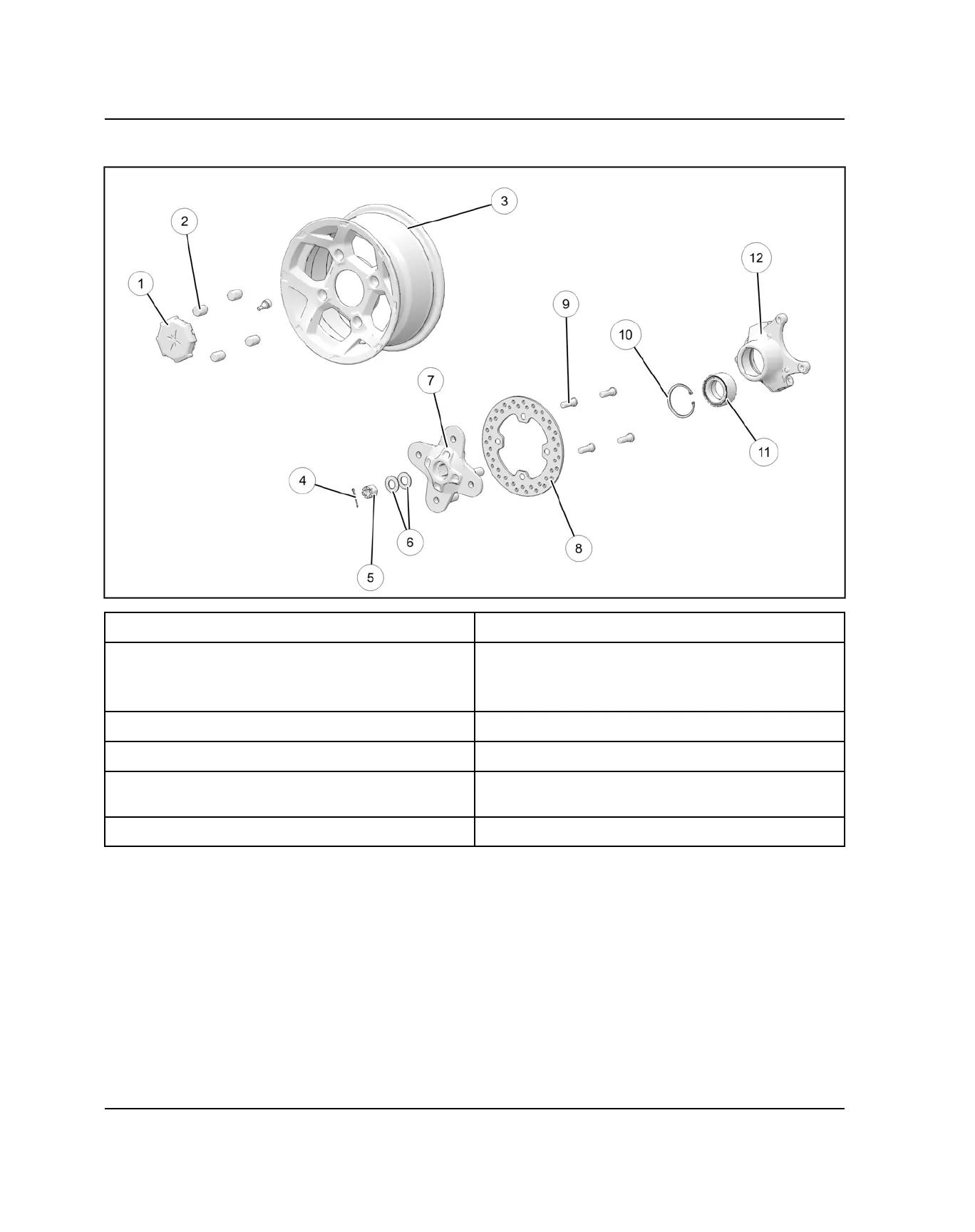

REAR HUB ASSEMBLY VIEW
q
Wheel Cap
u
Wheel Hub
w
Wheel Nuts
Aluminum: 120 ft-lbs (163 Nm)
Steel: 60 ft-lb (81 Nm)
i
Brake Disc
e
Rear Rim (Aluminum shown)
o
Studs
r
Cotter Pin a
Retaining Ring
t
Castle Nut
180 ft-lbs (244 Nm)
s
Sealed Bearing
y
Cone Washer
d
Bearing Carrier
FINAL DRIVE
