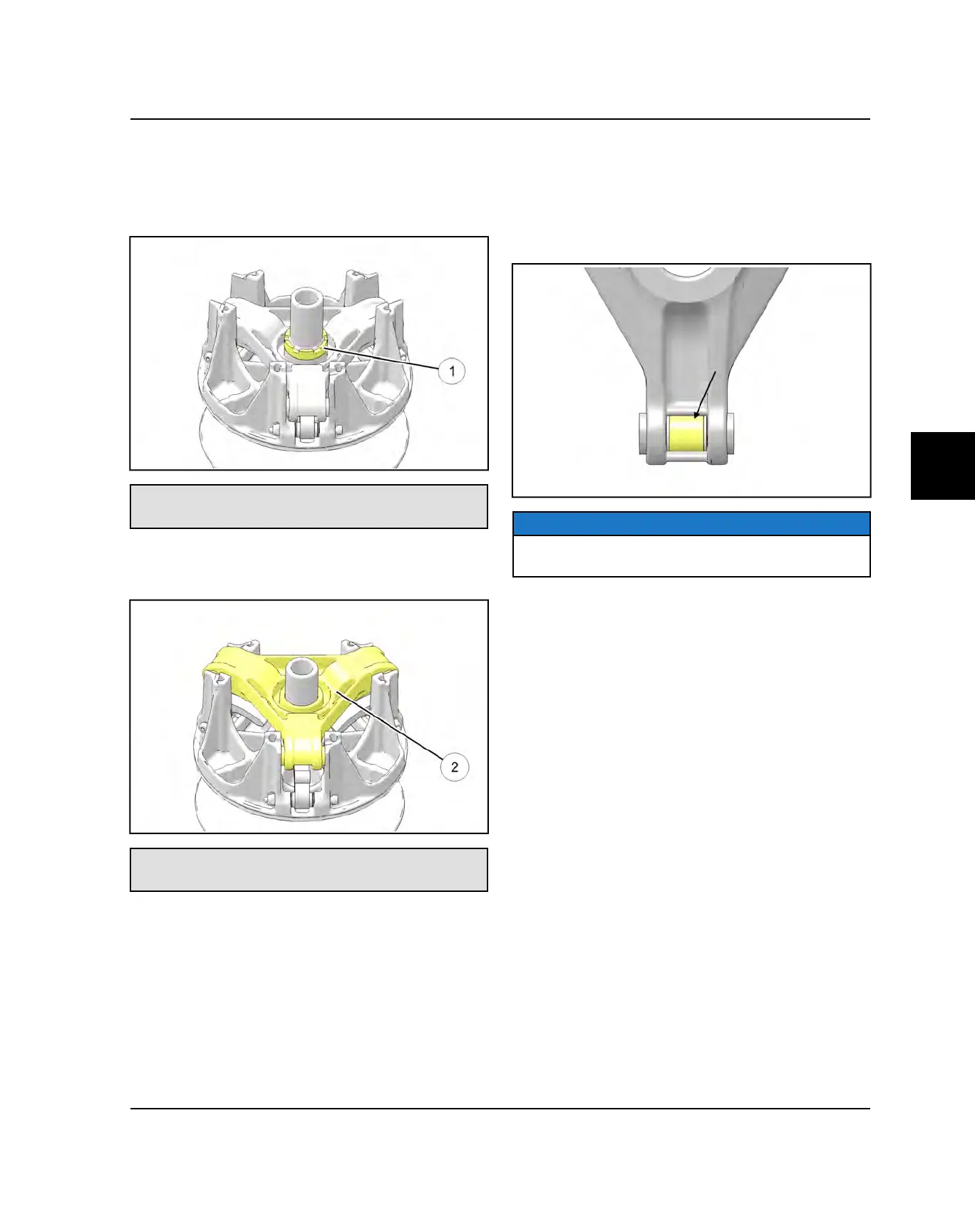

SPIDER REMOVAL

1. Install clutch onto holding fixture and secure in bench

vice. Loosen and remove the spider jam nut

(counterclockwise) using the Clutch Spider Nut

Socket.

Clutch Spider Nut Socket: PU-50578

Clutch Holding Fixture: 2871358-A

2. Loosen and remove the spider

(counterclockwise)

using Clutch Spider Removal / Installation Tool (PN

2870341).

Spider Removal / Installation Tool: 2870341

Clutch Holding Fixture: 2871358-A

ROLLER, PIN AND THRUST WASHER

INSPECTION

1. Inspect all rollers, roller bushings and roller pins by

pulling a flat metal rod across the roller.

2. Turn roller with your finger. If you notice resistance,

galling, or flat spots, replace the drive clutch.

NOTE

Rollers, pins, thrust washers and buttons are not

serviceable at the time of this publication.
