9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
9.5
RZR 900 / 1000
q

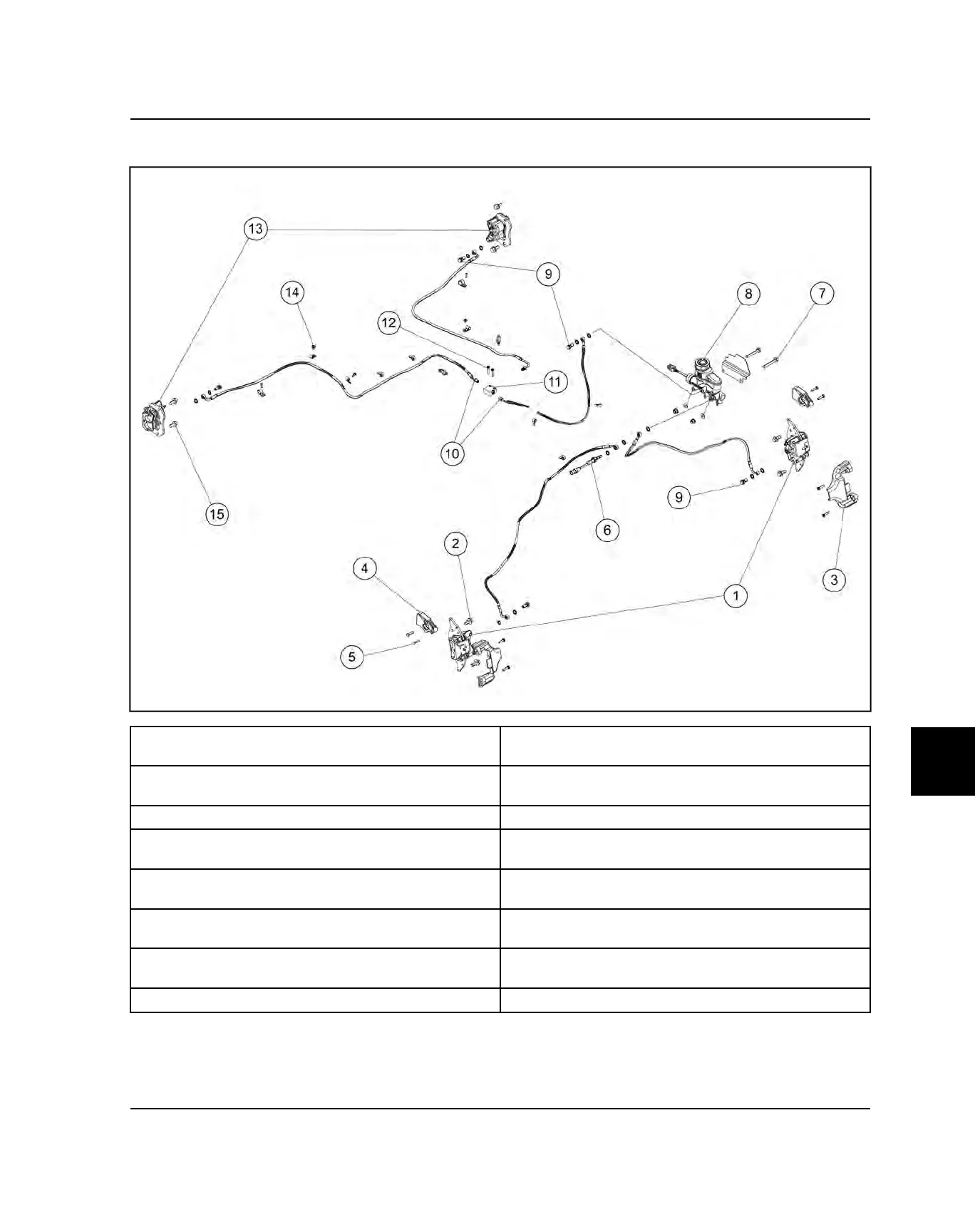

Front Caliper
o
Banjo Bolt
15 ft-lb (20 Nm)
w
Front Caliper Bolts
30 ft-lb (42 Nm)
a
Brake Fittings
15 ft-lb (20 Nm)
e
Caliper Mount / CV Shield
s
Junction Block
r
Brake Disc Scraper
d
Junction Block Bolts
35 in-lb (4 Nm)
t
Scraper Bolts
7 ft-lb (11 Nm)
f
Rear Caliper
y
Brake Switch
15 ft-lb (20 Nm)
g
Brake Line Retainers
35 in-lb (4 Nm)
u
Master Cylinder Mounting Fasteners
23 ft-lbs (31 Nm)
h
Rear Caliper Bolts
46 ft-lb (62 Nm)
i
Master Cylinder
BRAKE SYSTEM
