Polaris RZR S 1000 2016 User Manual

5.12
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.

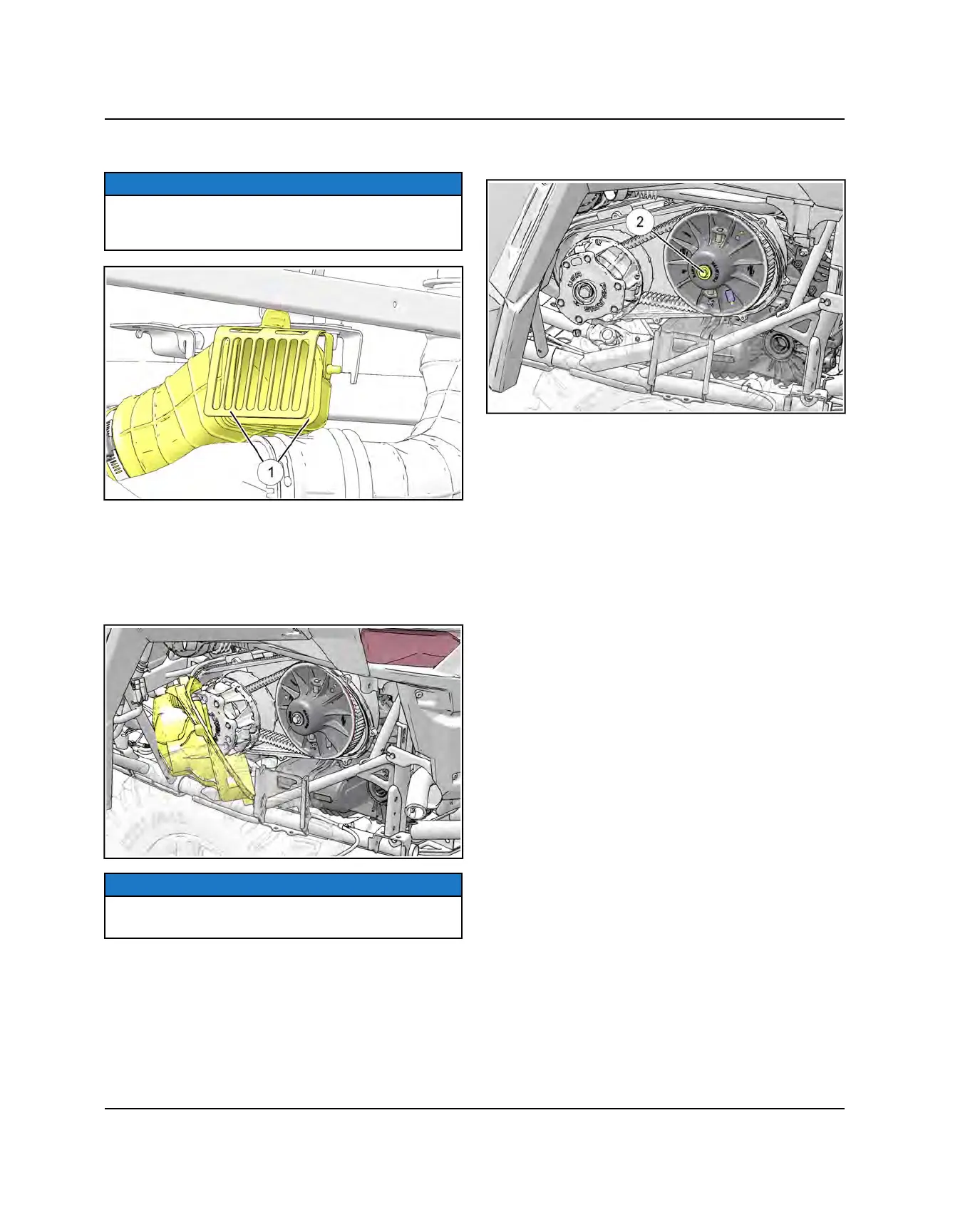

BELT REMOVAL (NON-EBS)
NOTE
Inspect the entire clutch outlet duct (including the outlet
duct screen) when replacing a drive belt. Remove any
debris found in the outlet duct or outlet duct screen
q
.
1. Remove the grease fitting on the left rear upper
control arm.
2. Remove the eight screws that retain the outer clutch
cover.
3. Maneuver the outer clutch cover outward as shown
below to access the drive belt.
NOTE
Removal of left rear wheel or left rear shock is NOT
necessary for belt replacement.
4. Mark the drive belt direction of rotation so that it can
be installed in the same direction.
5. Loosen the driven clutch mounting bolt
w
to allow the
sheaves on the secondary clutch to open up.
6. Walk the belt out of the driven clutch and drive clutch.
Remove the belt from the vehicle.
PVT SYSTEM
