9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service

Manual

5.33

14.Install the cam (helix) assembly over the shaft. Line

up the “X” on the cam, “X” on spider, and “X” on the

stationary sheave or use the marks previously made

before disassembly.

NOTE

If the cam assembly (helix) is difficult to install, be sure

the sheaves are aligned. To align the sheaves place the

clutch assembly on a flat surface with the cam

assembly (helix) side down. Press down on the

moveable sheave belt face with both hands and the

helix will release.

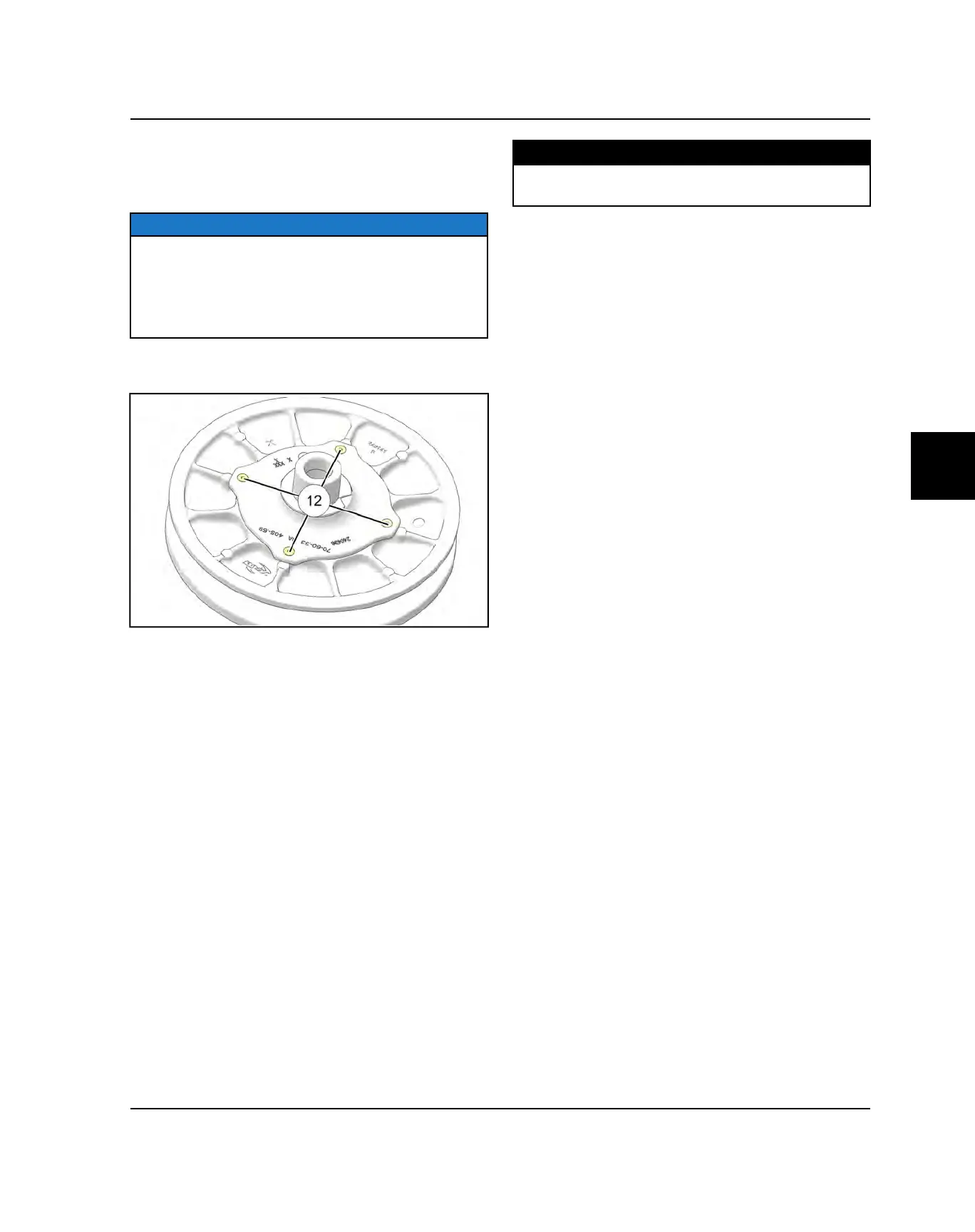

15.Use a T25 Torx driver to install the four helix retaining

screws

and torque to specification.

TORQUE

Helix Retaining Screws:

48 in-lb (5 Nm)

PVT SYSTEM
