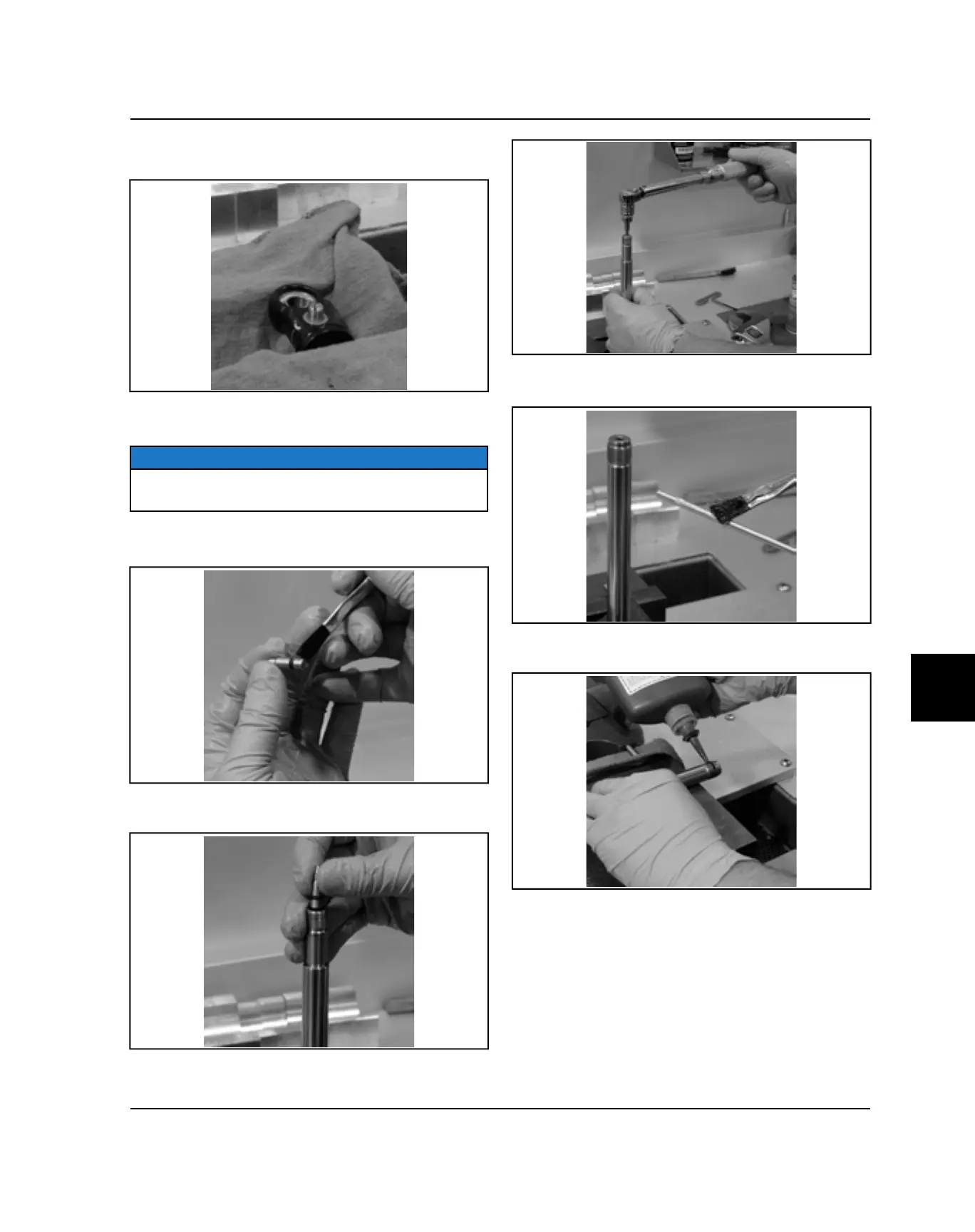

8. Install rebound knob into eyelet, holding steel ball in
place with fingers.
9. Ensure rebound knob threads into eyelet correctly,
and you can feel the detents click.
NOTE
Adjust rebound knob to allow metering rod to obtain
maximum travel in eyelet.
10.Install new O-ring on needle and apply thin layer of
Slick Honey.
11. Place shock shaft in clamp blocks and insert needle
into shock shaft.
12.Thread in the damping jet and torque to specification.
13.Reverse shock shaft in clamp blocks and apply a thin
layer of Slick Honey to metering rod.
14.Apply specified Loctite® two threads down and two
threads wide 360° around shock shaft threads.
15.Place shaft back in clamp blocks, apply loctite®
primer to eyelet, and Torque eyelet to shock shaft.
See specifications.
