800 EFI EXHAUST SYSTEM

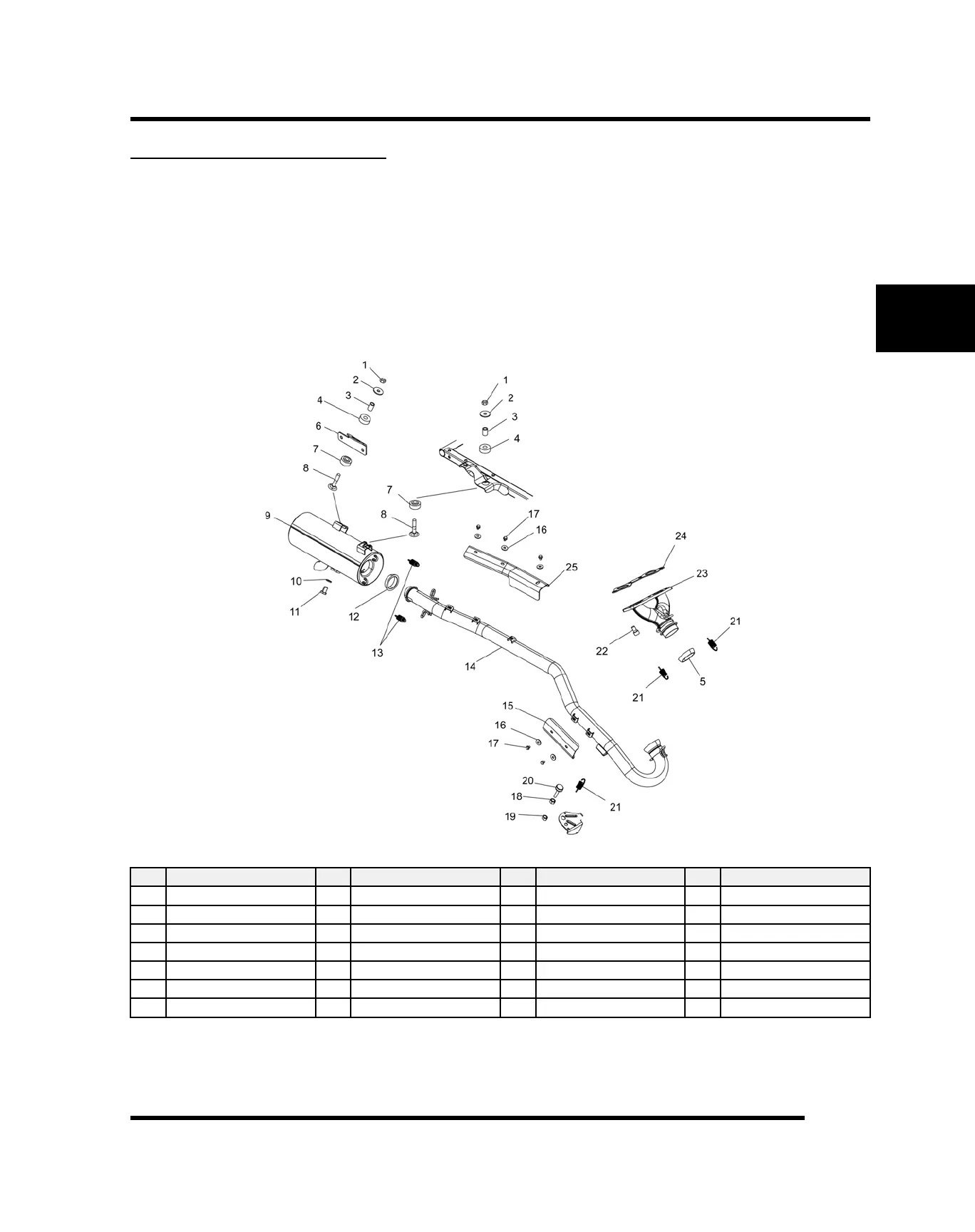

Exhaust Layout
To maintain the finish and prevent corrosion, periodic
maintenance is required. DO NOT use caustic chemicals
to clean, as they may damage the finish.
1. Wash any accumulated mud or debris from the
canister with a soft brush and soapy water.
2. Use a non-caustic cleaner to clean away any
remaining grime, salts or oils.
3. Polish if desired using a soft cloth.
4. Repeat this procedure as often as desired to
maintain the canister's finish.
NOTE: Silencer and pipe removal may require
replacement of the silencer grommets and exhaust
seals, as they can become damaged during removal.
#
ITEM
#
ITEM
#
ITEM
#
ITEM
1 Nut, Nylok 8 Bolt, Carriage 15 Asm., Shield 22 Seal, Exhaust
2 Washer, Flat 9 Silencer 16 Screw 23 Shield, Inner
3 Washer, Rubber 10 Washer, Clean Out 17 Washer 24 Washer
4 Screw 11 Bolt 18 Manifold, Black 25 Screw
5
Grommet 12 Seal, Exhaust 19 Shield, Outer
6 Dampener, Vibration 13 Sprint, Exhaust 20 Isolator
7 Bushing 14 Pipe, Exhaust 21 Gasket
