TEST 6 (4x4) - Vehicle Speed Sensor
Speed Sensor Location 4x4
The speed sensor is located on the RH transmission
case and can be accessed through the rear RH wheel
well area.
Speed Sensor Testing
Special Tools Required:
Static Timing Light Harness (PN 2871745)
Hall Sensor Probe Harness (PN 2460761)

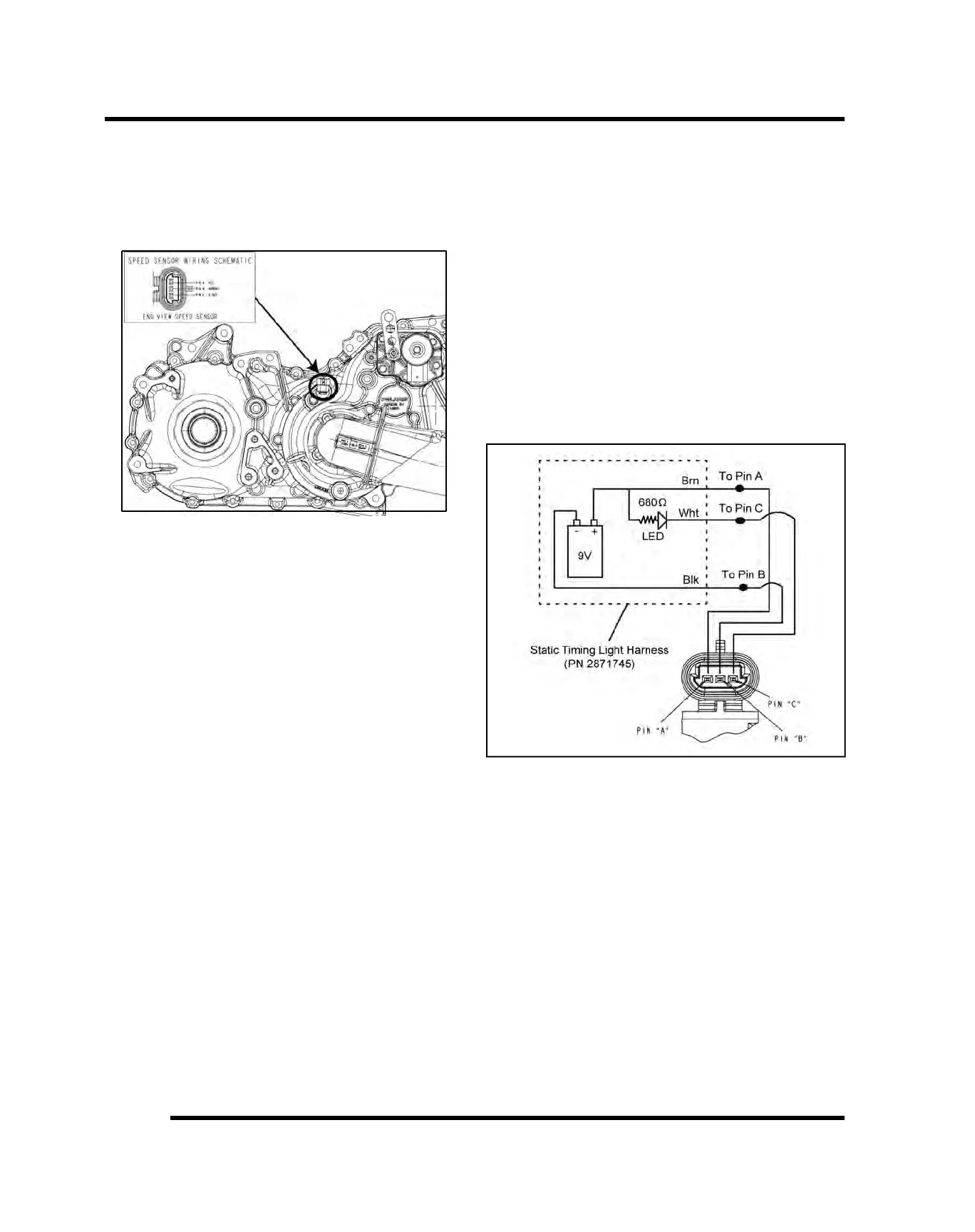

1. Disconnect the 3 wire harness from the speed
sensor and remove the sensor from the
transmission.
2. Connect the wires from the Static Timing Light
Harness to the sensor 3 pin connector using the Hall
Sensor Probe Harness (PN 2460761).
3. Pass a screwdriver back and forth in front of the
sensor tip.
4. Be sure connections are good and 9V battery is in
good condition. If the light flashes, the sensor is
good.
