4
4.17
9924864 - 2012-2014 SPORTSMAN 800 / 6X6
© Copyright 2013 Polaris Sales Inc.
FUEL SENDING UNIT
Fuel Sending Unit Test
If the fuel gauge reading on the instrument cluster is not
working, or if the display reading differs in large
comparison to the fuel in the tank, perform a resistance
test on the fuel sender.

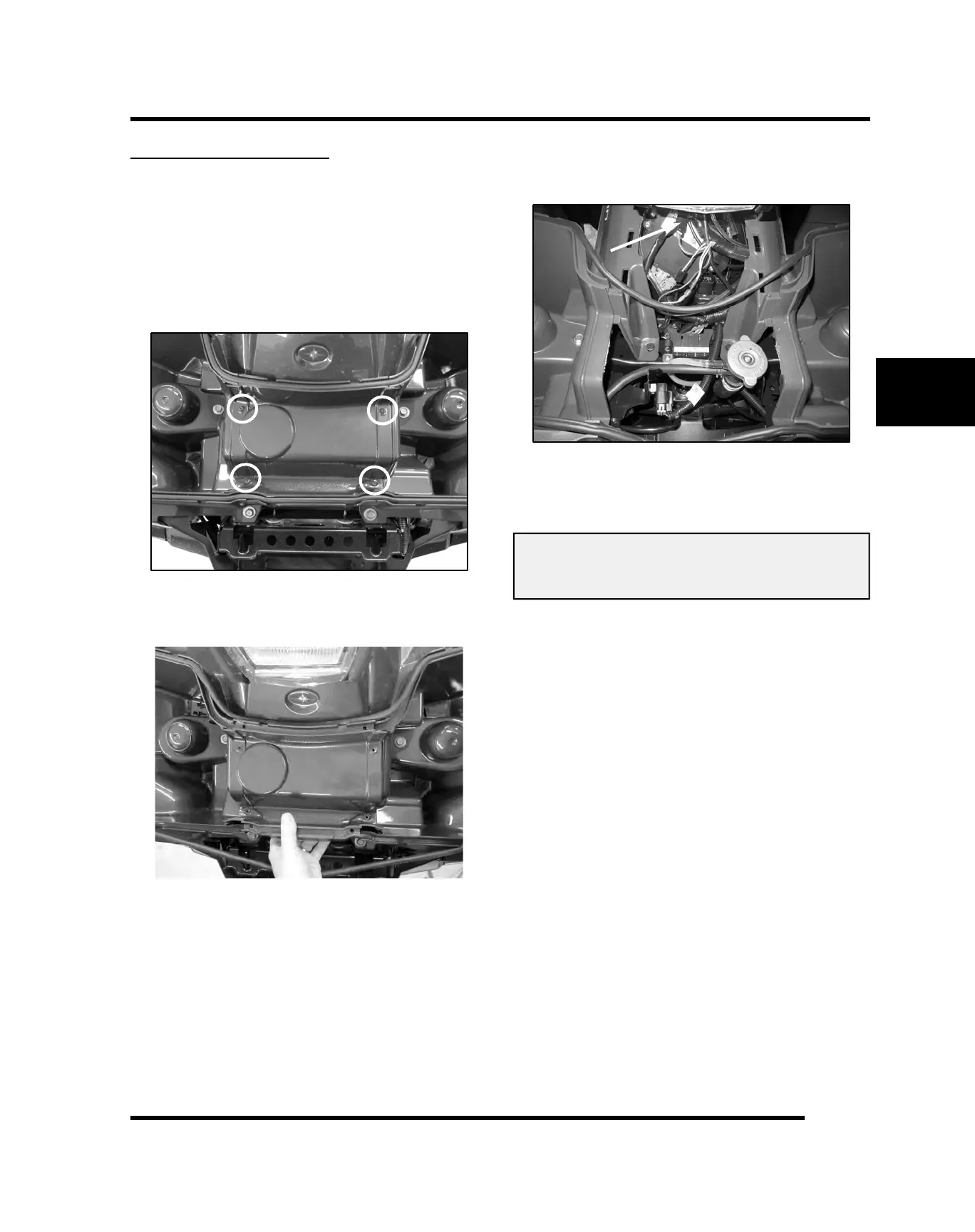

1. Open the front rack storage area.
2. Remove the (4) T-25 screws securing the access
cover to the front cab as shown below.
3. Move the seal out of the sealing channel and pull up
on the front of the access cover. Remove the access
cover.
4. Locate the 3 wire fuel pump / sending unit connector.
5. Disconnect the fuel pump / sending unit connection
and measure the resistance between the Purple and
Brown wires (see chapter 10 for further details). If out
of specification, replace the fuel pump.
Fuel Sender Resistance Specifications:
Full: approx 90 Ω
Empty: approx 5 Ω
FUEL SYSTEM - GENERAL
