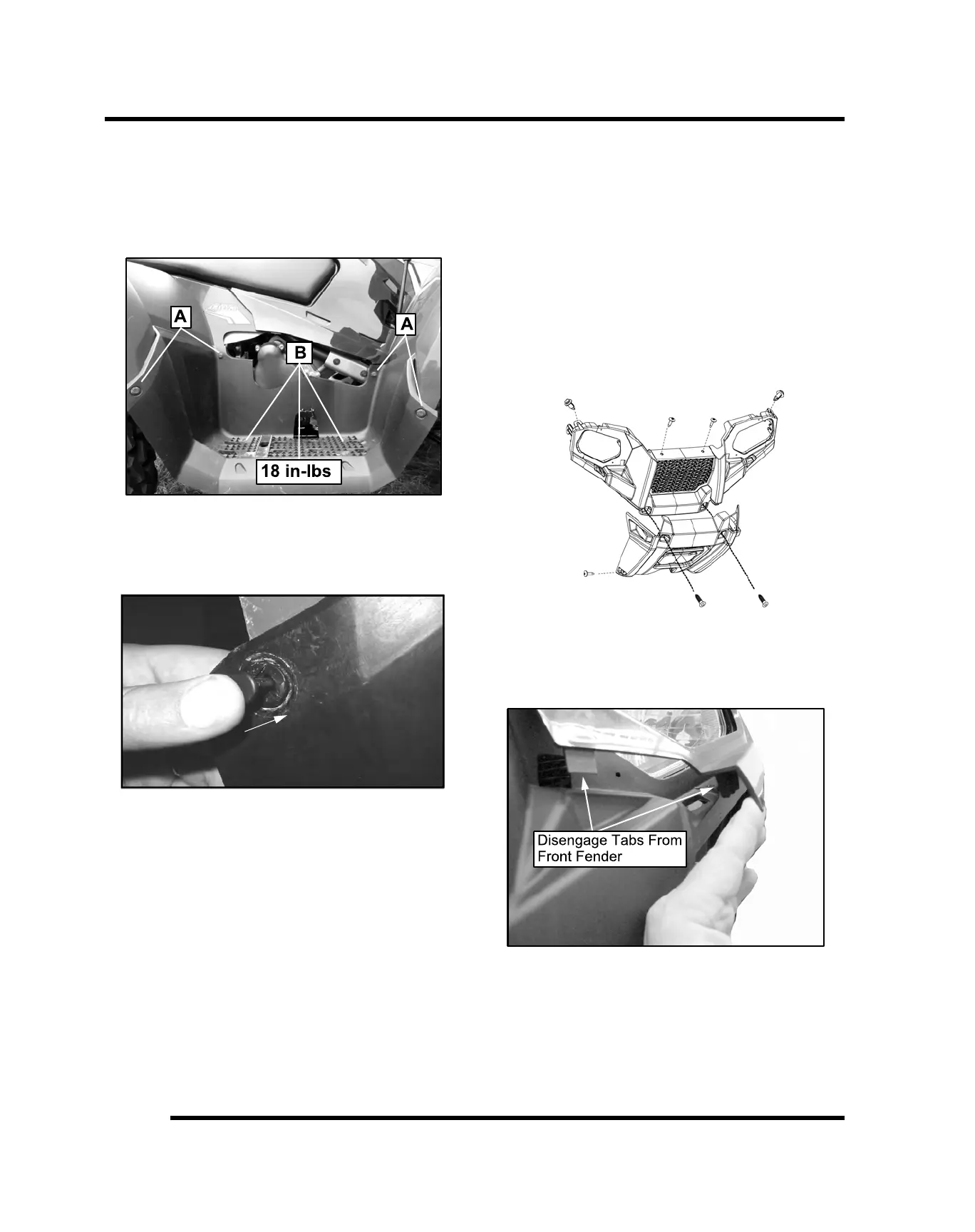

Foot Well Removal / Installation
1. Remove the four plastic inserts (A) that secure the
wheel well to the front and rear fenders.
2. Remove the four screws (B) from the bottom of the
foot well. Remove the footwell.
3. Reverse the removal procedures to install the foot
well. Be sure to properly align the fender ends into
the foot wells upon reassembly.
Front Bumper Removal / Installation
1. Remove front rack / storage box lid as outlined in this
chapter.
2. Disconnect head lamp connectors, leaving the bulb
in the head lamp housing.
3. Remove lower portion of the front bumper by
removing the (4) T27 bolts that attach it to the frame.
Pull bumper strait out to remove.
4. Remove the (2) plastic rivets that attach the upper
front bumper to the front fenders.
5. Remove to (2) T27 bolts that attache the upper front
bumper to the frame.
6. Disengaged the 4 plastic tabs from the front fender
that engage into the upper front bumper by gently
pressing down on the bumper and pulling up on the
front fender.
7. Remove the front bumper by gently the pulling the
lower portion of the bumper away from the vehicle
frame and sliding it down.
