9924864 - 2012-2014 SPORTSMAN 800 / 6X6

DRIVEN CLUTCH SERVICE (NON EBS)

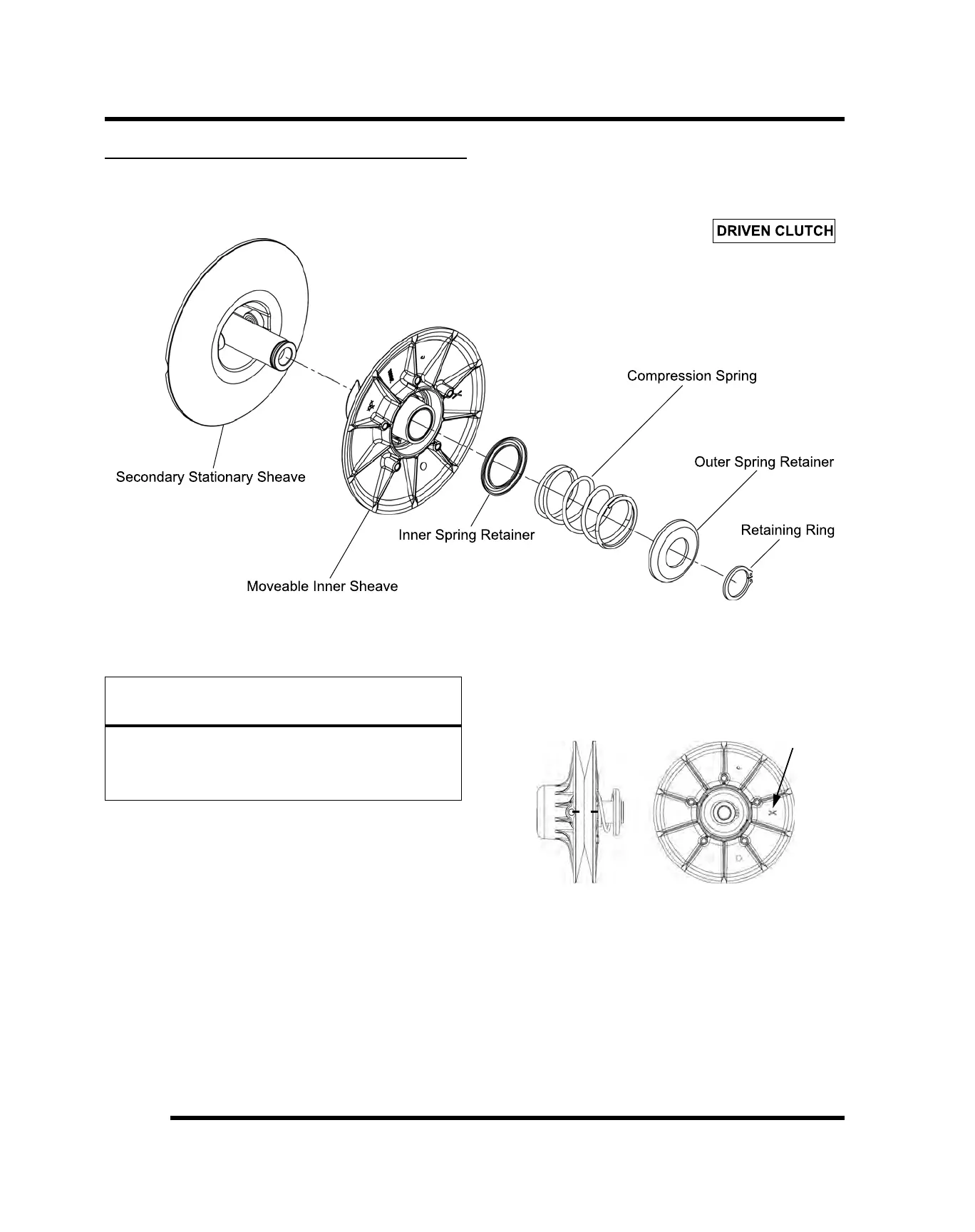

Exploded View (NON EBS)

Clutch Disassembly / Inspection

CAUTION

Wear eye protection when removing snap ring to

prevent serious personal injury.

Use caution when removing, the snap ring pressure is

loaded by the compression spring.

1. Remove driven clutch from the transmission input

shaft.

2. Mark the position of the clutch sheaves before

disassembly or use the X’s on the sheaves for

reference. This aids in reassembly and maintains

clutch balance after reassembly.

CLUTCHING

Polaris Sportsman 800 EFI Big Boss 6x6 2012 User Manual
