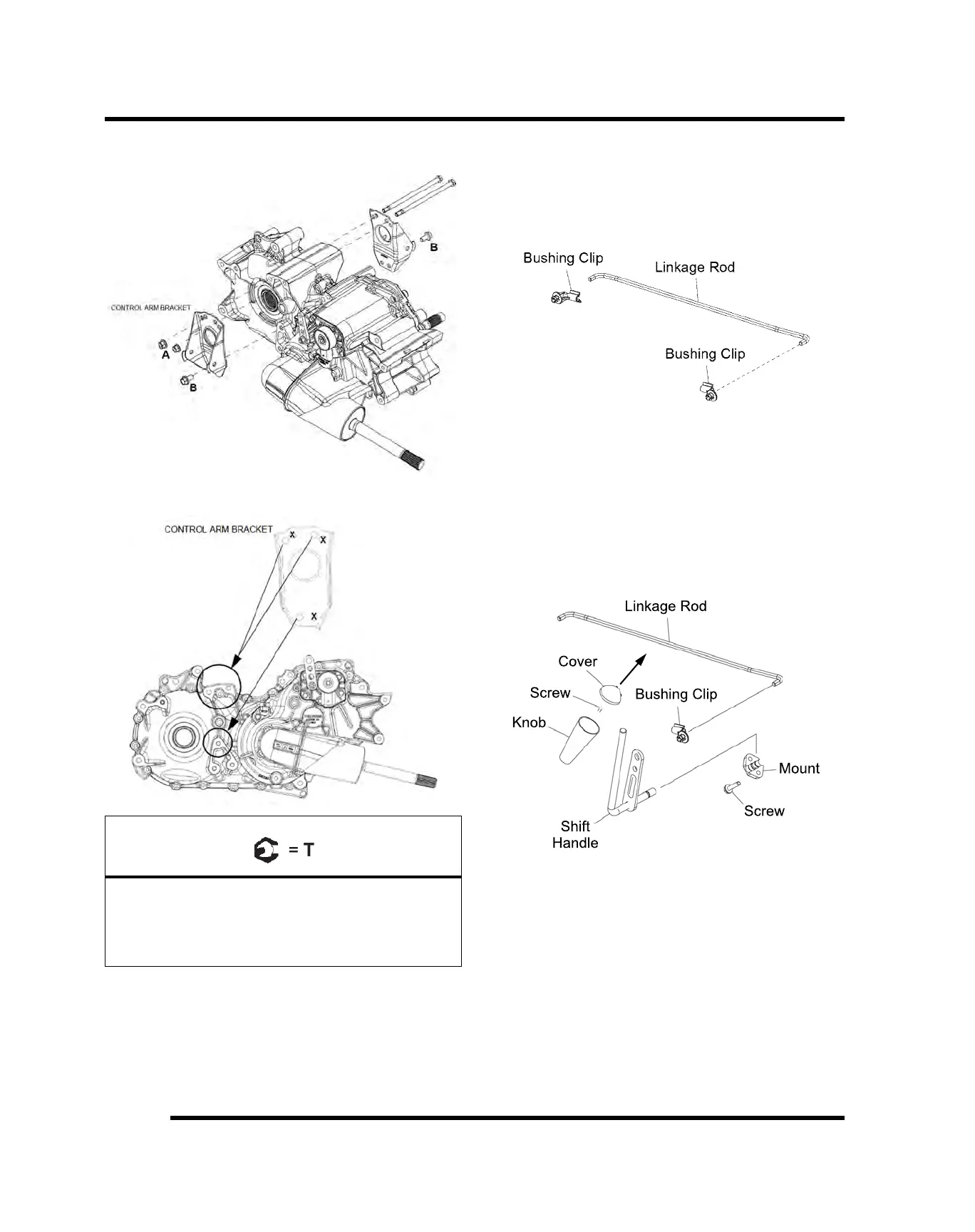

Transmission Control Arm Bracket Mounts
Transmission Control Arm Bracket Mounts
A = Bracket Mounting Bolts:
37 ft-lbs (50Nm)
B = Bracket Fasteners:
37 ft-lbs (50Nm)
Shift Linkage Inspection
1. Inspect shift linkage rod bushing clips and replace if
worn or damaged. Lubrication of rod ends is not
required.
Gear Selector Removal
1. Push linkage rod out of bushing clip to remove.
2. Remove screws attaching gear selector mount to
frame.
3. Remove gear selector handle by prying the cover off
and removing the retaining screw.
