LIGHTING
High Beam Headlight Bulb Replacement
CAUTION
Do not service while headlight is hot. Serious burns
may result. Protect lamp during install.

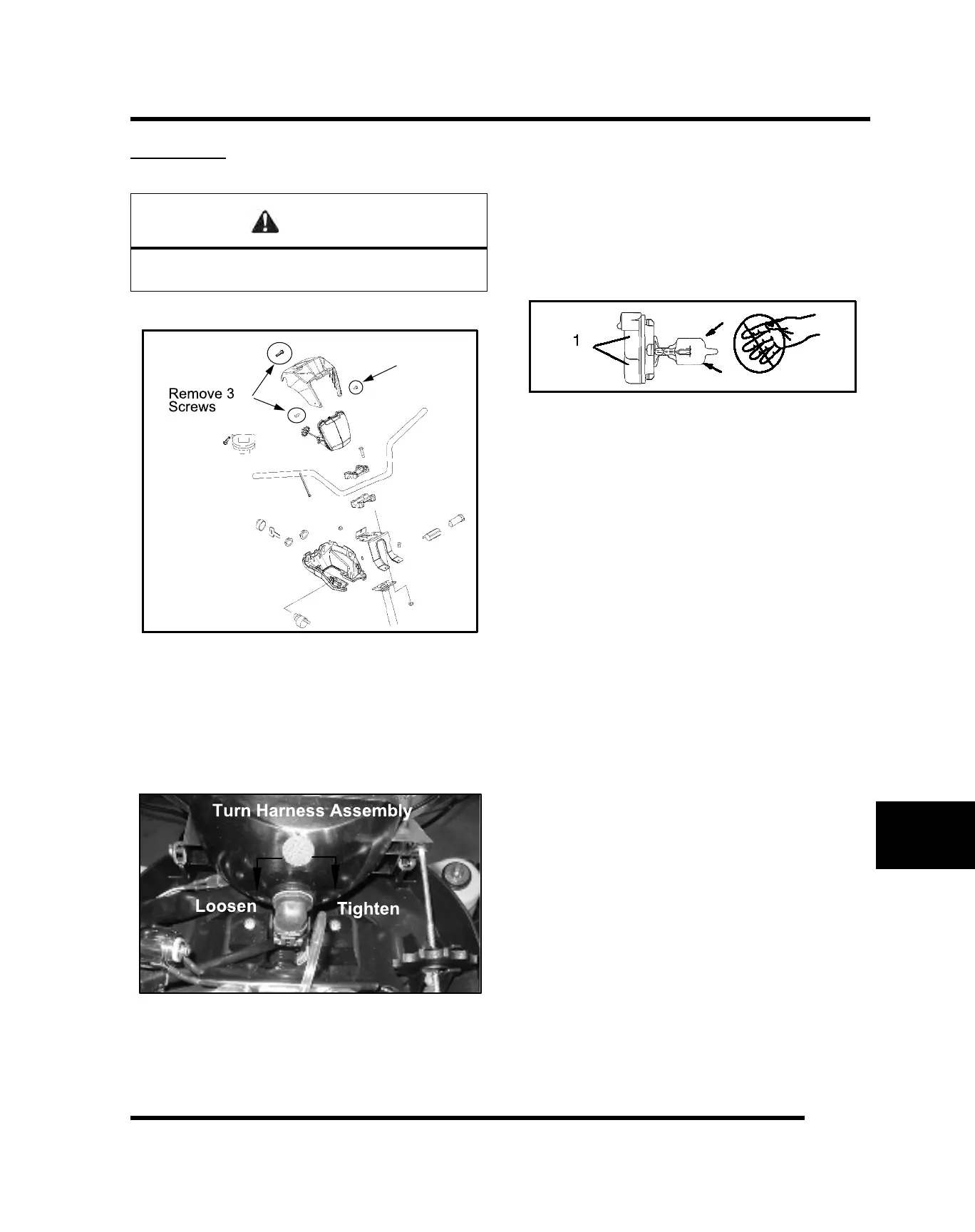

1. Remove three Phillips screws on the headlight pod.
2. Lift pod cover up.
3. Disconnect instrument cluster harnesses from the
back of the speedometer.
4. Turn the headlight lamp socket counter-clockwise
and remove.
5. Carefully remove headlamp bulb from housing.
6. Remove the headlamp and replace with a new
headlamp.
NOTE: Do not touch the lamp with bare fingers.
Hold the plastic part (1) of the lamp. Oil from your
skin leaves a residue, causing a hot spot that will
shorten the life of the lamp.
7. Install the new headlamp and harness assembly into
the headlight assembly. Turn the headlight harness
clockwise to secure the headlamp into place.
