FUEL SENDER
Testing
1. Drain the fuel tank and remove it from the atv.
2. Set the fuel tank on a flat surface.

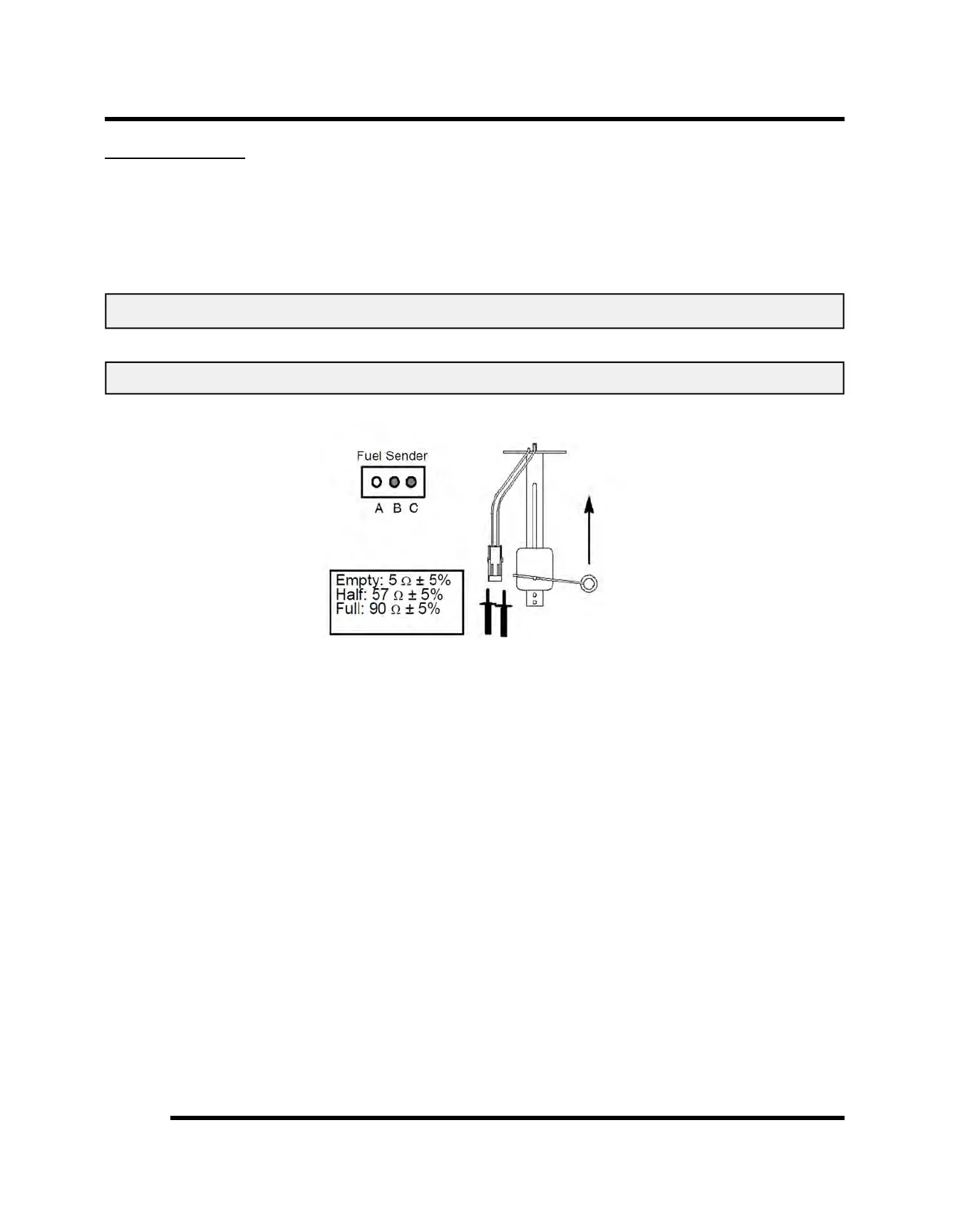

3. Hook up an ohm meter to the fuel sender harness Violet/White wire (B) and Brown wire (C).
4. With the sender float in the empty position and compare to specification.
Fuel Sender - Empty: 5 Ω ± 5%
5. Slowly tilt invert the tank so that gravity moves the sender float to the full position and compare to specification.
Fuel Sender - Full: 90 Ω ± 5%
6. If the readings are not to specification, or if the reading is erratic or LCD display “sticks”, check the following before
replacing the fuel pump assembly.
• Loose float
• Float contact with tank
• Bent Float Rod
If none of the conditions exists, the sender assembly is faulty. Fuel pump assembly replacement is required.
