95
ESP-LXME Controller
Install the Controller
The ESP-LXME controller mounts to a wall (or suitable mounting
surface).
NOTE: An optional metal cabinet (LXMM) and pedestal
(LXMMPED) are also available for the ESP-LXME controller. If you
intend to use those options, follow the installation instructions for
those products before installing the controller.
WARNING: This controller must be installed in compliance with
local electrical codes.
Select Location for Controller
Select a location that:
Is easily accessible
Allows for comfortable viewing
Has a at wall surface
Near 120 V or 230/240 V AC power source (depending on model)
Is safe from potential vandalism
Is outside the range of operating sprinklers

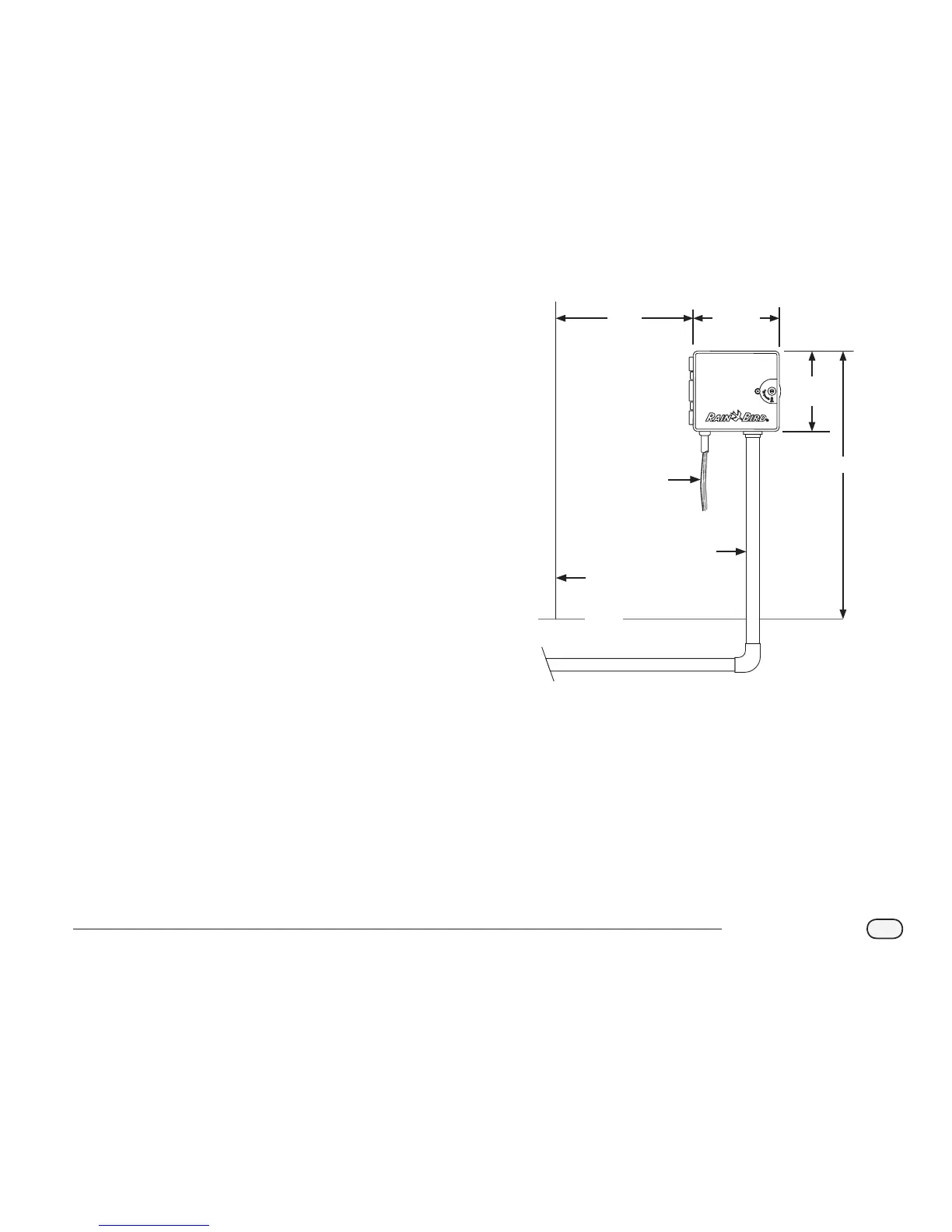

15 in.
(38,1 cm)
14.32 in.
(36,4 cm)
12.69 in.
(32,2 cm)
Eye Level
Cabinet Depth
5.5 in (14 cm)
Depending on model
120 or 230/240 V AC
wiring in conduit
Field wiring
in conduit
Wall
Grade
Select Controller Location
