Rain Bird ESP-LXME User Manual

75
ESP-LXME Controller

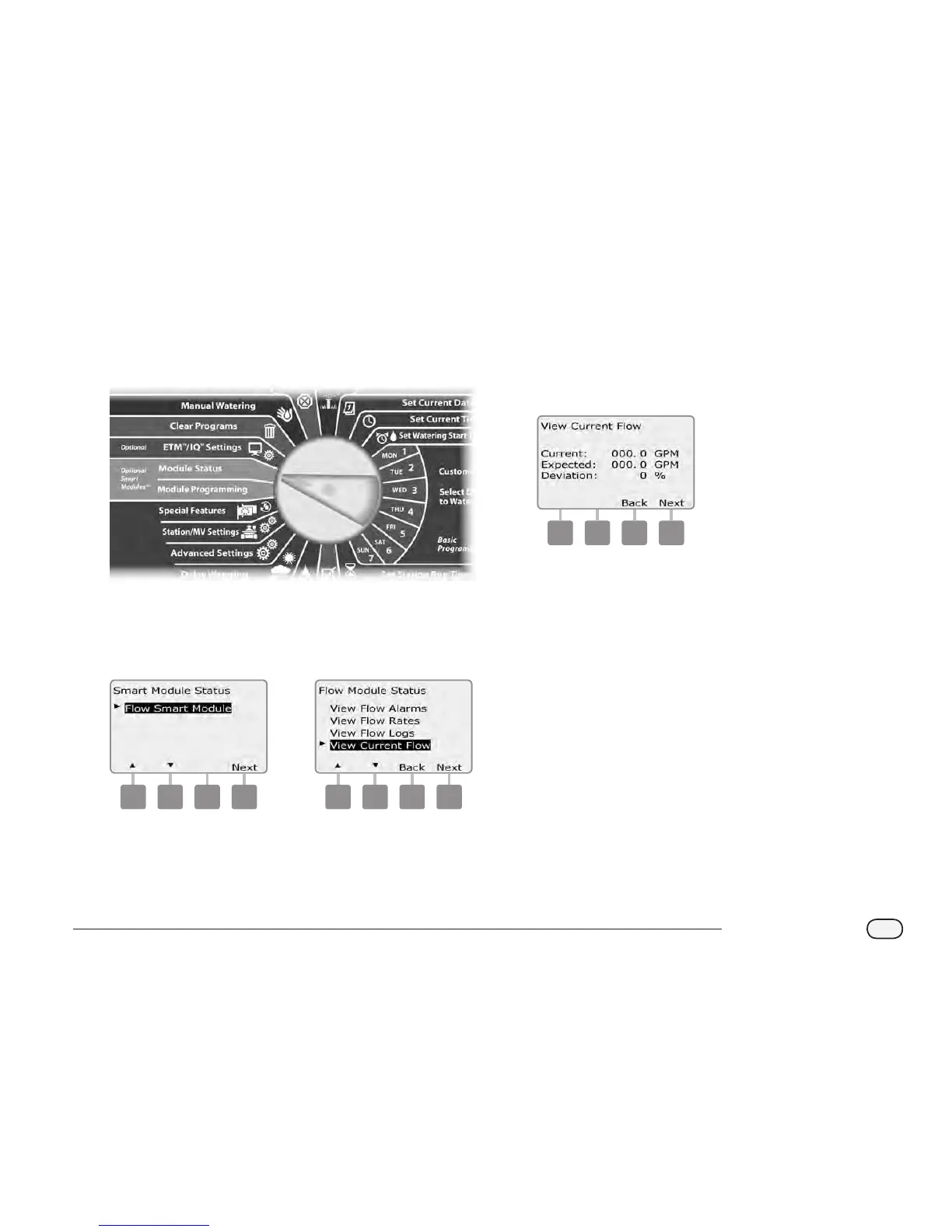

View Current Flow
Occasionally it may be useful to check the current ow rate and how it
compares to previously learned or user input ow rates.

Turn the controller dial to Module Status.
A
The Smart Module Status screen appears with Flow Smart Module
selected; press Next.
B
The Flow Module Status screen appears. Press the Down Arrow
button to select View Current Flow; then press Next.
1 2
C
Current and expected ow will display.

NOTE: Expected ow is from previously user-entered or learned
ow. The deviation or percentage comparison of current ow to
expected ow will display so you can see how close the system
is to a SEEF or SELF condition (see Setting Up SEEF and SELF for
more details).
3
