ESP-LXME Controller
Set Station Flow Rates Manually
Allowing the controller to Learn Flow automatically is the easiest, most
accurate method to enter ow readings, but ow sensing hardware and
the Flow Smart Module are required for this. However, even if you do
not have ow sensing hardware installed you can manually enter ow
rates for one or more stations or ow zones before or after an automatic
Learn Flow exercise.

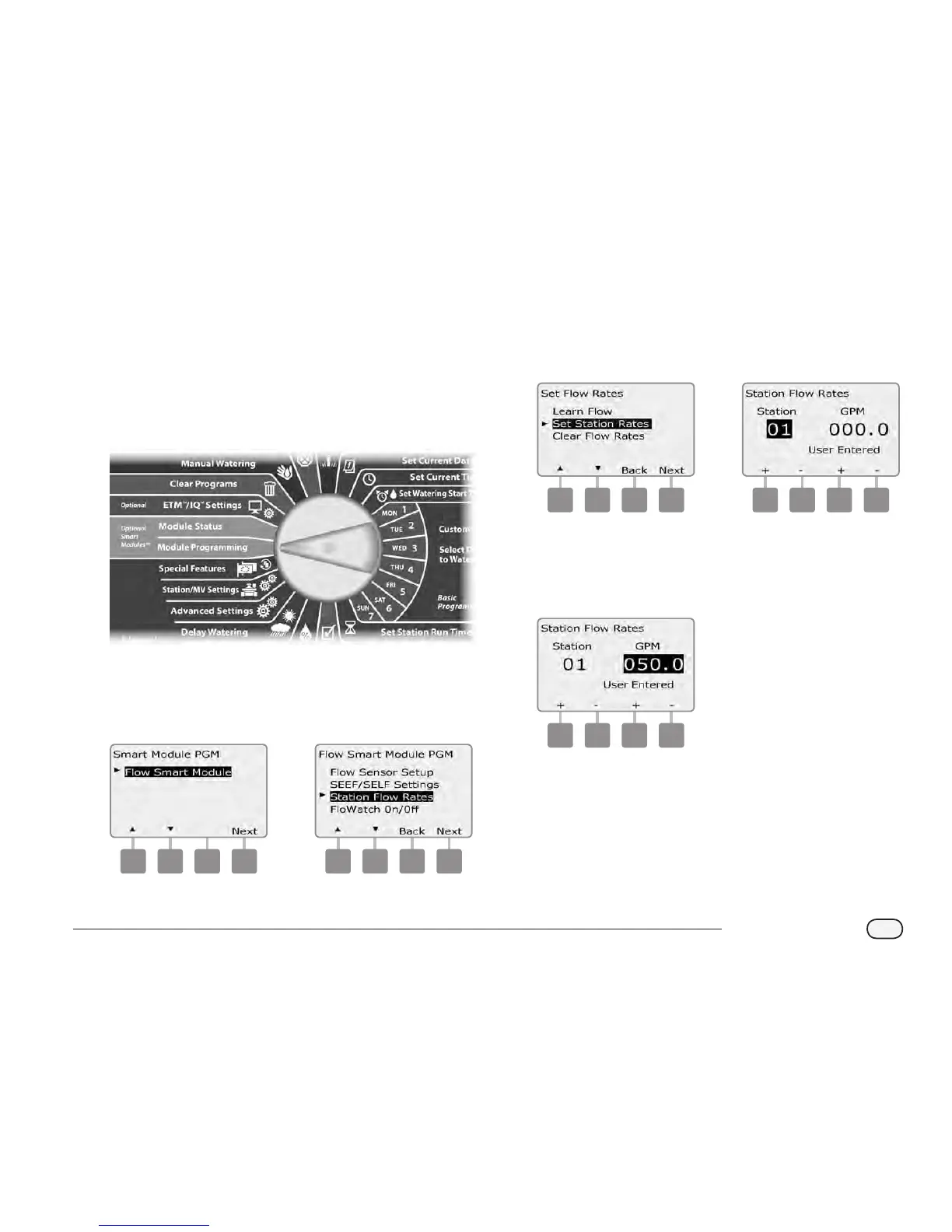

Turn the controller dial to Module Programming.
A
The Smart Module PGM screen appears with Flow Smart Module
selected; press Next.
B
The Flow Smart Module PGM screen appears with Set Flow Rates
selected; press Next.
1 2
C
The Set Flow Rates screen appears. Press the Down Arrow button
to select Set Station Rates; then press Next.
D
Press + and – (buttons 1 and 2) to select the desired station
number; then press - (button 4).
3 4
E
Press + and – (buttons 3 and 4) to enter the desired Flow Rate
for that station. Press - (buttons 2 and 4) to navigate between the
station and ow rate elds.
Press and HOLD buttons to accelerate settings for GPM.
5
Repeat this process to manually set up Flow Rates for additional
stations as desired.
