Rain Bird ESP-LXME User Manual

96
ESP-LXME Controller
Access Controller Cabinet

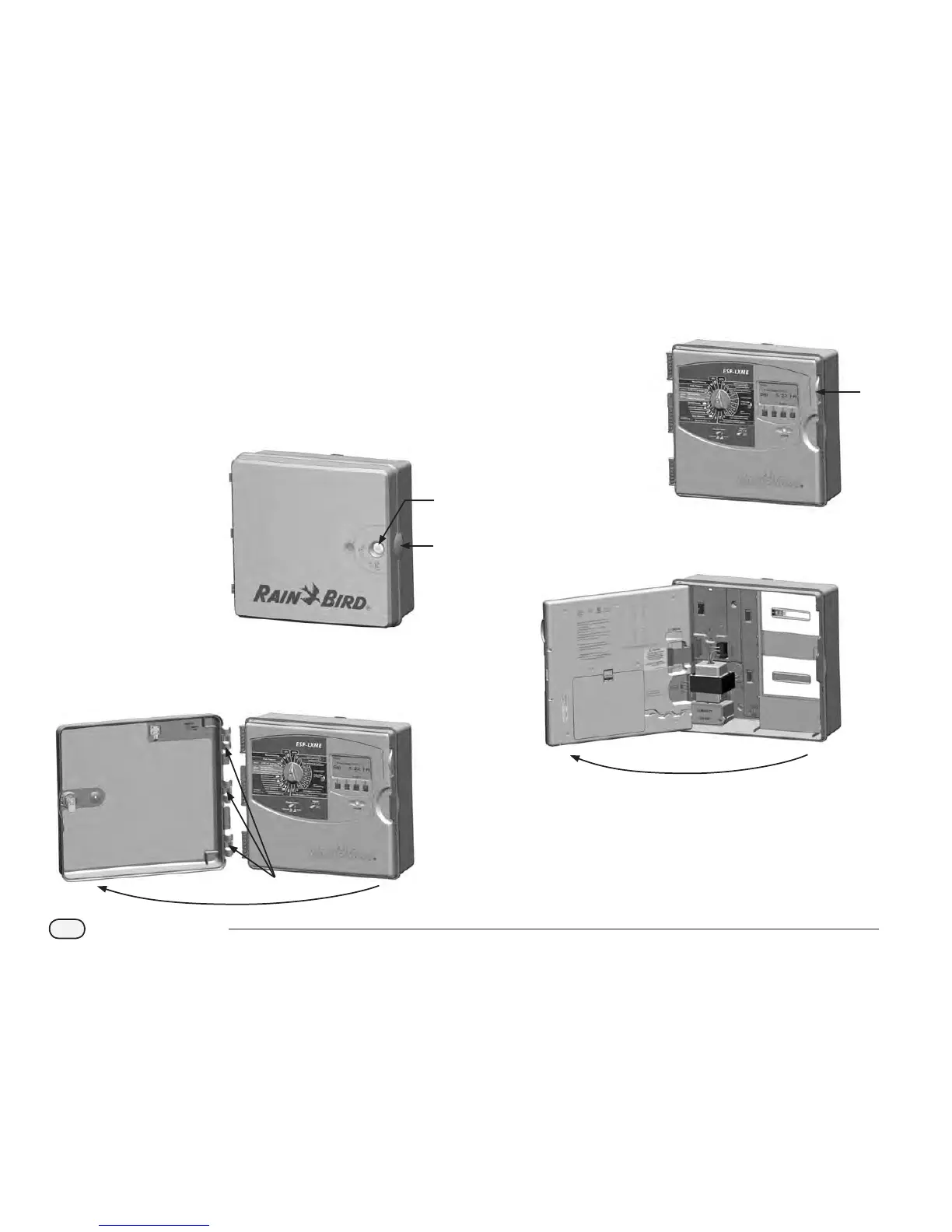

Remove Cabinet Door and Front Panel
A
The controller comes with an outer door lock to deter vandalism
and prevent unauthorized access to controller operations. If
necessary, unlock the cabinet door using the supplied key.
B
To open the controller door: grasp the crescent-shaped handle on
the right-hand-side of the outer cabinet.
1
2
C
Pull it towards you to open the door, swinging it to the left.
D
To remove the door, carefully pull the door away from the cabinet
until the door hinges separate from the plastic posts.
3
4
E
To open the controller front panel: grasp the crescent-shaped
handle on the right-hand-side of the front panel.
5
F
Pull it towards you to open the front panel, swinging it to the left.
6
