43
ESP-LXME Controller
Set Up SimulStations
TM
The ESP-LXME controller defaults to operating a single station at a time.
Systems with larger water sources may support operating two or more
stations simultaneously.
SimulStations control the maximum number of stations that are
allowed to operate at the same time. The number of SimulStations
available depends on the number of station modules that are installed.
Maximum SimulStations
Number of Installed
Station Modules
Maximum Number of
ESP-LXME SimulStations
1 2
2 4
3 5
4 5
NOTE: The controller will simultaneously operate a maximum of
2 stations on any single station module.
Set SimulStations
TM
for Program

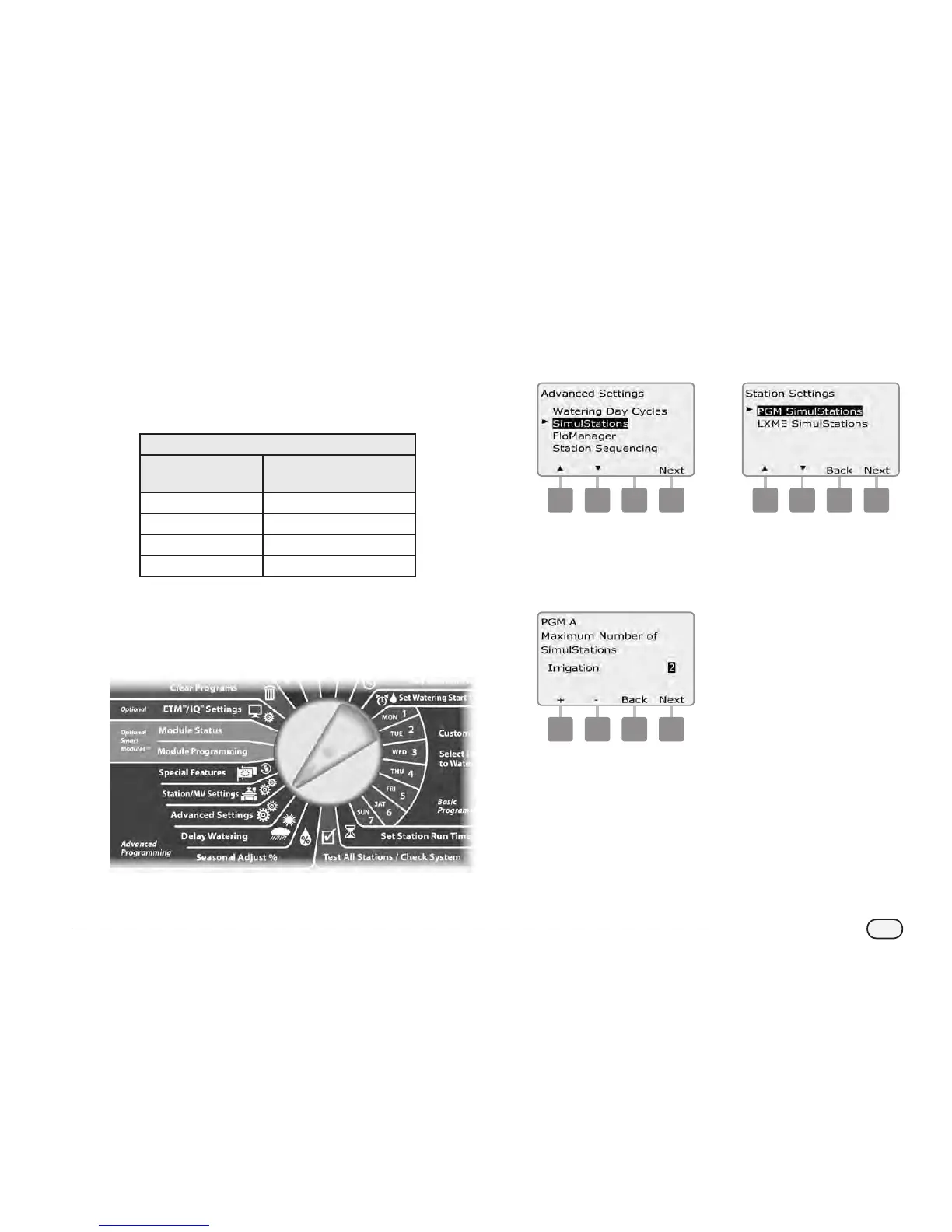

Turn the controller dial to Advanced Settings.
A
The Advanced Settings screen appears. Press the Down Arrow
button to select SimulStations; then press Next.
B
The Station Settings screen appears with PGM SimulStations
selected; press Next.
1 2
C
The Maximum Number of SimulStations screen appears. Press the
+ and – buttons to set the maximum number of irrigation stations
(from 1 to 5) that can operate simultaneously for this program;
then press Next.
3
Change the Program Select switch and repeat this process to set
the Maximum Number of Stations for other programs as desired.
