8 HSB Series Chartplotter
Chartplotter Display Options
Set up options allow you to customise the chart by choosing what is, or is
not displayed, how it is displayed (including language and units),
heading mode and how the chartplotter operates with other HSB units.
You can also view the cursor position and a variety of data from other
equipment, e.g. speed, heading, depth, wind and tide information in a set
of user-selectable data boxes. The cursor box and user-selected data
boxes can be moved around the screen and they can be turned on or off.

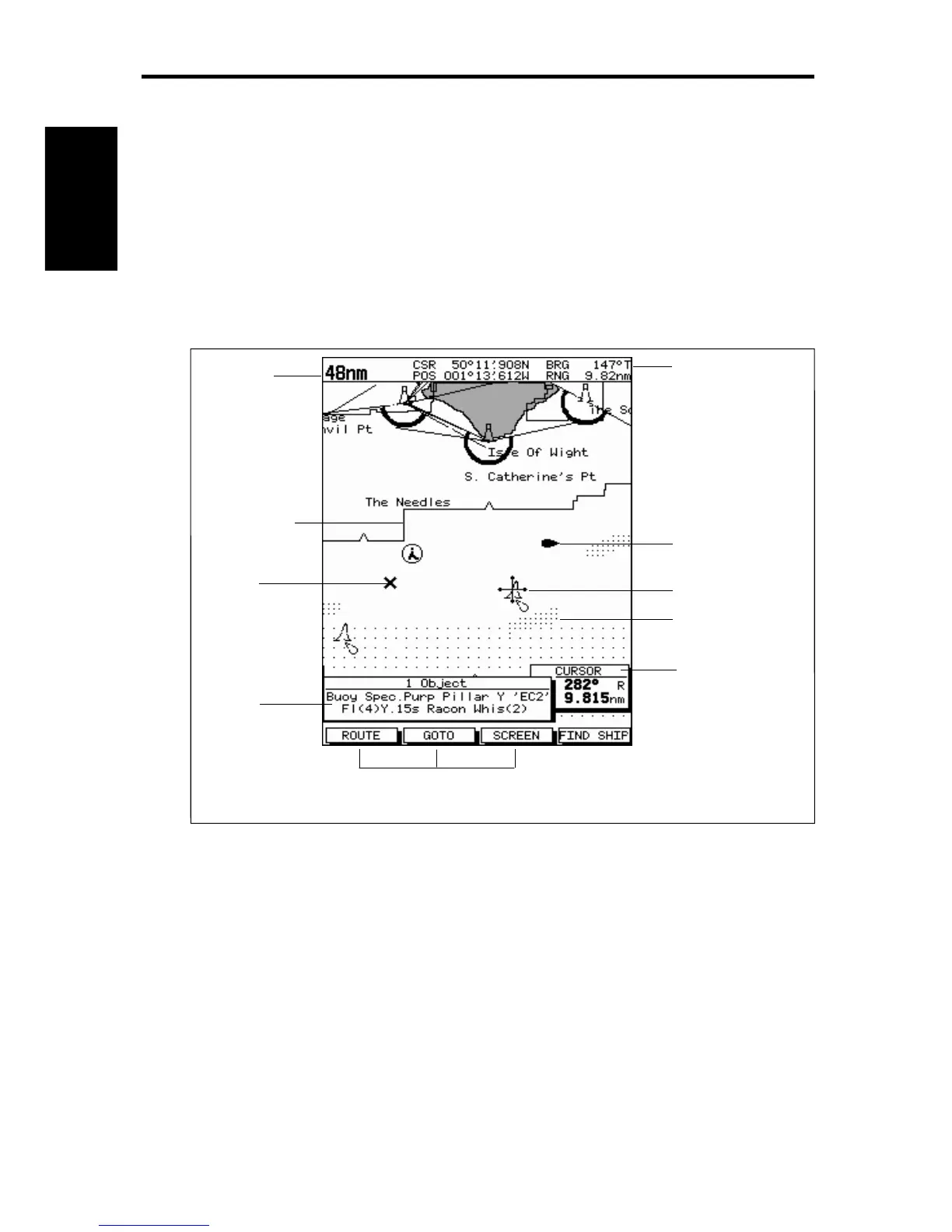

Status Bar
Vessel Position
Cursor -
selecting chart object
Cursor position box
Shows the current
cursor position as
either Range/Bearing
or Lat/Long. You can
move this box to your
preferred position on
the screen or turn it off.
Waypoint
Object data box -
for object selected
by cursor
Default soft key labels
These can be turned off: press any soft key to redisplay them.
Different labels are displayed when you press a key.
Depth Area
Chart Range
Chart Boundary
D4275-1
Display options are provided in System Set Up and Chart Set Up as
described in Chapter 5. In addition Screen Presentation Options,
decribed in Chapter 2 are provided to switch:
• Cursor Box and Databoxes On/Off
• Chart Grid On/Off
• Custom Chart Details On/Off
Note: When you turn the display off and on again, most settings are
retained, including the chart scale, gain setting, and data box positions.
