Chapter 2 Command System RIGOL
DS1000Z Programming Guide 2-133
:WAVeform Commands
The :WAVeform commands are used to read the waveform data and its related settings.
:WAVeform:MODE
is used to set the reading mode of the waveform data. In different mode, the definition of each parameter
is different, as shown in Figure 2-1 and Figure 2-2.

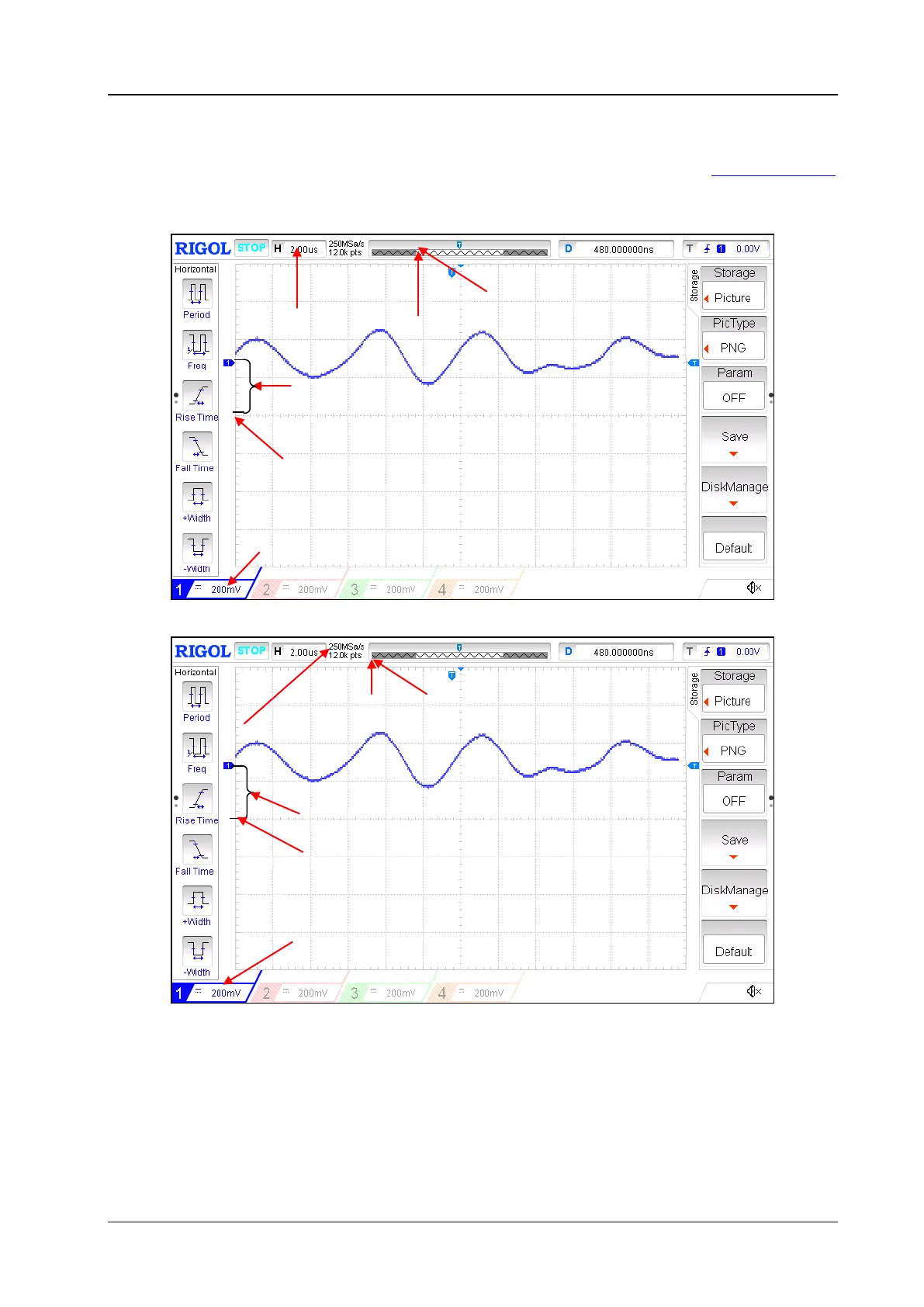

Figure 2-1 Parameter Definitions in NORMAL Mode
Figure 2-2 Paramter Definitions in RAW Mode
XORigion
YORigion
YREFerence
YINCrement=Verticalscale/25
XINCrement=TimeScale/100
XREFerence
XORigion
YORigion
YREFerence
YINCrement=Vscale/2
XINCrement=1/SampleRate
XREFerence
