3) Connecting sizes and position of connections

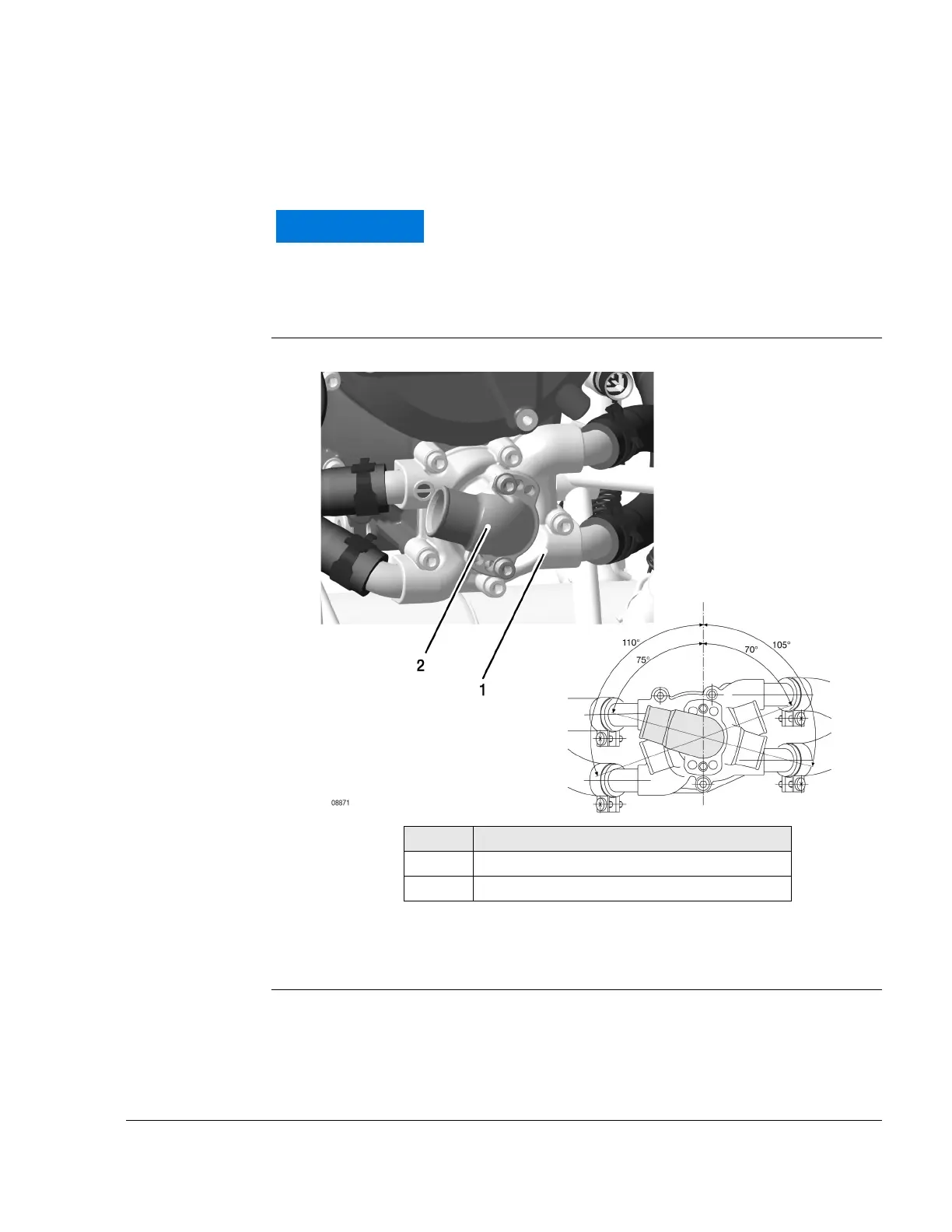

General note See Fig. 6.
Graphic Connecting sizes
Water inlet elbow: Outer diameter 27 mm (1.06 in.)
Slip-on length: max. 19 mm (0.75 in.)
Fig. 6
The hoses must be fixed with appropriate clips to pre-
vent loss, e.g. with spring type hose clips, such as
those used for the coolant hoses between the water
pump and cylinder. Clips of this type have performed
well in the field.
Part Function
1 Water pump housing
2 Water inlet elbow
