INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 0
79-00-00
Page 4
January 01/2012
Graphic

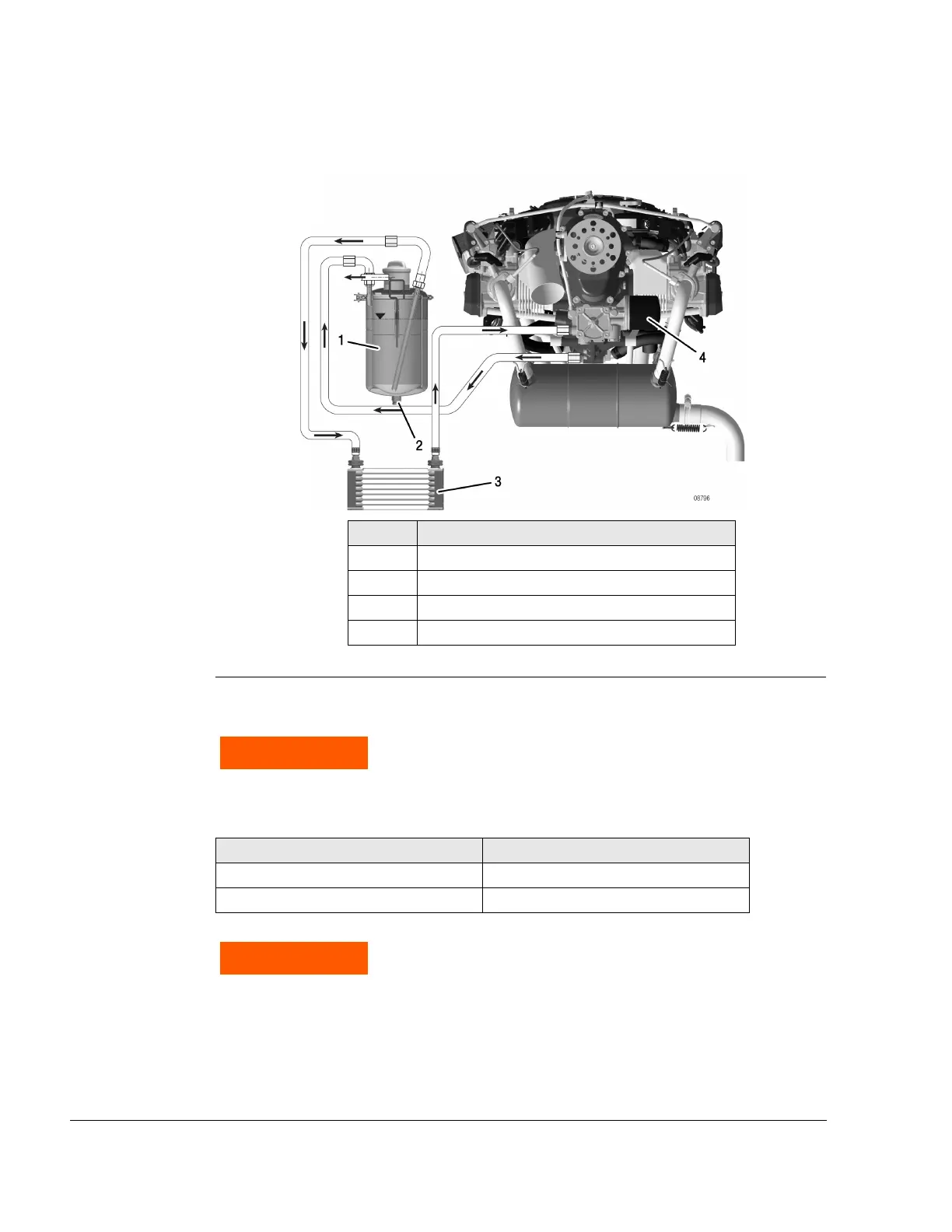

Oil system
Fig. 2
1.2) Operating limits
General note
Part Function
1 Oil tank
2 Oil drain screw
3 Oil cooler
4 Oil filter
Non-compliance can result in serious injuries or death!
The lubrication system must be designed such that the
permissible operating temperatures and maximum val-
ues are not exceeded.
Operating limits Manual
Oil pressure See OM 912 i Series, section 2.1
Oil temperature See OM 912 i Series, section 2.1
Non-compliance can result in serious injuries or death!
At operation below nominal temperature, formation of
condensate in the oil system might negatively affect oil
quality.
