Rotax 912 i series Installation Manual

d05781.fm
INSTALLATION MANUAL
BRP-Powertrain
Effectivity: 912 i Series
Edition 1/Rev. 2
24-00-00
Page 10
January 01/2014

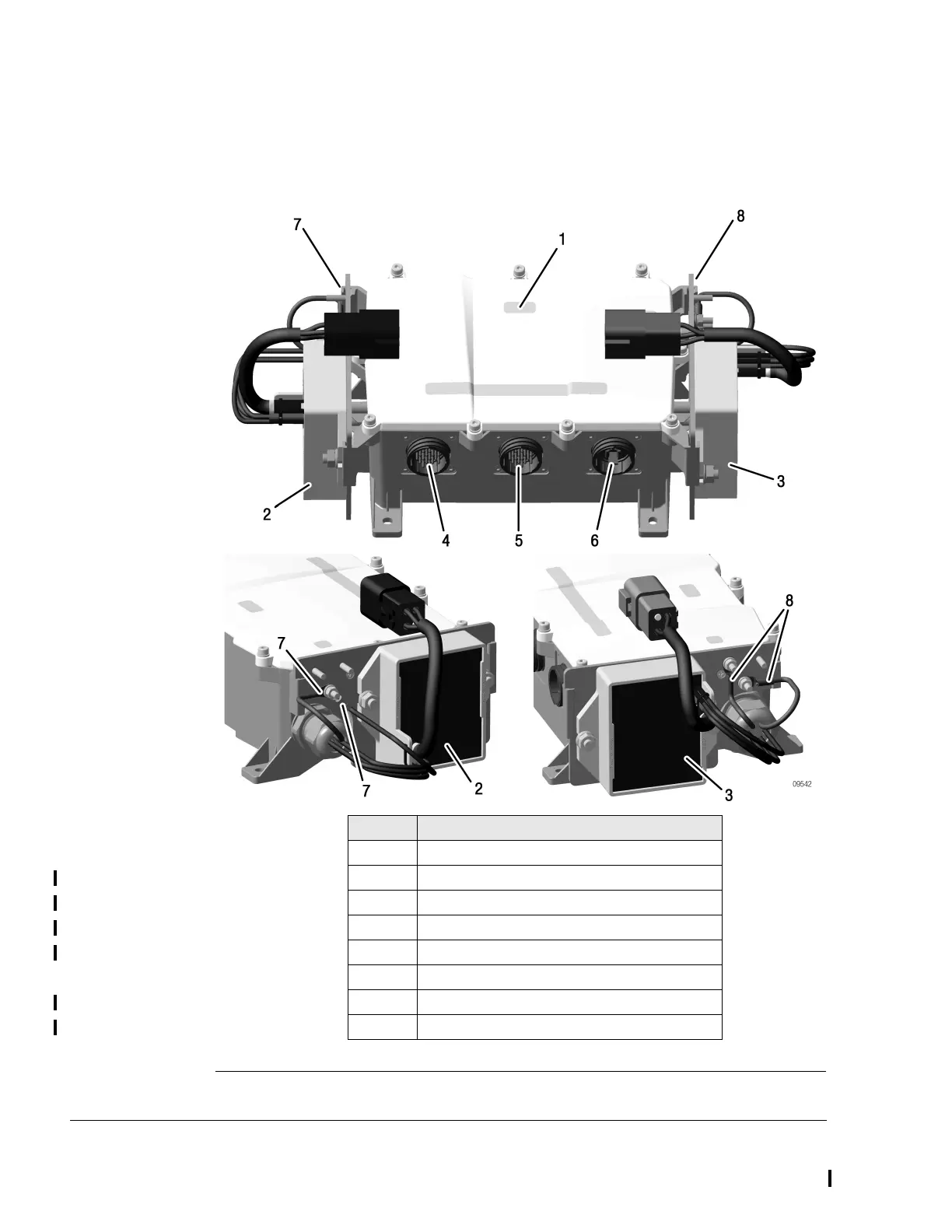

2.2) FUSE BOX connections
Graphic Connections
Fig. 3
Part Function
1 FUSE BOX assy.
2 Rectifier regulator A (black plug)
3 Rectifier regulator B (grey plug)
4 Plug connection X1 (LANE A)
5 Plug connection X2 (LANE B)
6 Plug connection X3
7 EMS ground (Generator A)
8 Aircraft ground (Generator B)
