1) Engine components, engine views, cylinder designation
General note See Fig. 2 to Fig. 4
PTO power take off side
MS magneto side
A points of attachment (for engine transport) - centre of gravity
P zero reference point for all dimensions
NOTE: Allow ± 1 mm on all stated dimensions as manufacturing
tolerance.
x, y, z axes for system of coordinates
Cyl. 1 Cylinder 1 Cyl. 3 Cylinder 3
Cyl. 2 Cylinder 2 Cyl. 4 Cylinder 4

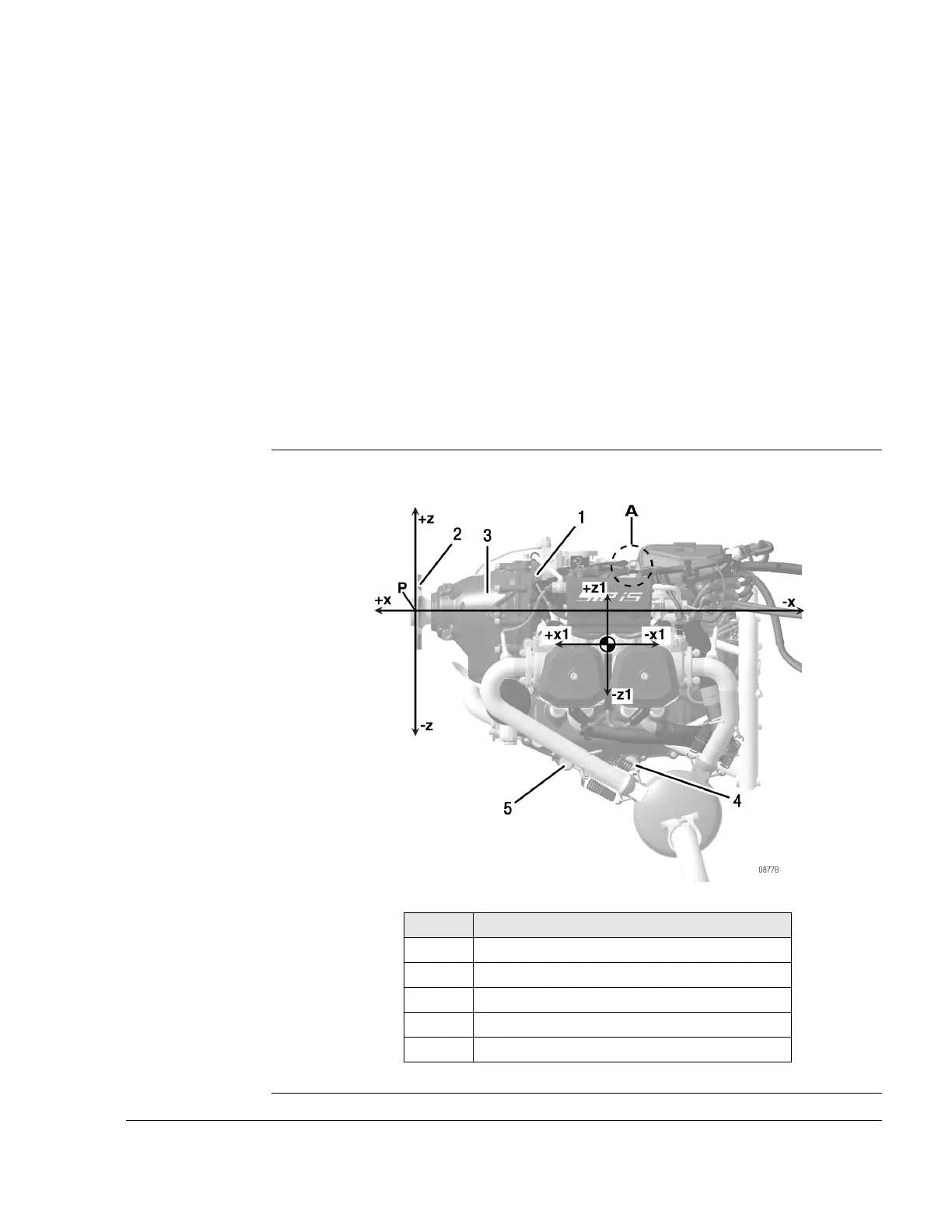

Side view
Fig. 2
Part Function
1 Engine number
2 Propeller flange
3 Propeller gearbox
4 Connection for return line (tractor)
5 Connection for return line (pusher)
MS magneto side
PTO power take off side
