Installation instructions
bolts are completely tightened. Tighten the set screw per the appropriate value shown
in Table 46 according to the coupling size.
7.28 Piping connections
To avoid transmitting stress from piping connections between unit and plant, pipes must be laid
so as not to generate compressive stresses or tensile strains in the event of expansions or
contractions due to temperature changes. Steel pipes expand approx. 1 mm per metre per
100°C.
Johnson Controls Denmark recommends the pipe layout shown in example 2 of the sketch,
Fig. 85. Example 1 illustrates a pipe layout which is too rigid.

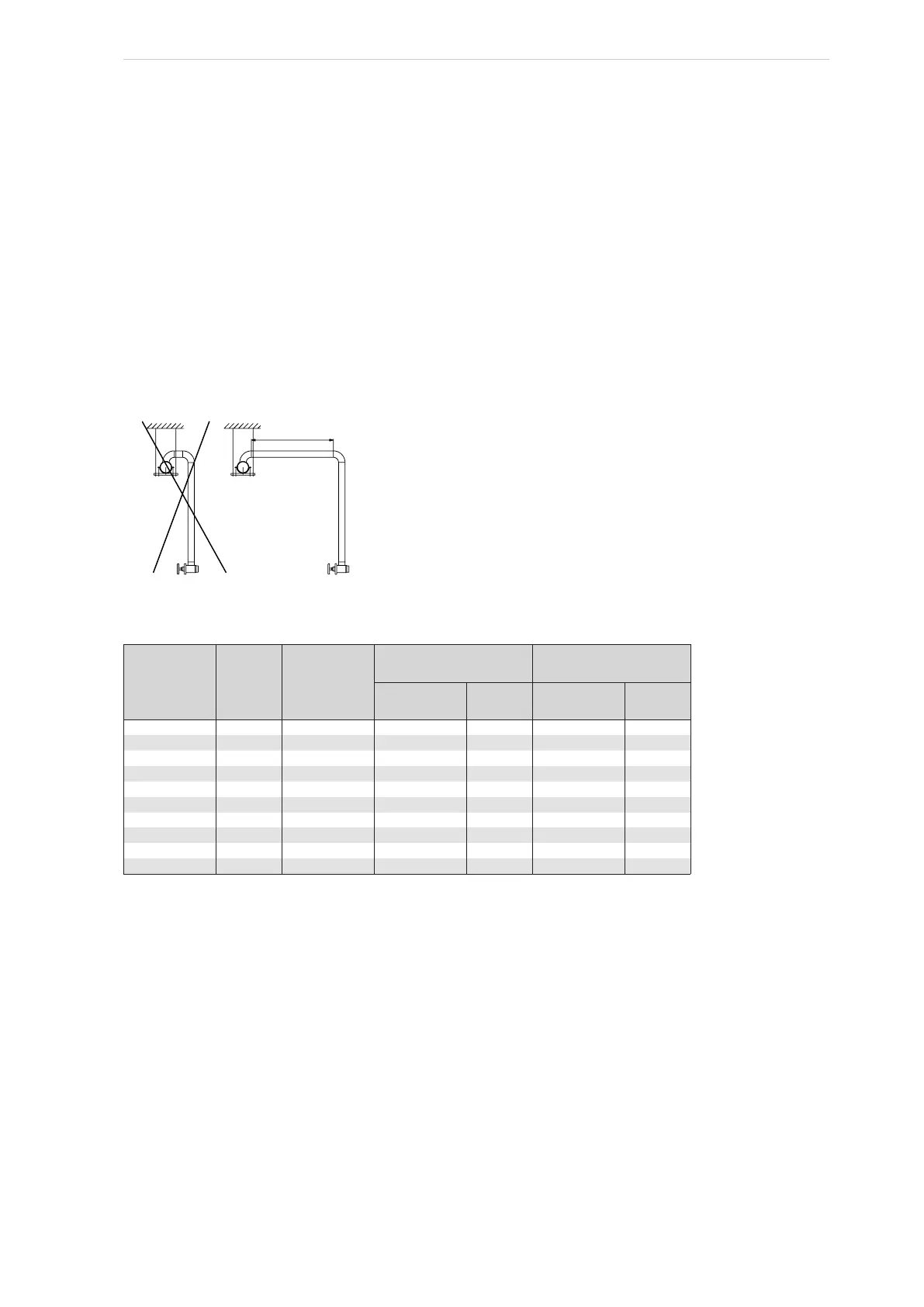

Fig. 85: Pipe layout
Sabroe
unit
Reference
model
RWF II
Compressor
model
Discharge flange to
separator flange
Suction flange
Bolt size Torque
(Nm)
Bolt size Torque
(Nm)
SAB 193 S 100 SGC 1913 M20 x 2.5 190 M20 x 2.5 298
SAB 193 L 134 SGC 1918 M20 x 2.5 190 M20 x 2.5 298
SAB 233 S 177 SGC 2313 M20 x 2.5 217 M20 x 2.5 298
SAB 233 L 222 SGC 2317 M20 x 2.5 217 M20 x 2.5 350
SAB 233 E 270 SGC 2321 M20 x 2.5 217 M22 x 2.5 350
SAB 283 S 316 SGC 2813 M22 x 2.5 312 M22 x 2.5 350
SAB 283 L 399 SGC 2817 M22 x 2.5 312 M22 x 2.5 400
SAB 283 E 480 SGC 2821 M22 x 2.5 312 M24 x 3.0 400
SAB 355 S 496 SGC 3511 M24 x 3.0 325 M30 x 3.5 475
SAB 283 X 546 SGC 2824 M22 x 2.5 325 M24 x 3.0 400
Table 47: Torque requirements
Note: Based on:
a. Gaskets-Garlock(R) Blue-Gard(R) 3300 and KLINGERSIL C-4430 (suction flange)
b. Bolts-class 8.8 hex head bolts and stud bolts (suction flange), lightly oiled and clean
Chapter 5. Physical and connection data includes dimension data and piping connections
descriptions.
Refrigerant connection to compressor and unit
The connecting pipe must be welded onto a connecting branch on a stop valve. In order to pro-
tect the stop valve when welding, remove the insides of the valve. Do not put the insides back
into the valve until the weld has cooled off, see the instructions from the valve supplier.
The welding must be carried out according to the specifications and standards applying to the
plant in question.
