Engineering manual - SAB 193-233-283 S A-frame (including ATEX)
008831 en 2022.02
159/175
Transport instructions
14.5 Loading instructions
Warning!
This screw compressor unit may be top-heavy. Use caution when rigging and handling to pre-
vent the unit from tipping.

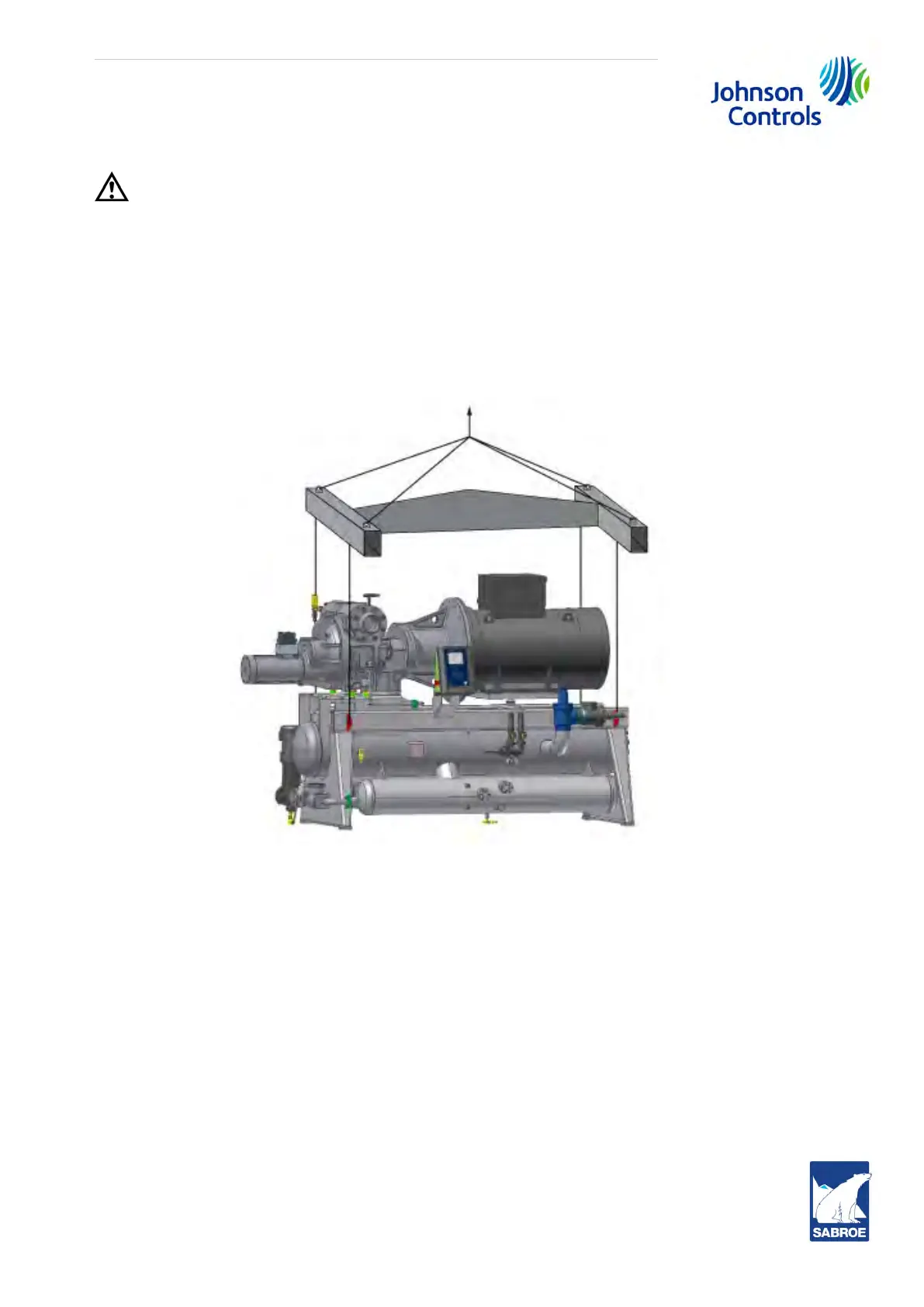

When unpacked, the unit can be lifted with a crane. The unit must be lifted in the lifting eyes
on the unit. Never lift in the lifting eyes on the compressor or the motor separately.
If a motor is mounted, appropriate adjustment must be made in the lifting point to compensate
for the added motor weight. Adjustment of the lifting point must also be made for any extra
weight added to the standard unit such as an external oil cooler. The extra weight will affect the
centre of balance.
Fig. 89
As a minimum the lifting capacity of the crane and the loading capacity of the chains, straps,
lifting eyes and shackles must correspond to the weight of the unit + the weight of the electric
motor.
14.6 Preparations before lifting
Before lifting the unit, make sure that straps/chains are properly secured to lifting eyes/
shackles and that the lifting equipment is in good condition.
14.7 Loading
Be very careful not to damage the unit when loading it. Note in particular that the instrumenta-
tion of the unit is very vulnerable to impacts.
